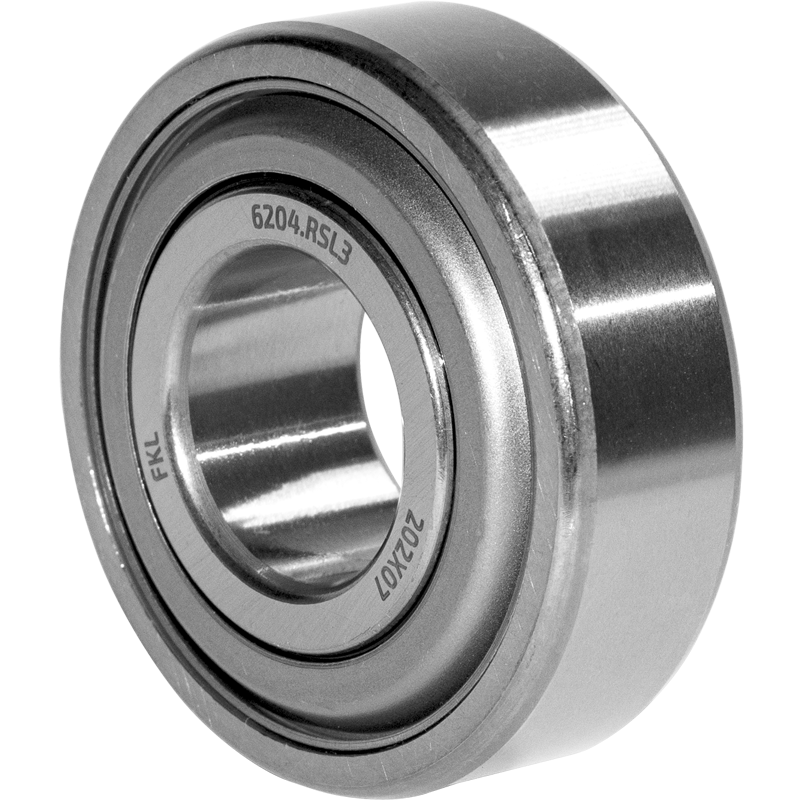

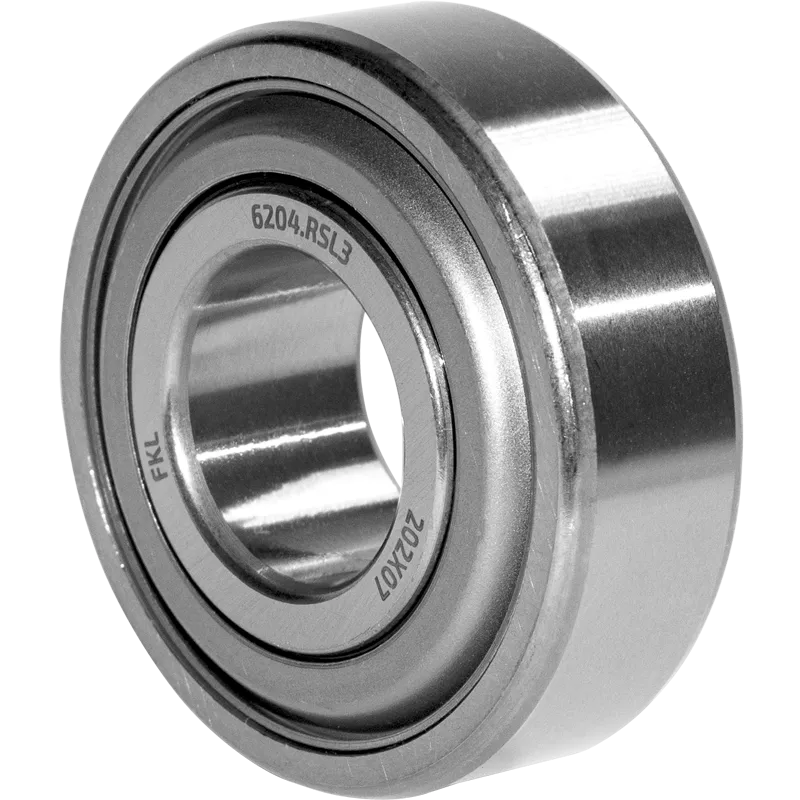

6204-RSL3

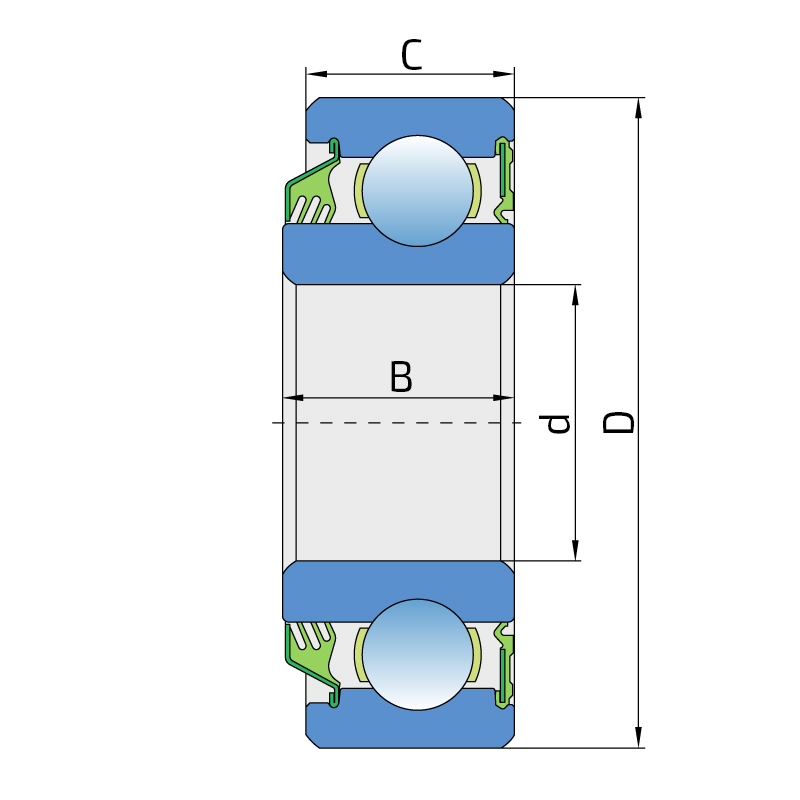

Technical specifications
| d | Bore diameter | 20 mm |
| D | Outside diameter | 47 mm |
| C | Width outer ring | 15 mm |
| B | Width inner ring | 16.5 mm |
| kg | Mass | 0.19 kg |
| Cdyn | Dynamic load rating | 12.8 kN |
| Co | Static load rating | 6.2 kN |
| Pu | Fatigue load limit | 0.26 kN |

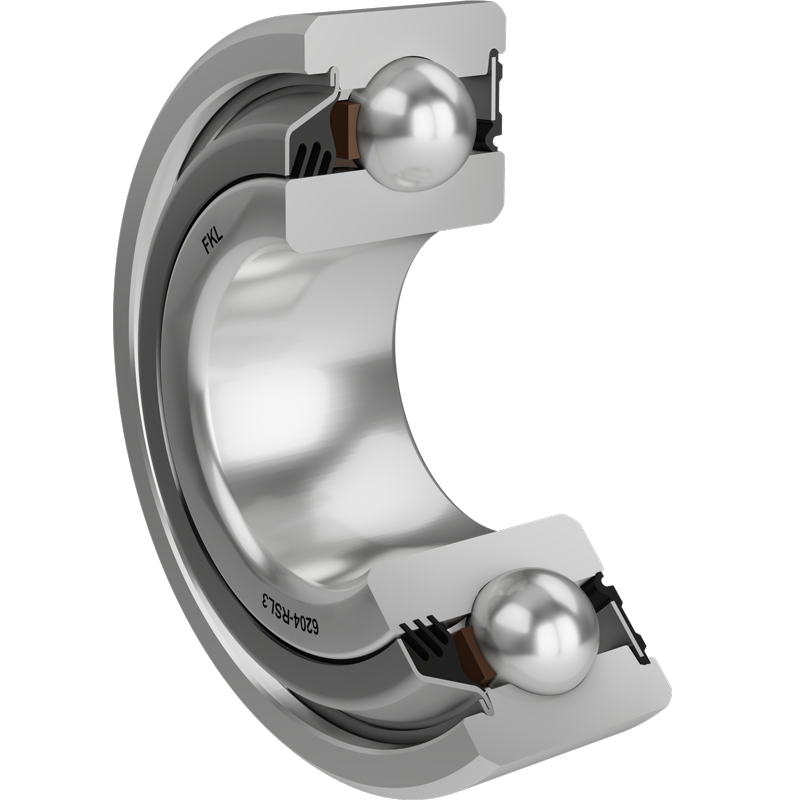

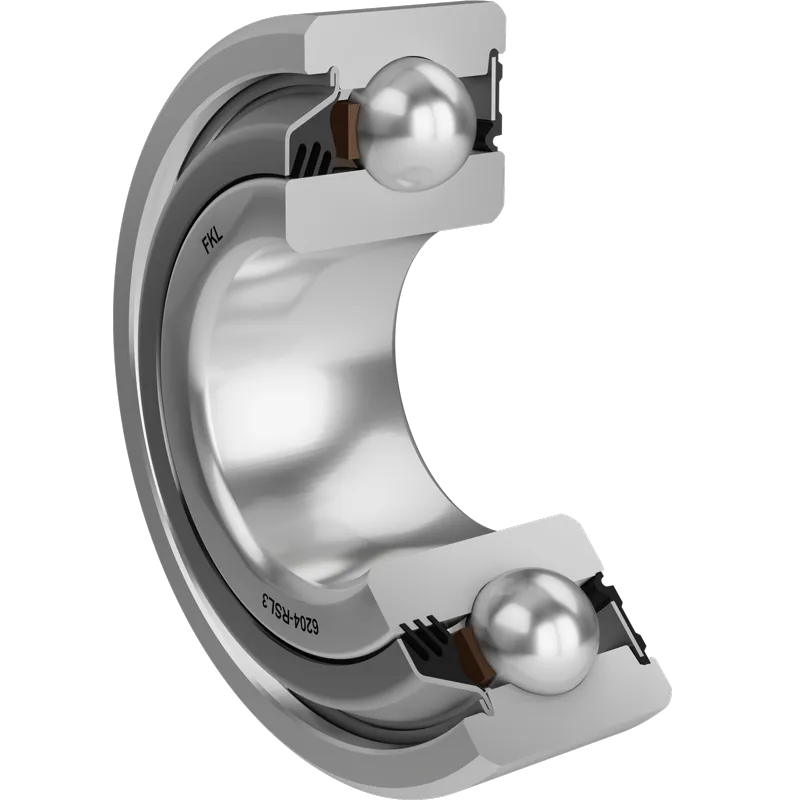

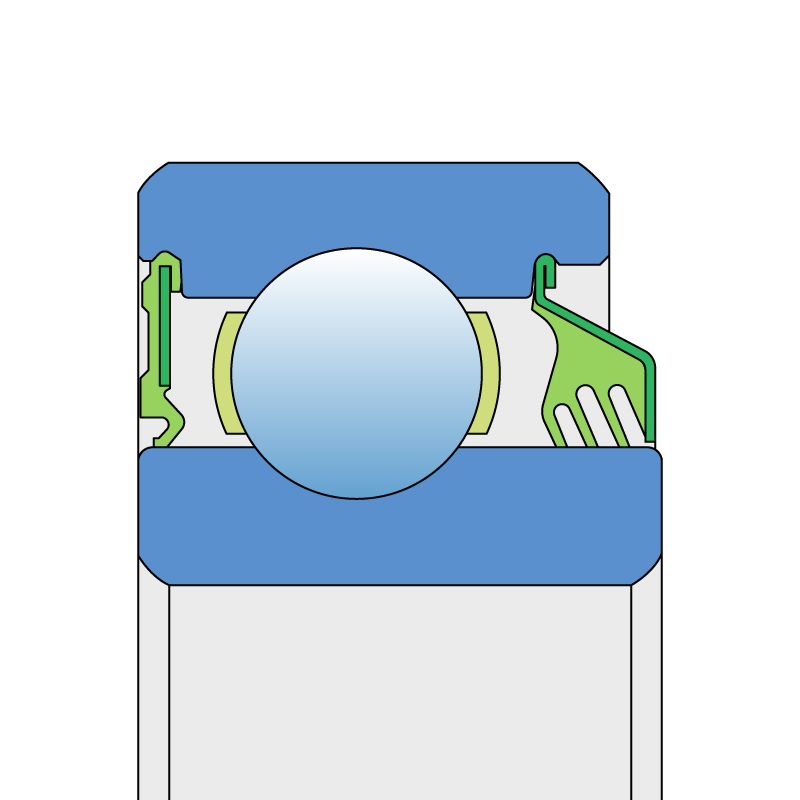

RS SEAL / T SEAL
RS seal on the base side and 3-lip seal on the front side which is exposed to contaminants.
The 3-lip seal on the front side protects the bearing from contaminant penetration.
Cross references
| MZURI | 40089 |
| POTTINGER | 400.524 |
| POTTINGER | 400524 |
| OTICO | 009620.00 |
