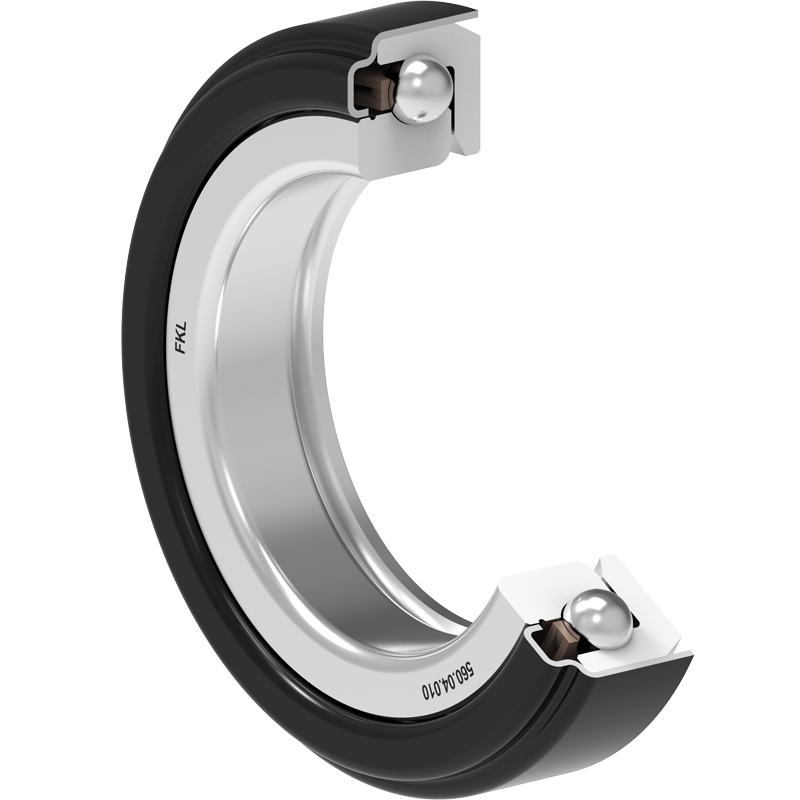

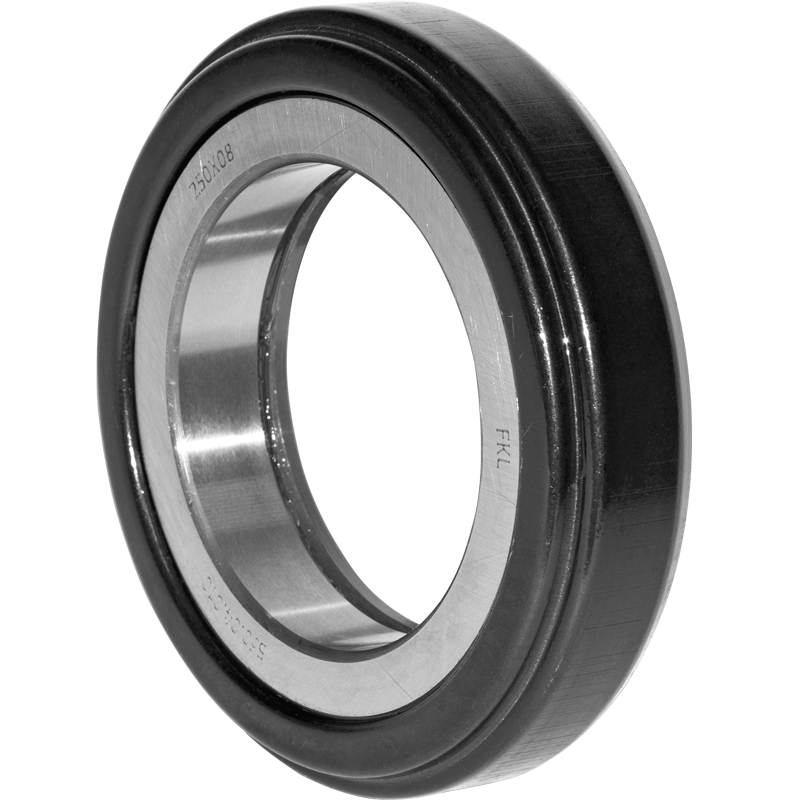

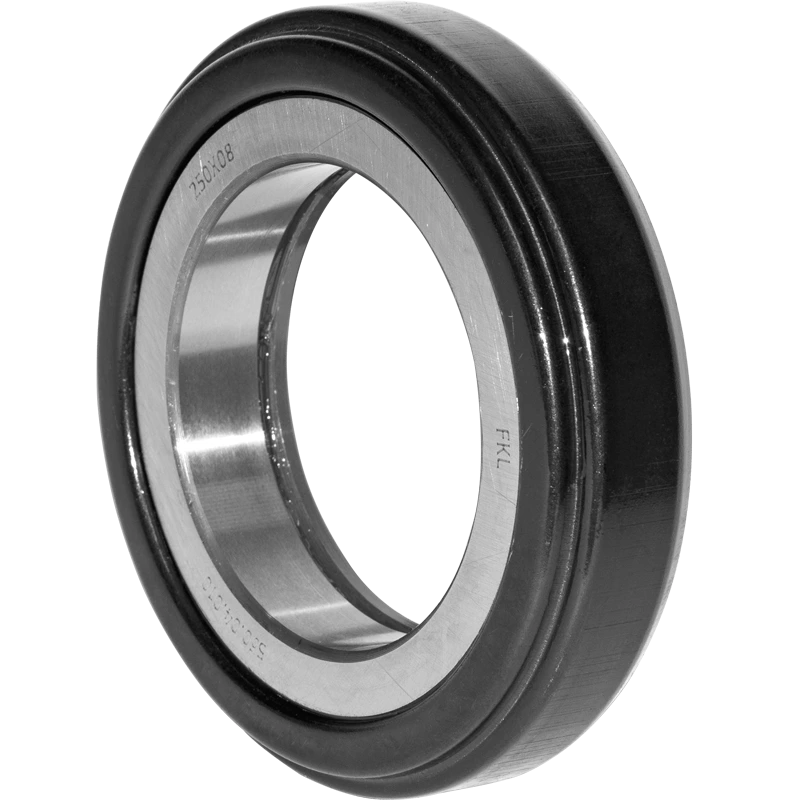

560.04.010

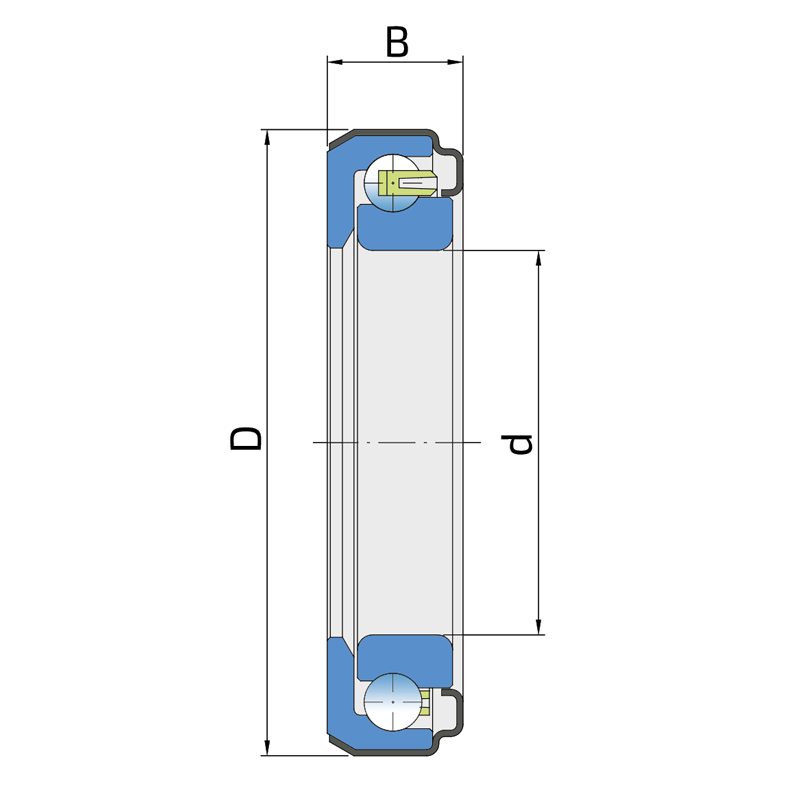

Technical specifications
| d | Bore diameter | 68 mm |
| D | Outside diameter | 103.4 mm |
| B | Total width | 22.1 mm |
| kg | Mass | 0.57 kg |
| Cdyn | Dynamic load rating | 26.9 kN |
| Co | Static load rating | 17.7 kN |
| Pu | Fatigue load limit | 0.743 kN |
Cross references
| IMT | 560.04.010 |
Installations
| IMT | 540 |
| IMT | 560 |
| IMT | 577 |
