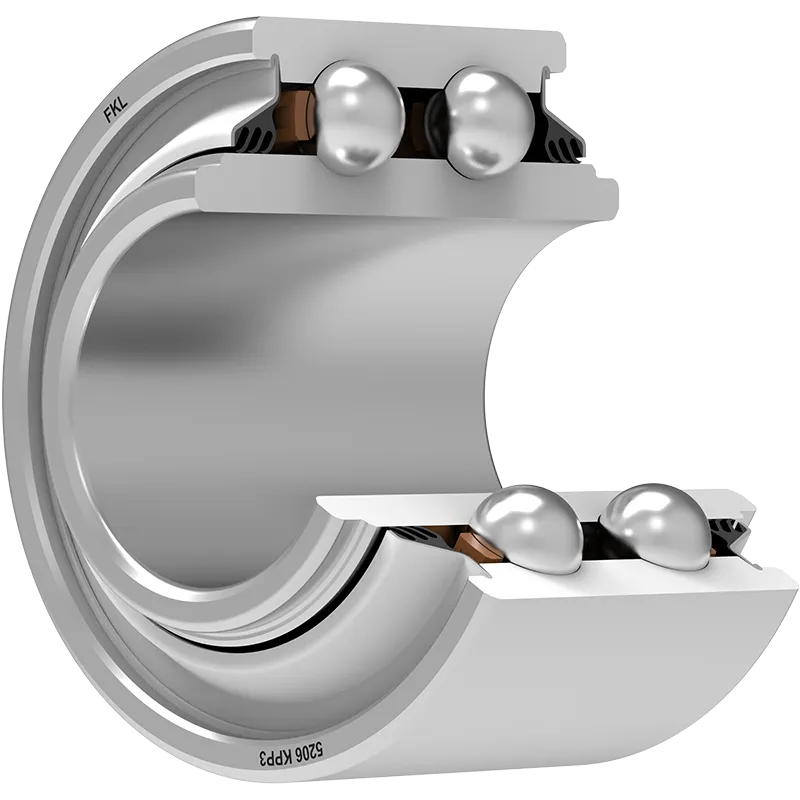

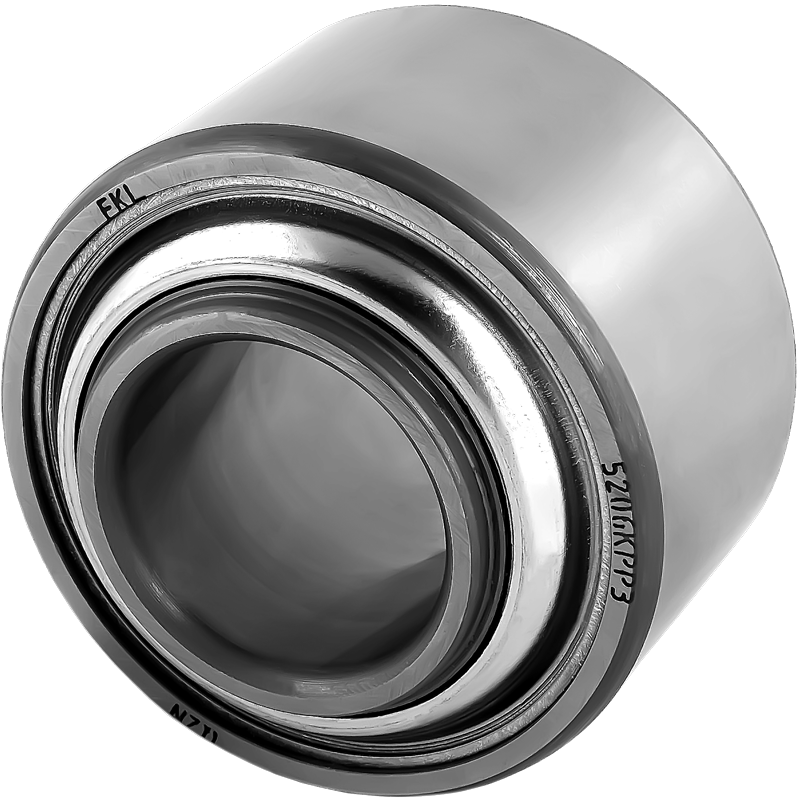

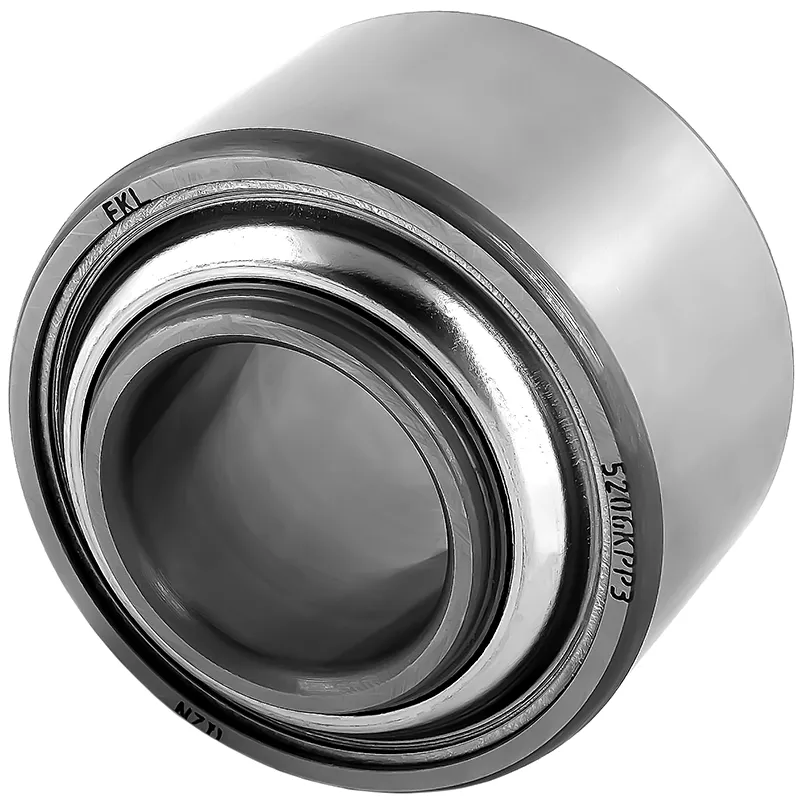

5206 KPP3

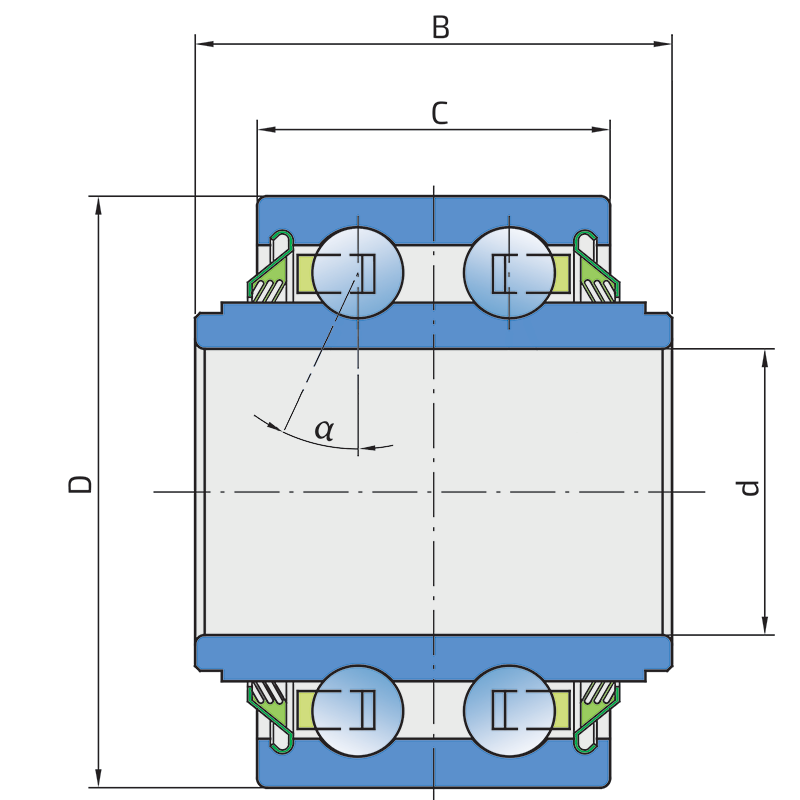

Technical specifications
| Cdyn |
Dynamic load rating |
28.7 kN |
| Co |
Static load rating |
21.8 kN |
| D |
Outside diameter |
62 mm |
| d |
Bore diameter |
30.15 mm |
| C |
D-shape hole cut out dimension |
37 mm |
| kg |
Mass |
0.5 kg |
| B |
Width inner ring |
50 mm |
| α |
Contact angle |
25 ° |

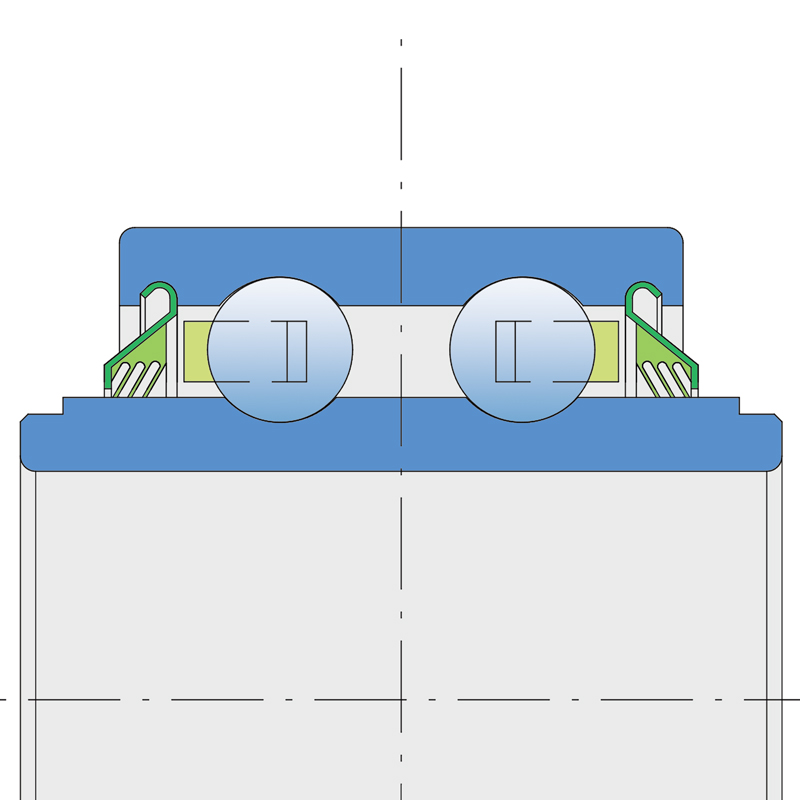

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
Cross references
| KINZE |
GA8641 |
| KINZE |
GA8603 |
| GREAT PLAINS |
822-215C |
| FAFNIR |
5206KPP3 |
| PEER |
5206KPP3 |
| АЛЕКС - АГРО ООО |
5206 KPP3 |
| Грязинский культиваторный завод ПАО |
5206 KPP3 |
| JOHN DEERE |
AN261766 |
| KABAT |
5206KPP3 |
Installations
| KINZE |
SERIES 3000 |
| KINZE |
Series 3005 |
| KINZE |
Series 4000 |
| KINZE |
Series 4005 |
| JOHN DEERE |
Disk Ripper |
| JOHN DEERE |
V-Ripper |
| JOHN DEERE |
Mulch Ripper |
