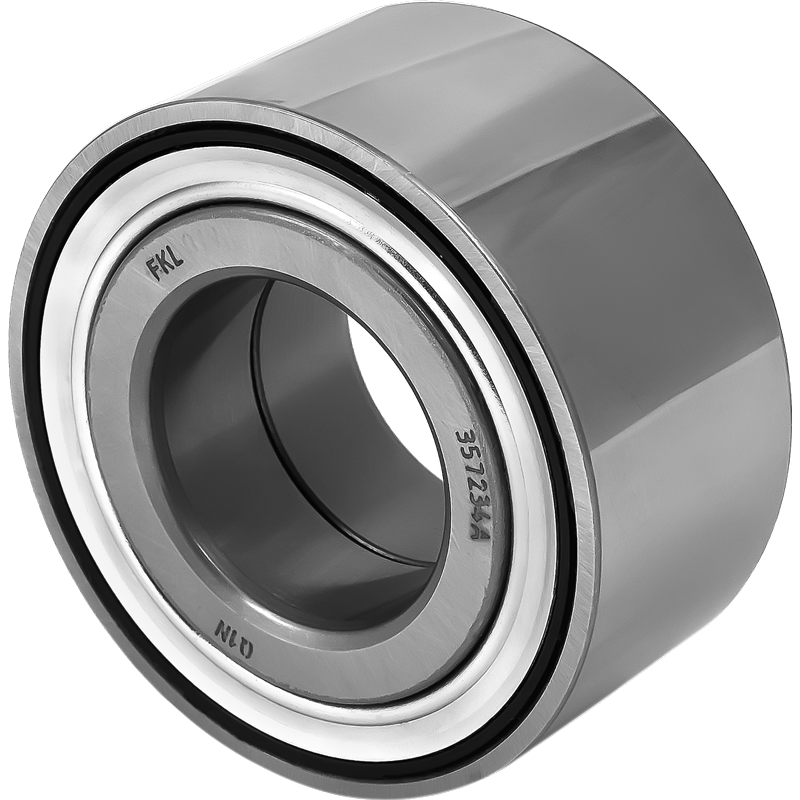

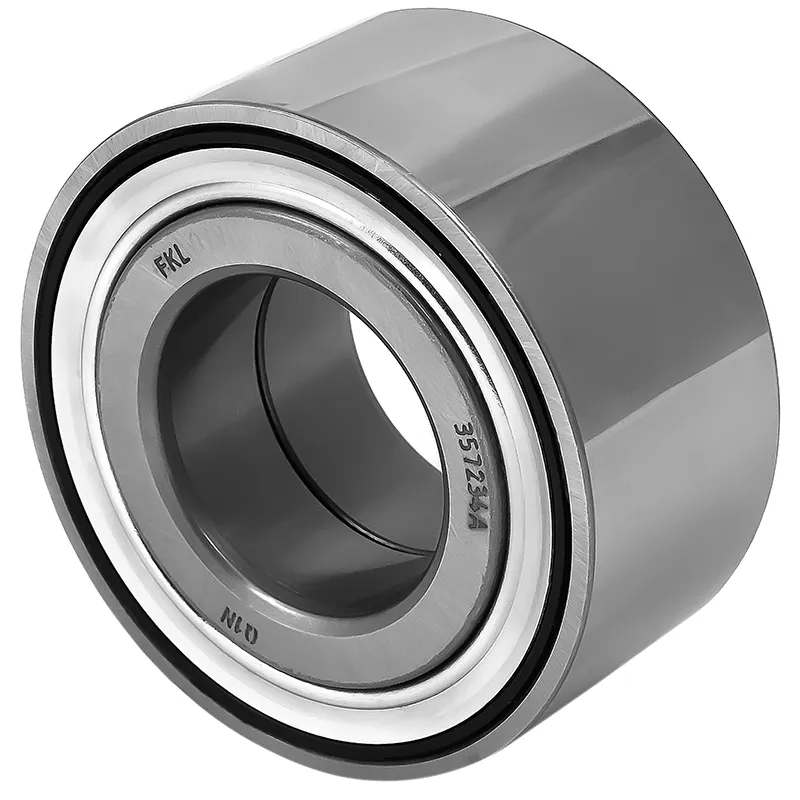

357234A
Technical specifications
| d | Bore diameter | 35 mm |
| D | Outside diameter | 72 mm |
| B | Width inner ring | 34 mm |
| α | Contact angle | 40 ° |
| kg | Mass | 0.539 kg |
| Cdyn | Dynamic load rating | 47.4 kN |
| Co | Static load rating | 38.3 kN |
| Pu | Fatigue load limit | 1.609 kN |

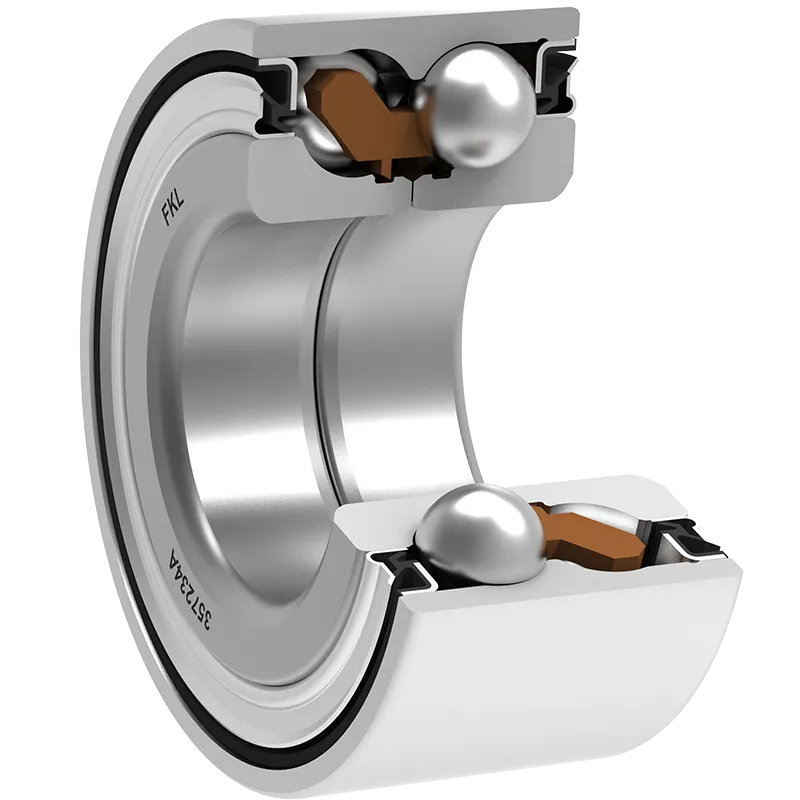

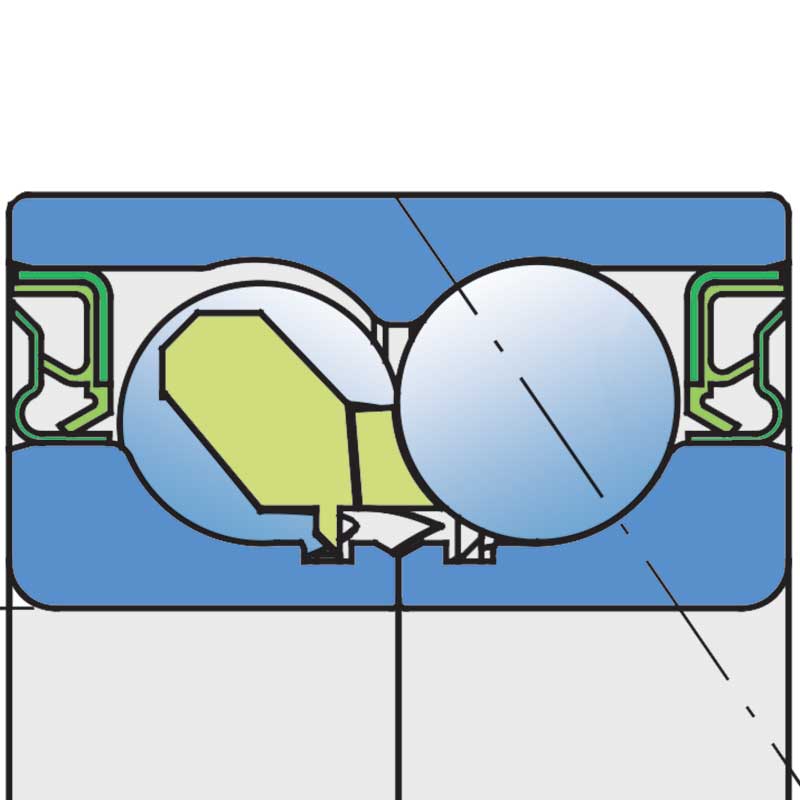

CASSETTE SEAL / CASSETTE SEAL
Cassette seal on the both side. This sealing provides excellent protection from contamination and low friction. Therefore, bearings with this type of sealing can be used for high speed applications.
Cross references
| LEMKEN | 3198750 |
| LEMKEN | F214101-1 |
| CLAAS | 939717.0 |
| SKF | VKBA 857D |
| FAG | 540763 |
| NSK | 35BWD01C |
| SNR | GB40582 |
| KOYO | DAC35720034A |
| FERSA | F16201 A+S |
| POTTINGER | 402.163-2 |
| NKE | 3798750 |
| ORUDICA 2000 LTD | 357234A |
| ДОНЭКС ООО | 357234A |
| РЗС ООО | 357234A |
| RBF | PN60002 |
| ОАО Витебский мотороремонтный завод | 357234A |
| PFI | 35720034CS |
Installations
| LEMKEN | RUBIN |
| ДОНЭКС | БД-3/3,5 |
| ДОНЭКС | БД-4/4,5 |
| ДОНЭКС | БД-5 |
| ДОНЭКС | БД-6 |
| RZS | АГЛ |
| RZS | MIX |
| ВМРЗ | КПД-6 |
| ВМРЗ | АД-600 Рубин |
| ВМРЗ | СПЗ-12 |
| ВМРЗ | СЗТМ-4Н |
