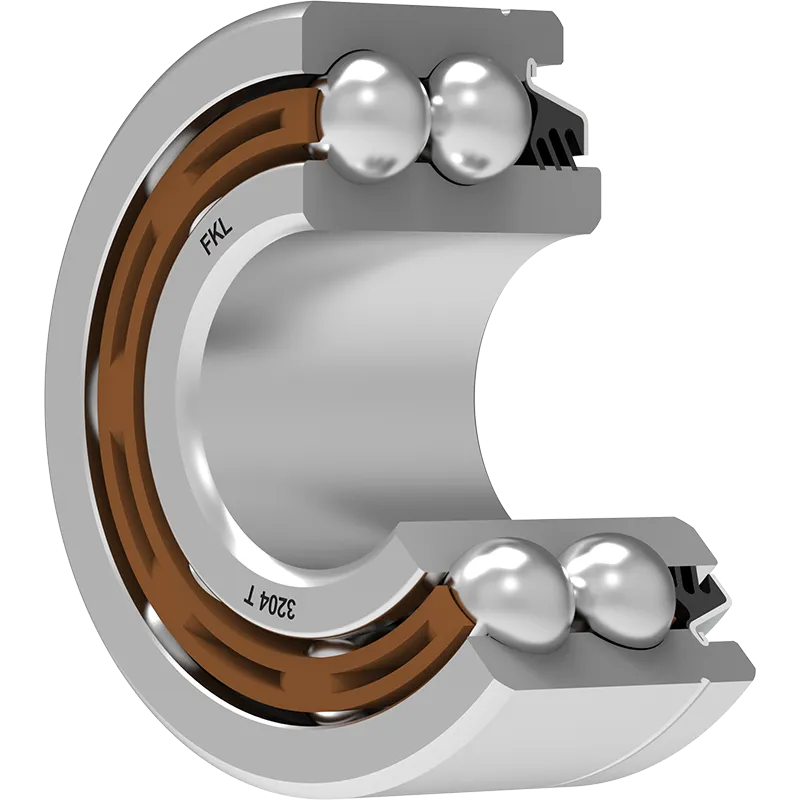

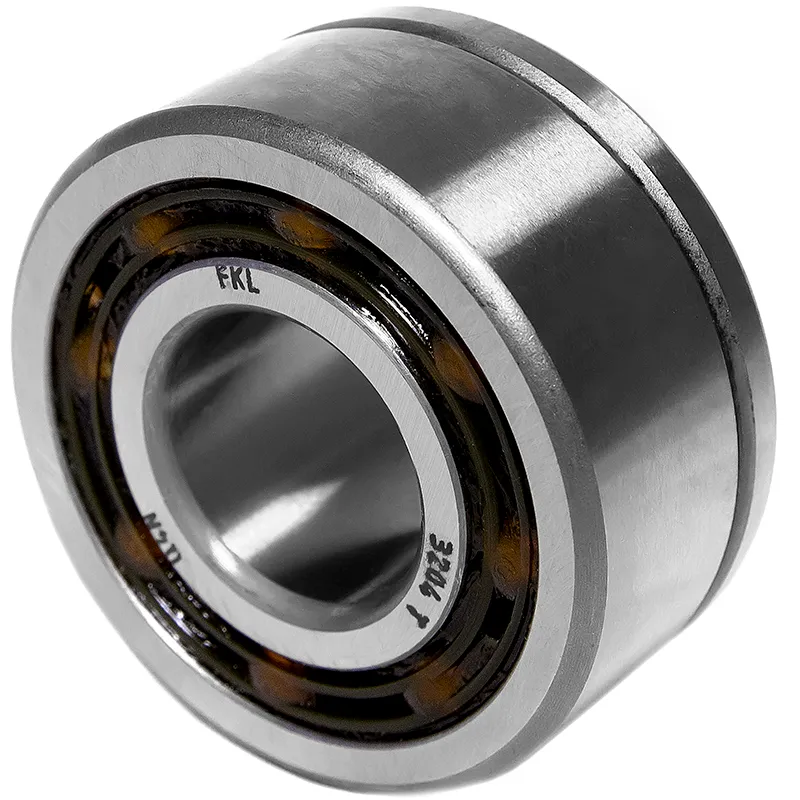

3204 T

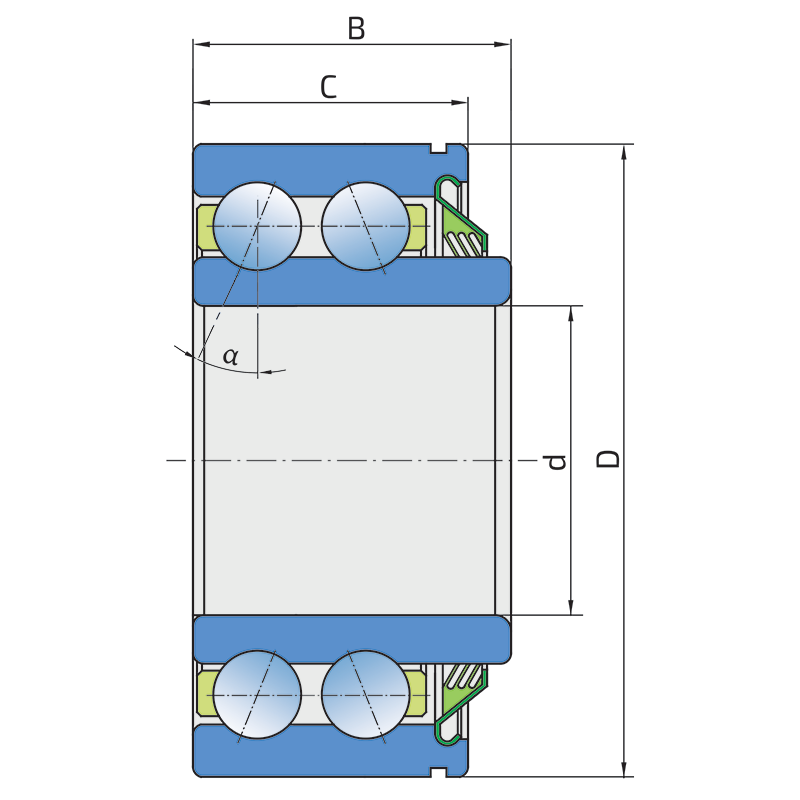

Technical specifications
| Cdyn | Dynamic load rating | 18.8 kN |
| Co | Static load rating | 12.6 kN |
| D | Outside diameter | 47 mm |
| d | Bore diameter | 20 mm |
| C | D-shape hole cut out dimension | 22 mm |
| kg | Mass | 0.185 kg |
| B | Width inner ring | 25.2 mm |
| α | Contact angle | 25 ° |

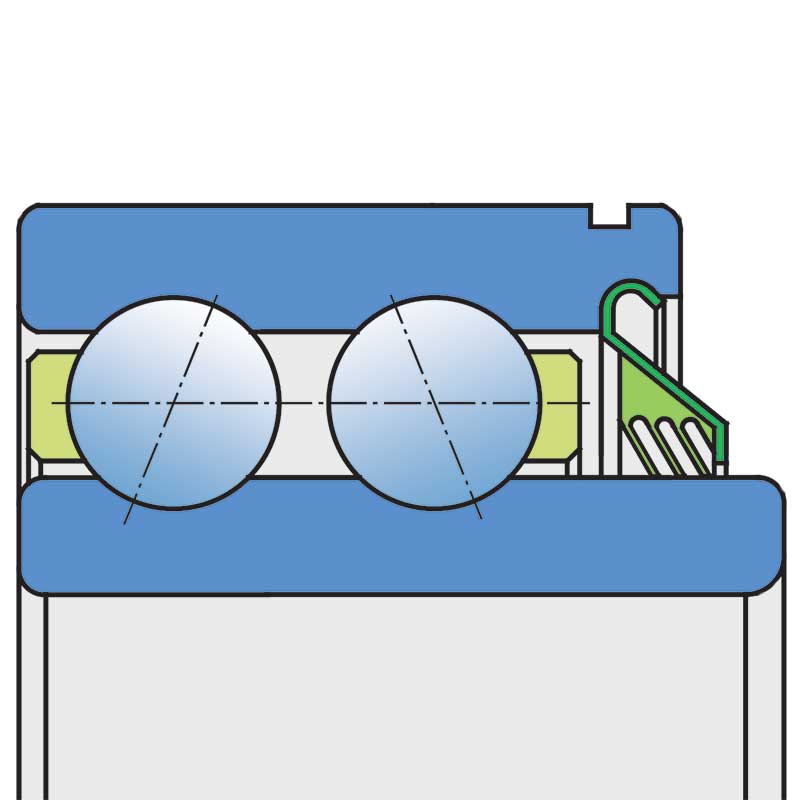

T SEAL ON ONE SIDE (T)
3-lip seal on the front side which is exposed to contaminants, while the base side is open to the lubricant.
Cross references
| SEMEATO | F110390 |
| INA | F110390 |
| NWG | 3203B-2WDRTNGB01 |
| PEER | 5204-KP52-R-A116 |
| PEER | 5204-KP52-SP6 |
