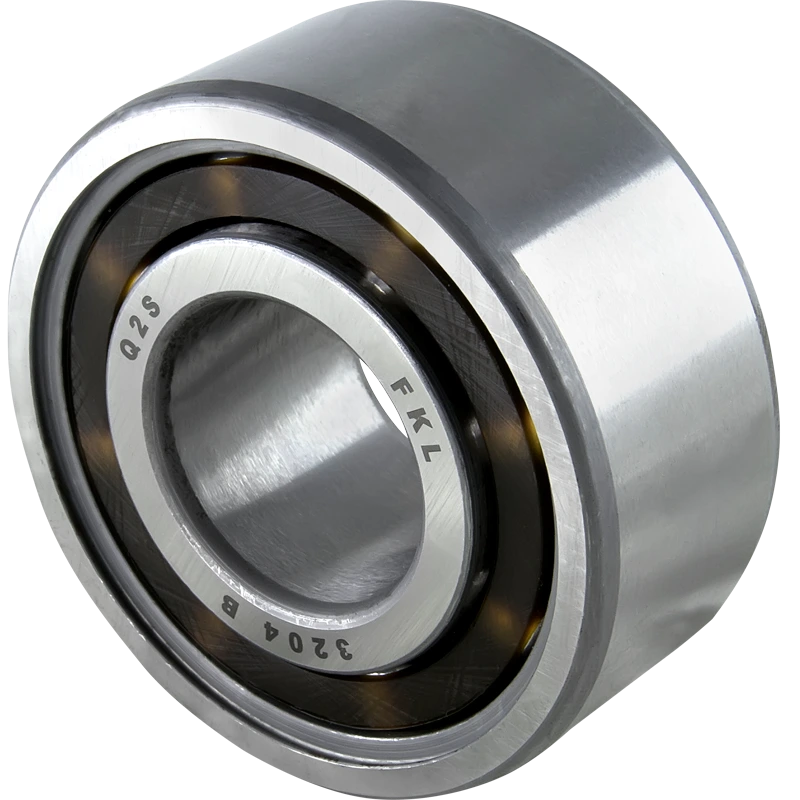

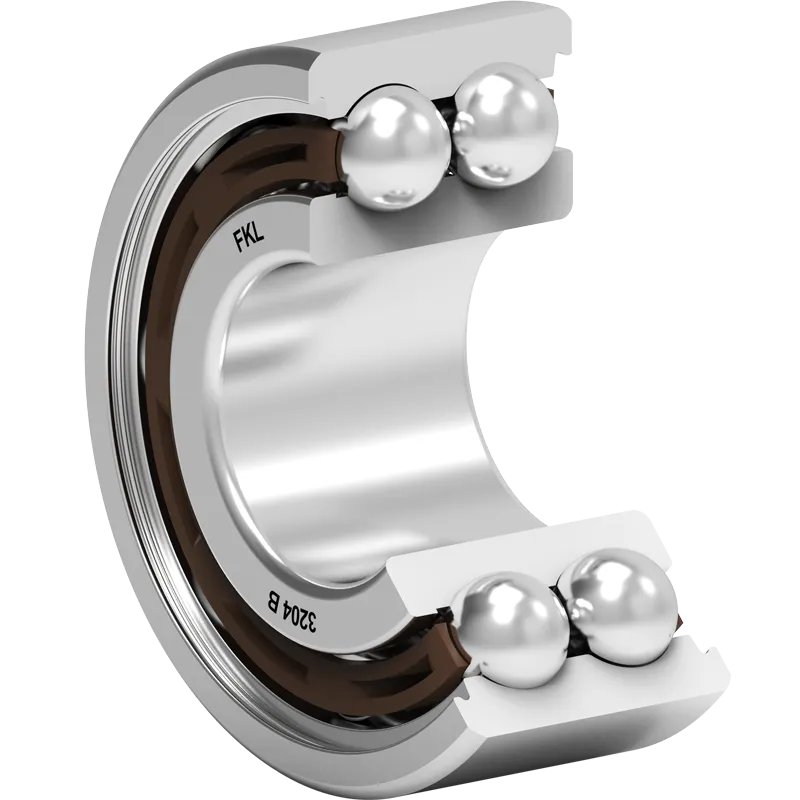

3204 B

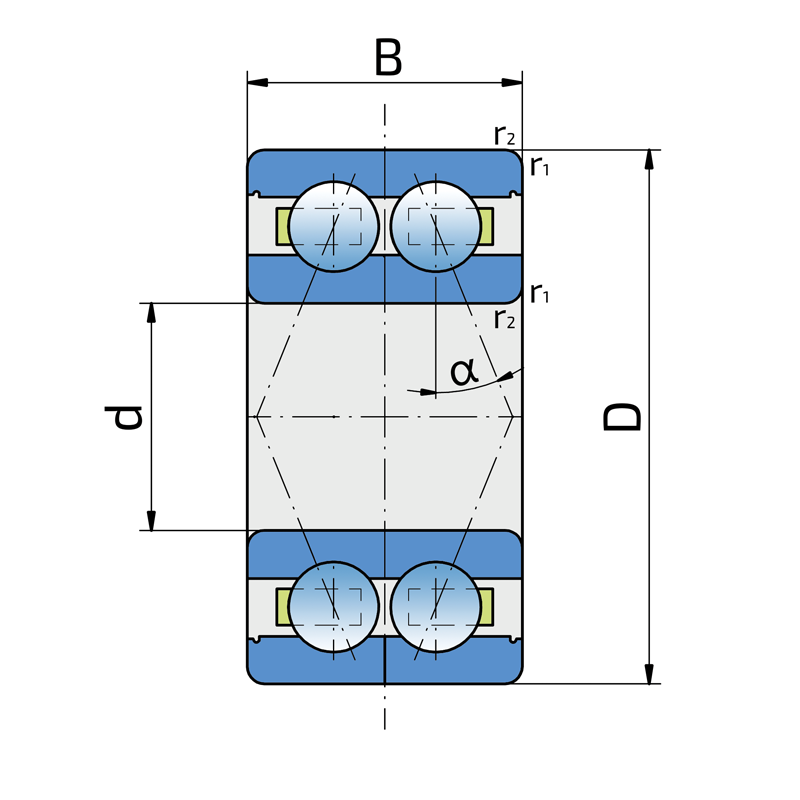

Technical specifications
| d | Bore diameter | 20 mm |
| D | Outside diameter | 47 mm |
| B | Width inner ring | 20.6 mm |
| α | Contact angle | 25 ° |
| r1,2 | Inner ring Chamfer dimension | 1 mm |
| kg | Mass | 0.16 kg |
| Cdyn | Dynamic load rating | 18.8 kN |
| Co | Static load rating | 12.6 kN |
| Pu | Fatigue load limit | 0.529 kN |
Cross references
| ООО ШУМАХЕР | 3204 B |
