309726

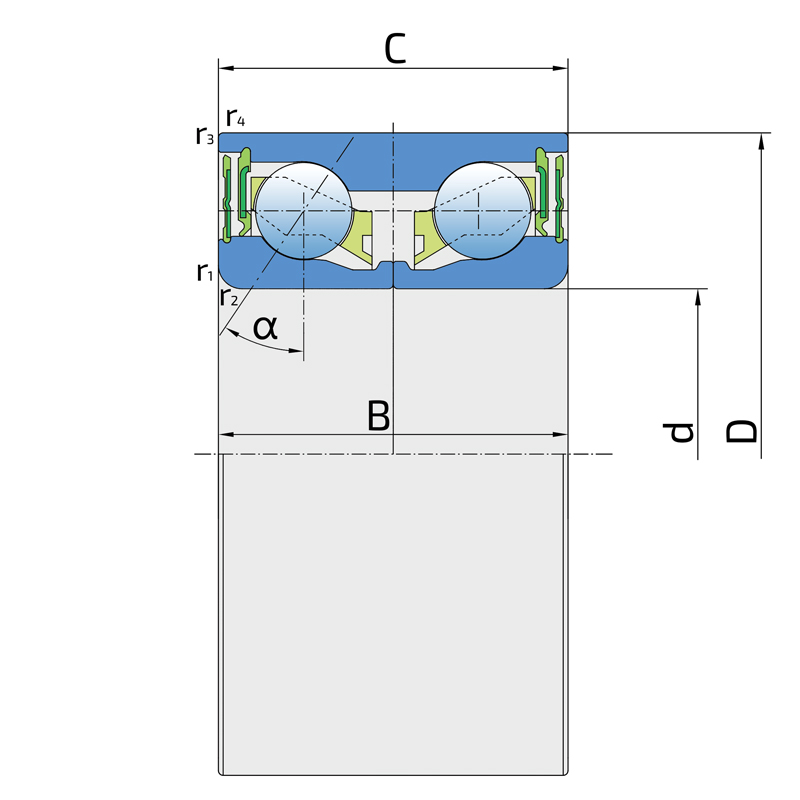

Technical specifications
| d |
Bore diameter |
34 mm |
| D |
Outside diameter |
64 mm |
| B |
Width inner ring |
37 mm |
| C |
Width outer ring |
37 mm |
| α |
Contact angle |
34 ° |
| r1,2 |
Inner ring Chamfer dimension |
2.5 mm |
| r3,4 |
Outside ring Chamfer dimension |
0.5 mm |
| kg |
Mass |
0.432 kg |
| Cdyn |
Dynamic load rating |
38.4 kN |
| Co |
Static load rating |
34.4 kN |
| Pu |
Fatigue load limit |
1.445 kN |

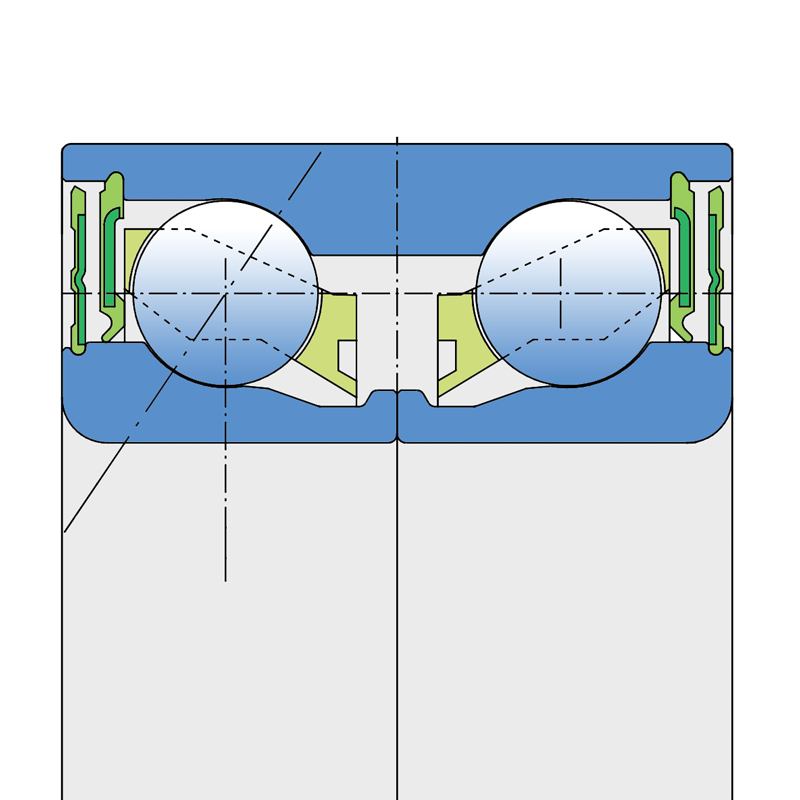

DOUBLE RS SEAL / DOUBLE RS SEAL (4RS)
The 4RS sealing on bearing refers to a sealing system that includes four rubber seals (RS) - two on each side of the bearing.
2RS seal on each side ensure good shielding from dirt, dust, and moisture; reduces grease leakage, extending bearing lifetime; reduces the need for frequent re-lubrication.
Cross references
| SKF |
BAH 0092 |
| CNH |
4892732 |
| KNOTT |
45887.10 |
| JOHN DEERE |
AZ37456 |
| POTTINGER |
402.163 |
| SKF |
VKBC20108 |
| SKF |
VKBC20012 |
| SKF |
VKBA3786 |
| PFI |
PW34640037CS |
| SNR |
GB10884 |
| FERSA |
F16019 |
| KOYO |
DAC3464W-52RSCS44 |
| NAF |
532066.2RS |
| NTN |
AU0701-4LL/L588 |
| FAG |
532066 |
| PBF |
133-639.2RSTN |
| LANDINI |
4892732 |
| NEW HOLLAND |
4892732 |
| NEW HOLLAND |
2859567 |
| LANDINI |
00240054 |
Installations
| POTTINGER |
NOVADISC |
| POTTINGER |
Novacat Front |
| POTTINGER |
Novadisc Rear |
