209KPPB2

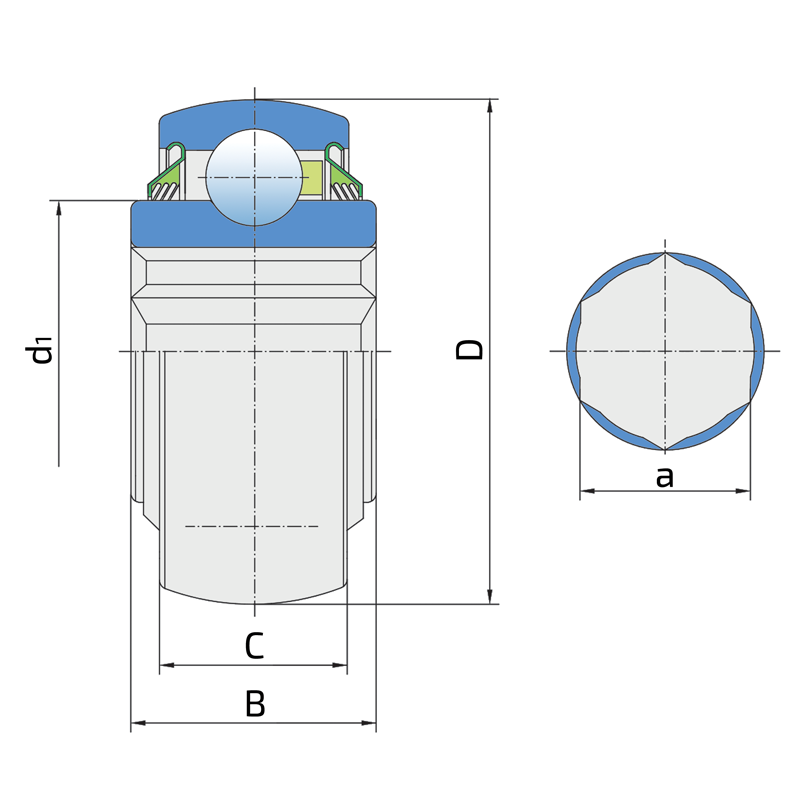

Technical specifications
| D |
Outside diameter |
3.3465 inch |
| kg |
Mass |
1.27 lbs |
| Co |
Static load rating |
20.4 kN |
| Co |
Static load rating |
4600 lbs |
| Cdyn |
Dynamic load rating |
32.5 kN |
| Cdyn |
Dynamic load rating |
7300 lbs |
| a |
Shaft size |
38.12 mm |
| a |
Shaft size |
1 1/2 inch |
| d1 |
Outer diameter inner ring |
56.6 mm |
| d1 |
Outer diameter inner ring |
2.228 inch |
| C |
Width outer ring |
19 mm |
| C |
Width outer ring |
0.748 inch |
| B |
Width inner ring |
30 mm |
| B |
Width inner ring |
1.181 inch |
| D |
Outside diameter |
85 mm |
| kg |
Mass |
0.58 kg |

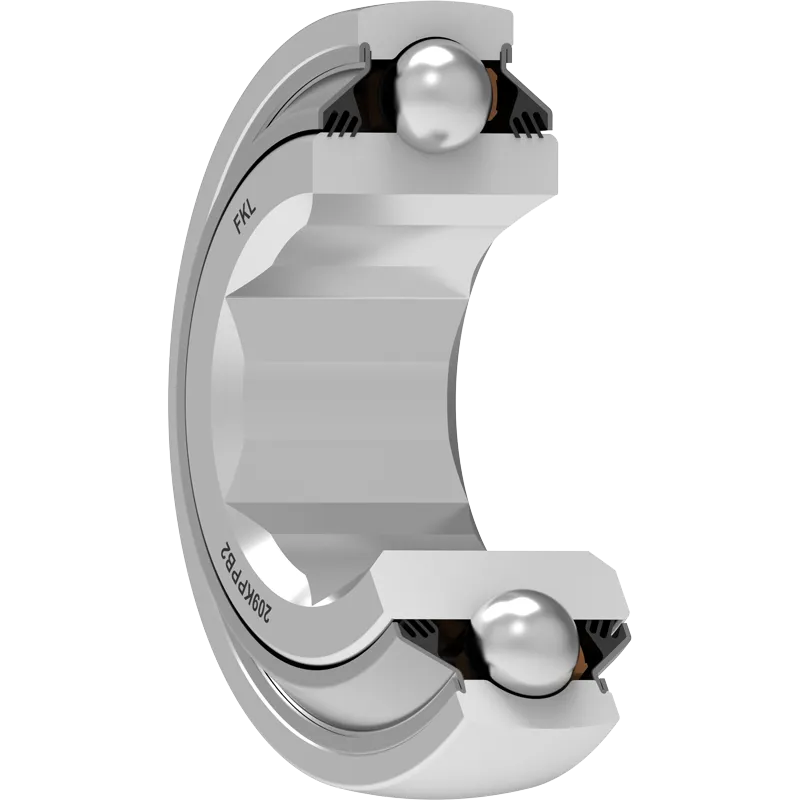

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
Cross references
| INA |
209KPPB2 |
| CASE |
47577178 |
| LINK BELT |
24K209N |
| BCA |
HPS108GPH |
| NEW HOLLAND |
286909 |
