208000

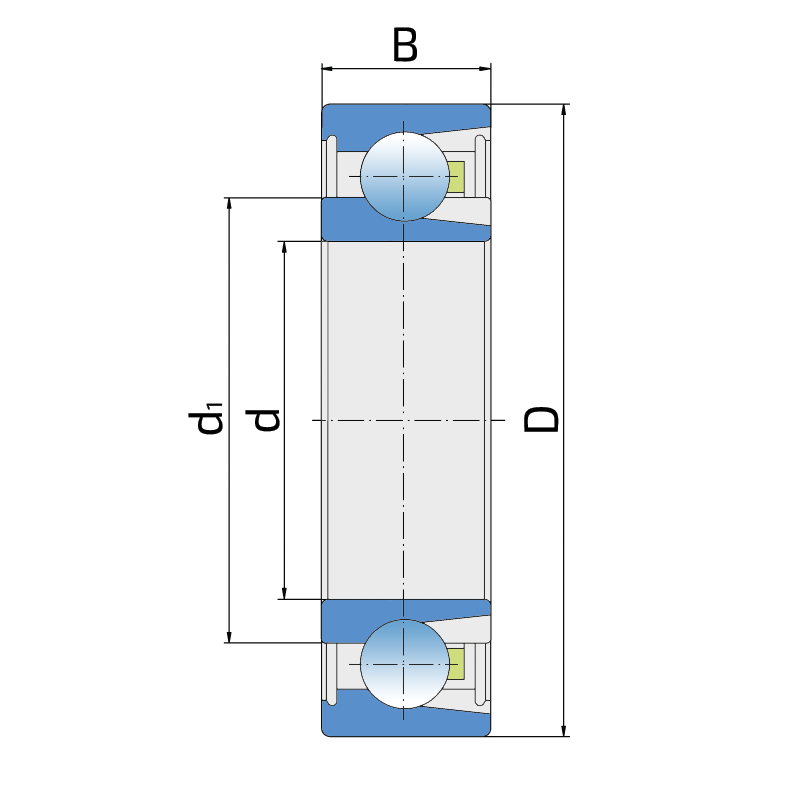

Technical specifications
| d | Bore diameter | 40 mm |
| D | Outside diameter | 80 mm |
| B | Width inner ring | 18 mm |
| d1 | Outer diameter inner ring | 52 mm |
| kg | Mass | 0.37 kg |
| Cdyn | Dynamic load rating | 39.5 kN |
| Co | Static load rating | 24.2 kN |
| Pu | Fatigue load limit | 1.016 kN |
Cross references
| IMT | 532.03.610 |
Installations
| IMT | 539 |
