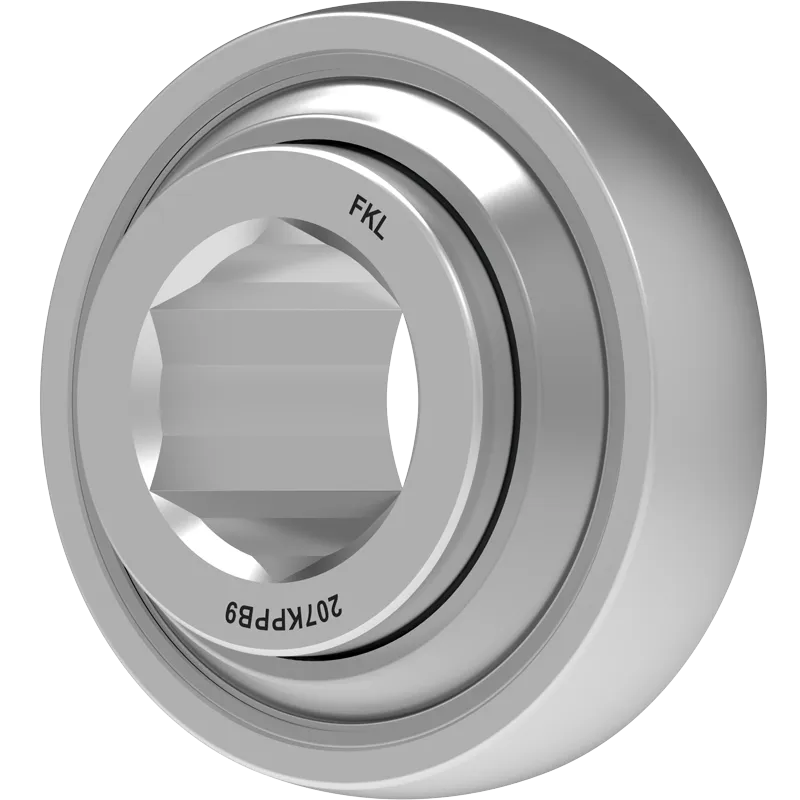

207KPPB9

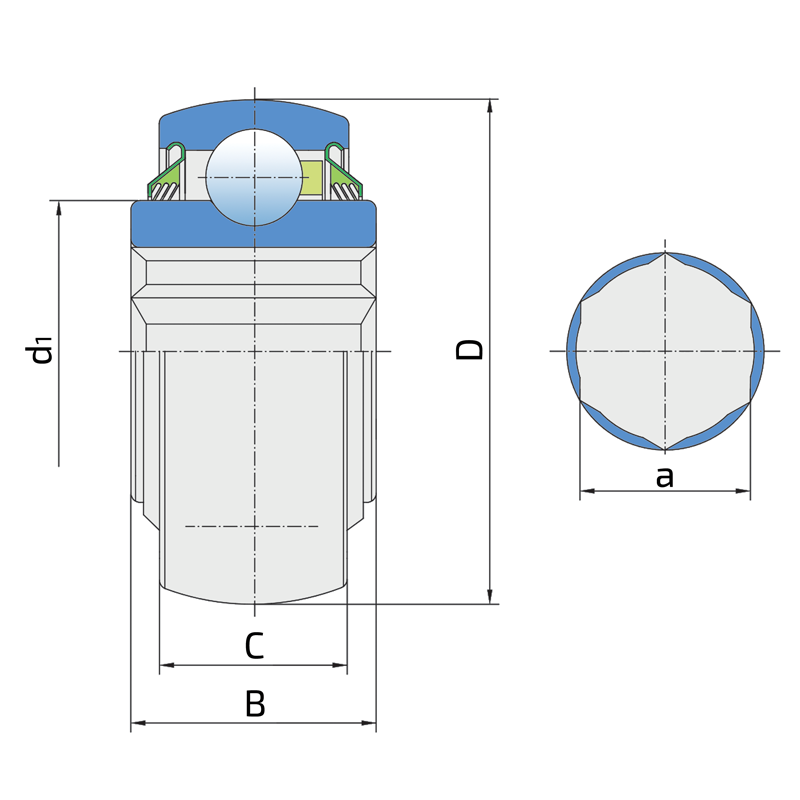

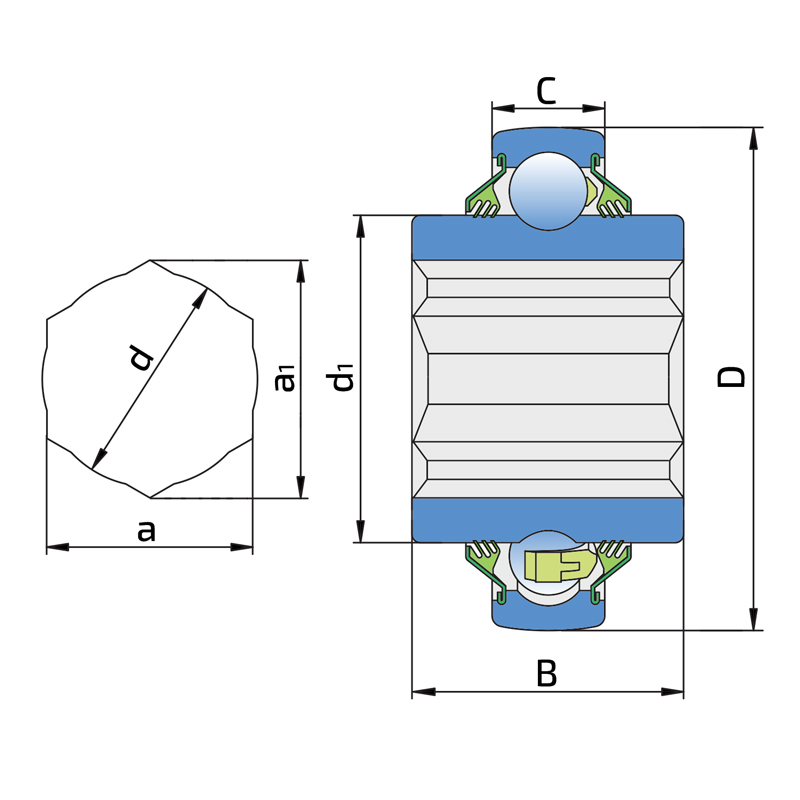

Technical specifications
| D | Outside diameter | 2.8346 inch |
| kg | Mass | 1 lbs |
| Co | Static load rating | 15.3 kN |
| Co | Static load rating | 3400 lbs |
| Cdyn | Dynamic load rating | 25.5 kN |
| Cdyn | Dynamic load rating | 5700 lbs |
| a | Shaft size | 28.6 mm |
| a | Shaft size | 1 1/8 inch |
| d1 | Outer diameter inner ring | 46.1 mm |
| d1 | Outer diameter inner ring | 1.815 inch |
| C | Width outer ring | 17 mm |
| C | Width outer ring | 0.669 inch |
| B | Width inner ring | 37.7 mm |
| B | Width inner ring | 1.484 inch |
| D | Outside diameter | 72 mm |
| kg | Mass | 0.45 kg |

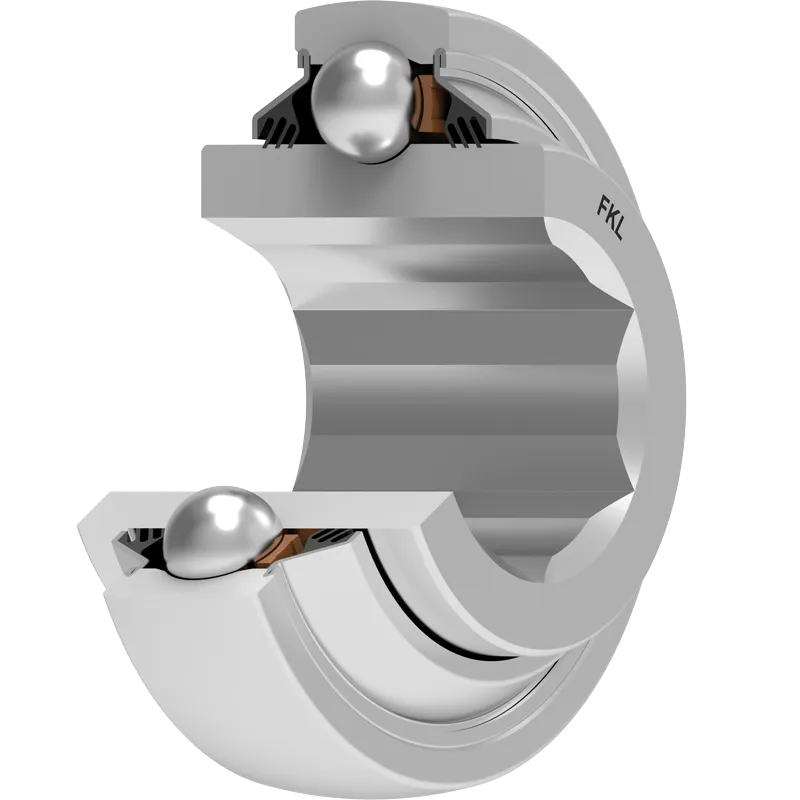

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| INA | 207KPPB9 |
