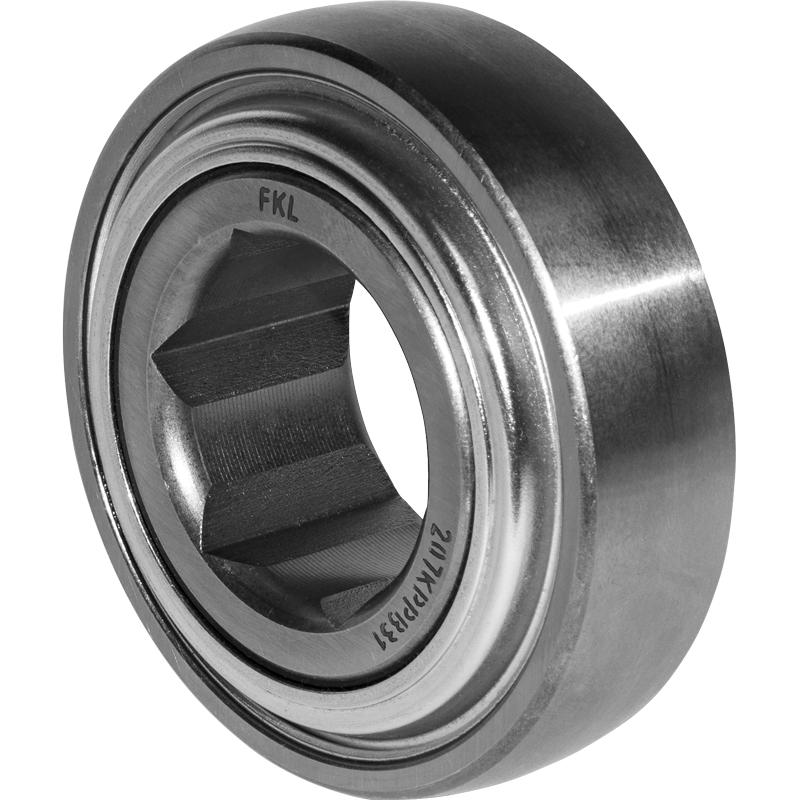

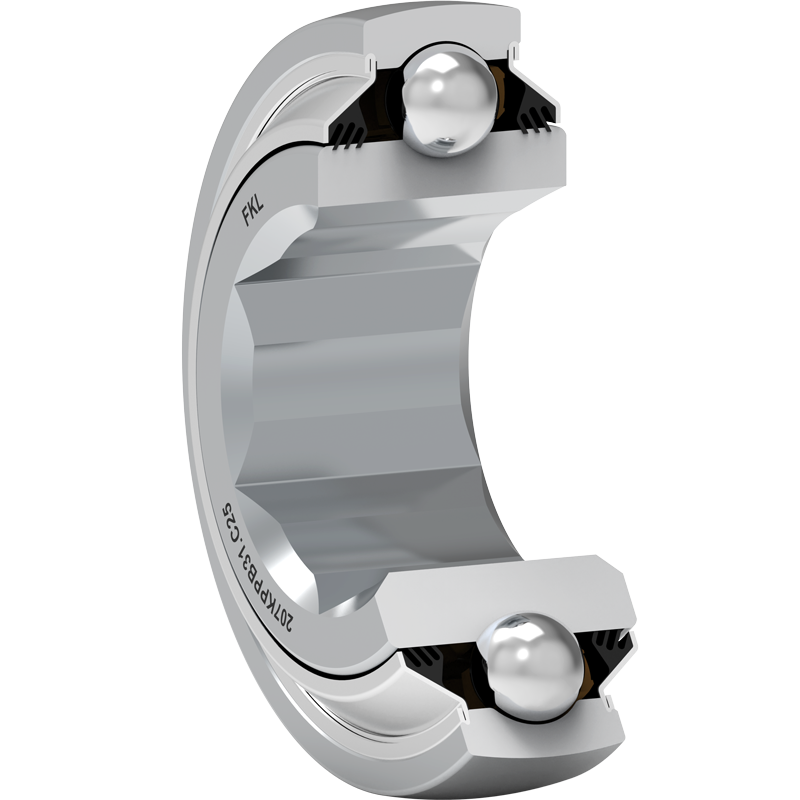

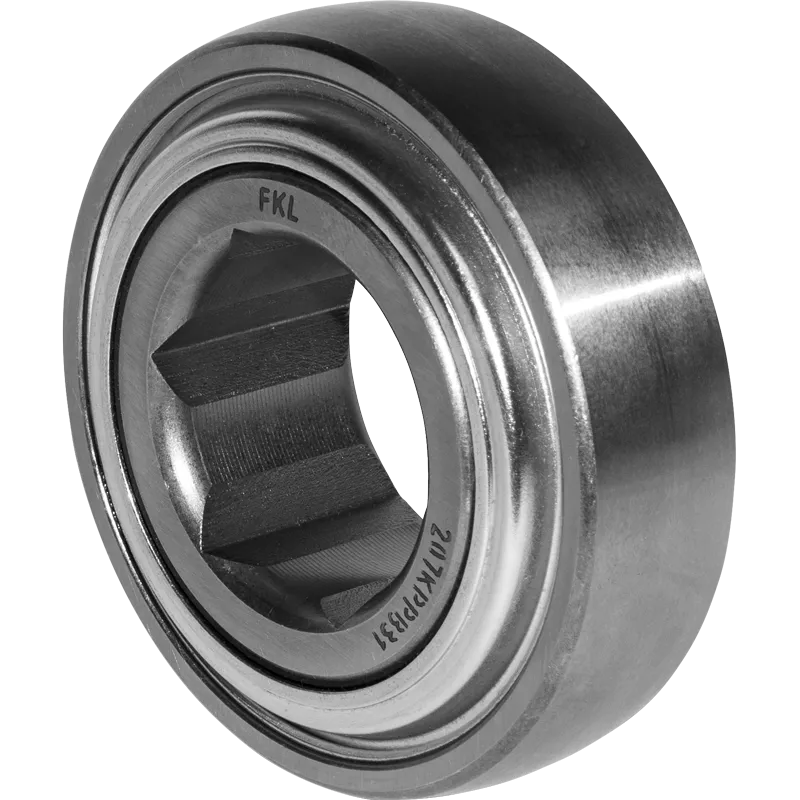

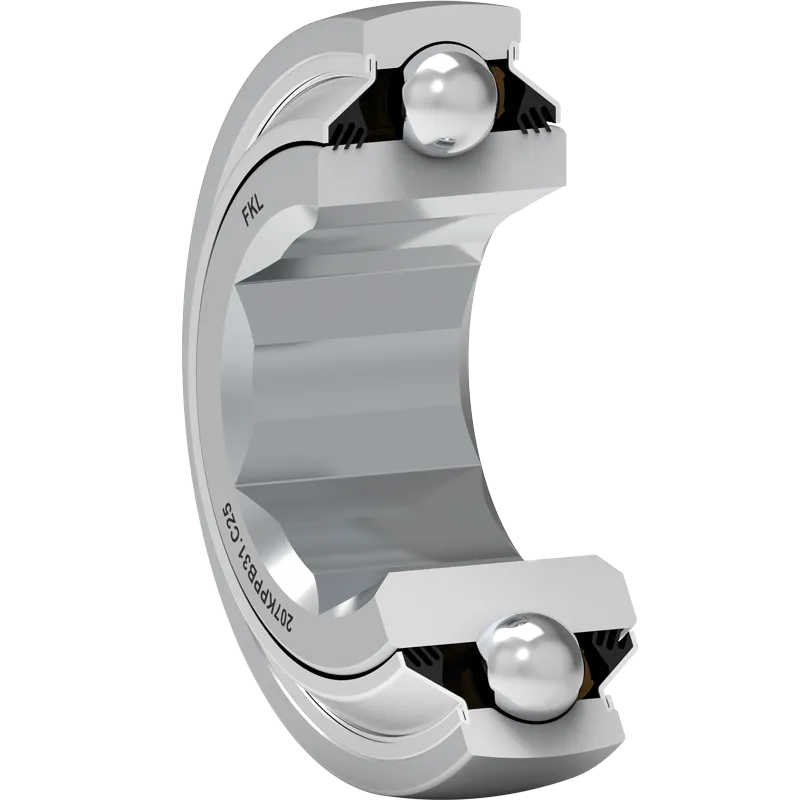

207KPPB31.C25

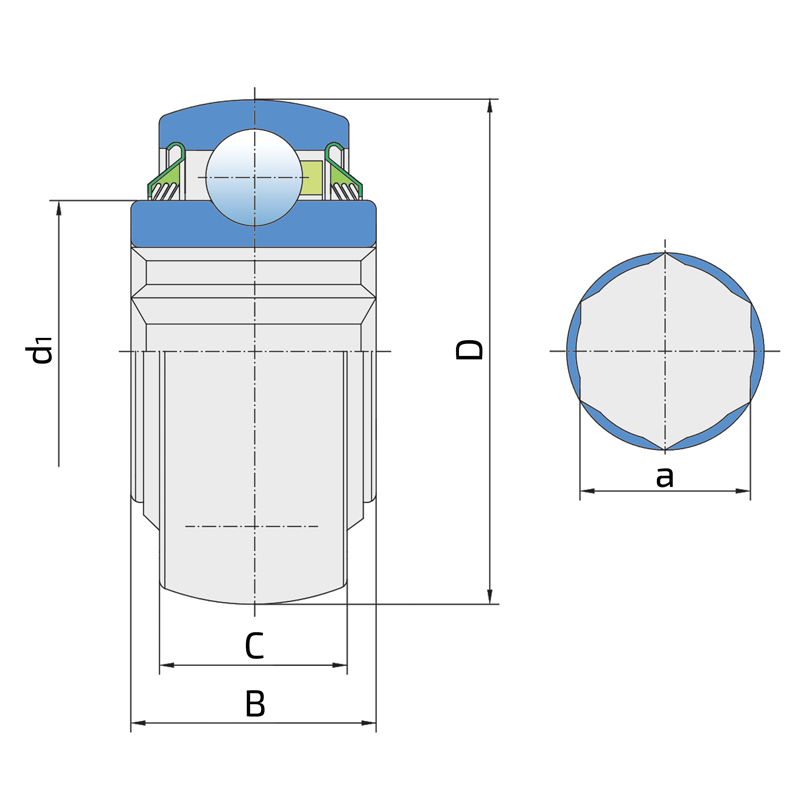

Technical specifications
| D |
Outside diameter |
72 mm |
| B |
Width inner ring |
25 mm |
| C |
Width outer ring |
19 mm |
| d1 |
Outer diameter inner ring |
46.1 mm |
| a |
Shaft size |
31.78 mm |
| Cdyn |
Dynamic load rating |
25.7 kN |
| Co |
Static load rating |
15.3 kN |
| Pu |
Fatigue load limit |
0.643 kN |

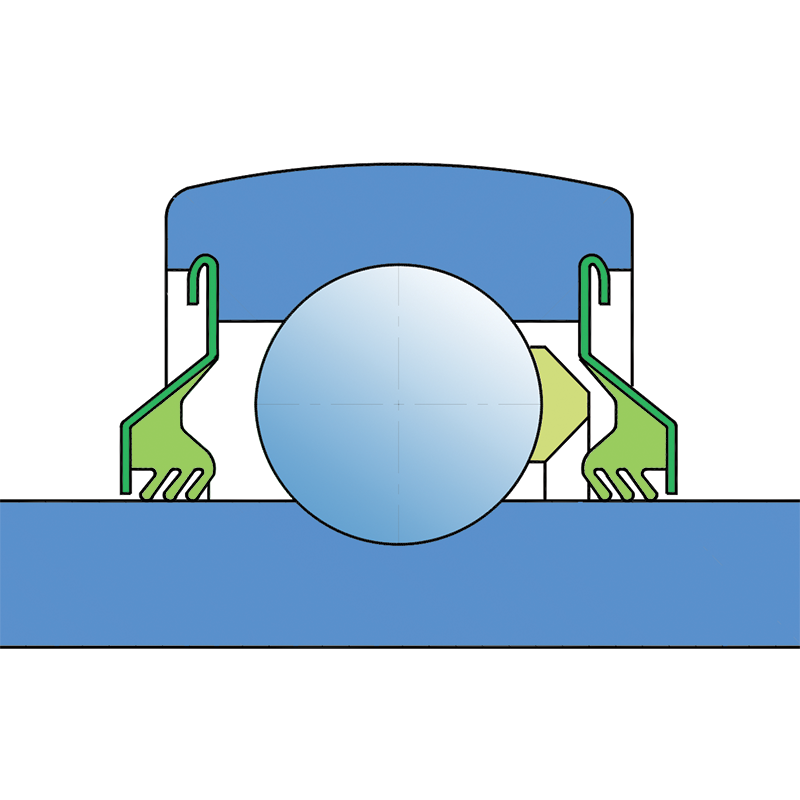

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| JOHN DEERE |
AFH213106 |
| CASE |
51477836 |
| PEER |
PER.207HPPB55 |
| FAFNIR |
207KRRB17 |
| BCA |
HPS102GP3 |
| JOHN DEERE |
JD9420 |
