207KPPB3

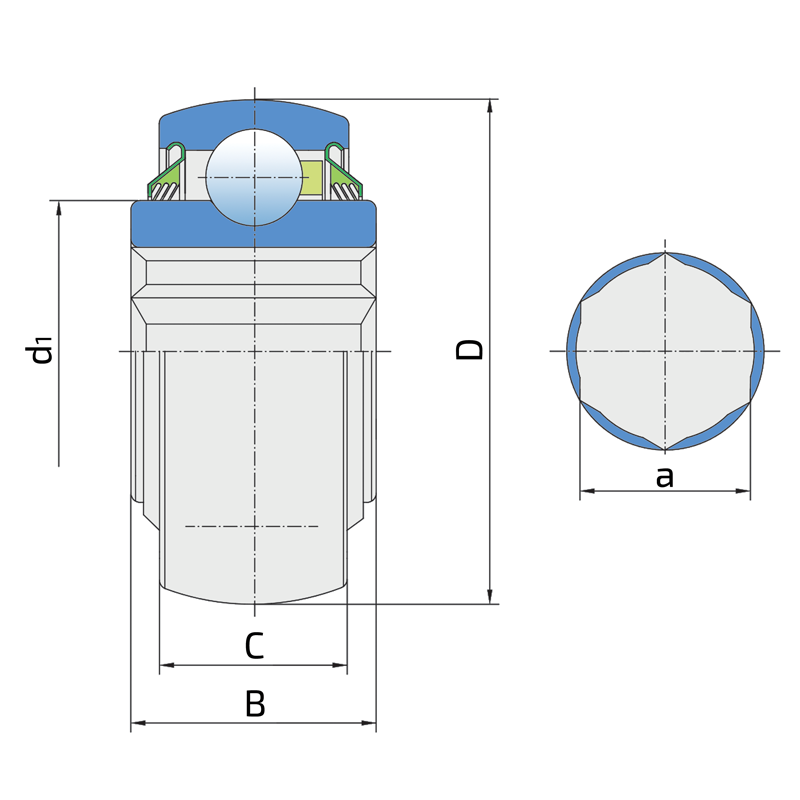

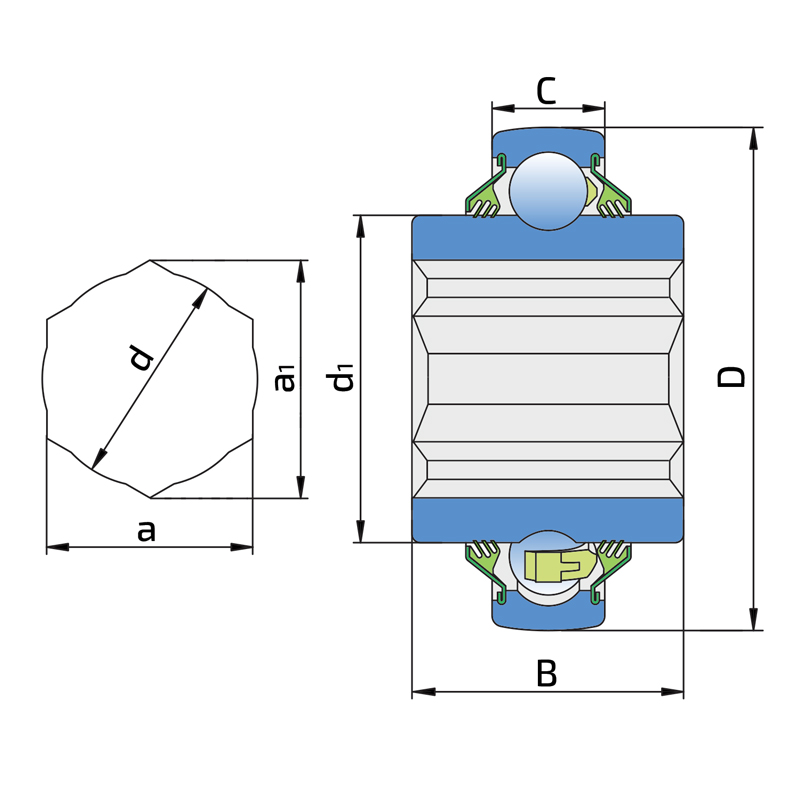

Technical specifications
| D |
Outside diameter |
3.1496 inch |
| D |
Outside diameter |
72 mm |
| B |
Width inner ring |
1.437 inch |
| B |
Width inner ring |
36.5 mm |
| C |
Width outer ring |
0.709 inch |
| C |
Width outer ring |
18 mm |
| d1 |
Outer diameter inner ring |
2.047 inch |
| d1 |
Outer diameter inner ring |
46.1 mm |
| a |
Shaft size |
1 1/4 inch |
| a |
Shaft size |
31.78 mm |
| Cdyn |
Dynamic load rating |
5700 lbs |
| Cdyn |
Dynamic load rating |
25.5 kN |
| Co |
Static load rating |
3400 lbs |
| Co |
Static load rating |
15.3 kN |
| kg |
Mass |
0.87 lbs |
| kg |
Mass |
0.4 kg |
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
Cross references
| INA |
207KPPB3 |
| FAFNIR |
207KPPB3 |
| SKF |
YHC-207-104-2-LS8W-VT357 |
| FAG |
207KRRB AH02 |
| INA |
SK104-207-KRR-B-AH12 |
| NTN |
2AH07-1.1/8 |
| JOHN DEERE |
AE37057 |
| JOHN DEERE |
SBX07A42 LLMC3Q1 |
| JOHN DEERE |
JD9420 |
| JOHN DEERE |
256187A1 |
| JOHN DEERE |
AE29785 |
| JOHN DEERE |
HPS103TP2 |
| INA |
207KPPB31 |
Installations
| JOHN DEERE |
3760 |
| JOHN DEERE |
3955 |
| JOHN DEERE |
5720 |
| JOHN DEERE |
5830 |
| JOHN DEERE |
CP770 |
| JOHN DEERE |
3765 |
| JOHN DEERE |
3970 |
| JOHN DEERE |
5730 |
| JOHN DEERE |
7760 |
| JOHN DEERE |
CS690 |
| JOHN DEERE |
3950 |
| JOHN DEERE |
3975 |
| JOHN DEERE |
5820 |
| JOHN DEERE |
CP690 |
| JOHN DEERE |
CS770 |
