207KPP3
Technical specifications

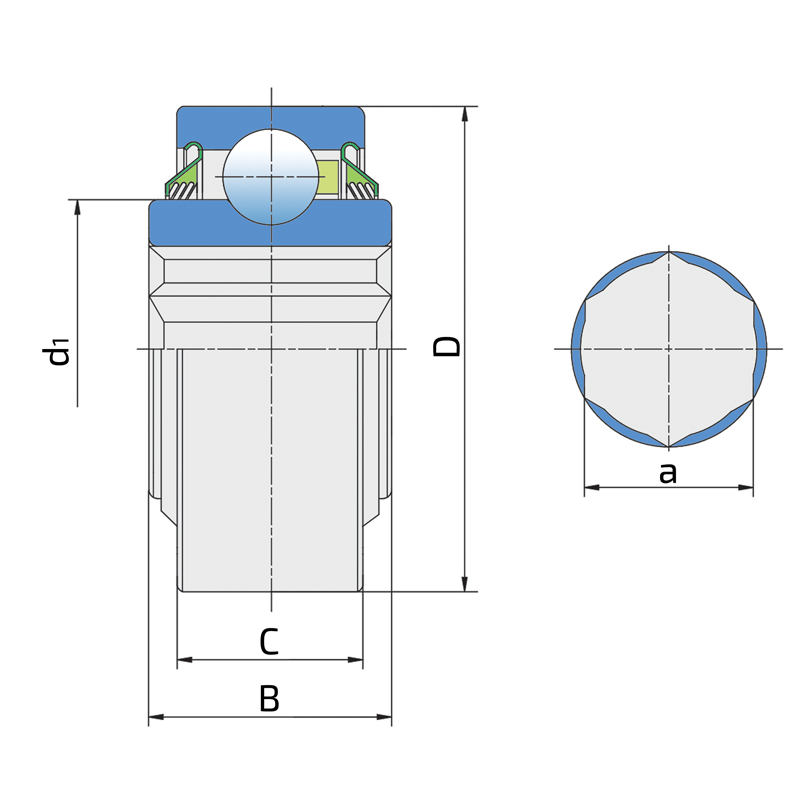

| D | Outside diameter | 2.8346 inch |
| D | Outside diameter | 72 mm |
| B | Width inner ring | 1.484 inch |
| B | Width inner ring | 37.7 mm |
| C | Width outer ring | 0.669 inch |
| C | Width outer ring | 17 mm |
| d1 | Outer diameter inner ring | 1.815 inch |
| d1 | Outer diameter inner ring | 46.1 mm |
| a | Hexagonal bore | 1.251 inch |
| a | Hexagonal bore | 31.78 mm |
| a | Shaft size | 1 1/4 inch |
| a1 | Diagonal of the hexagon | 1.433 inch |
| a1 | Diagonal of the hexagon | 36.4 mm |
| d | Bore diameter | 1.28 inch |
| d | Bore diameter | 32.5 mm |
| Cdyn | Dynamic load rating | 5700 lbs |
| Cdyn | Dynamic load rating | 25.5 kN |
| Co | Static load rating | 3400 lbs |
| Co | Static load rating | 15.3 kN |
| kg | Mass | 1 lbs |
| kg | Mass | 0.45 kg |

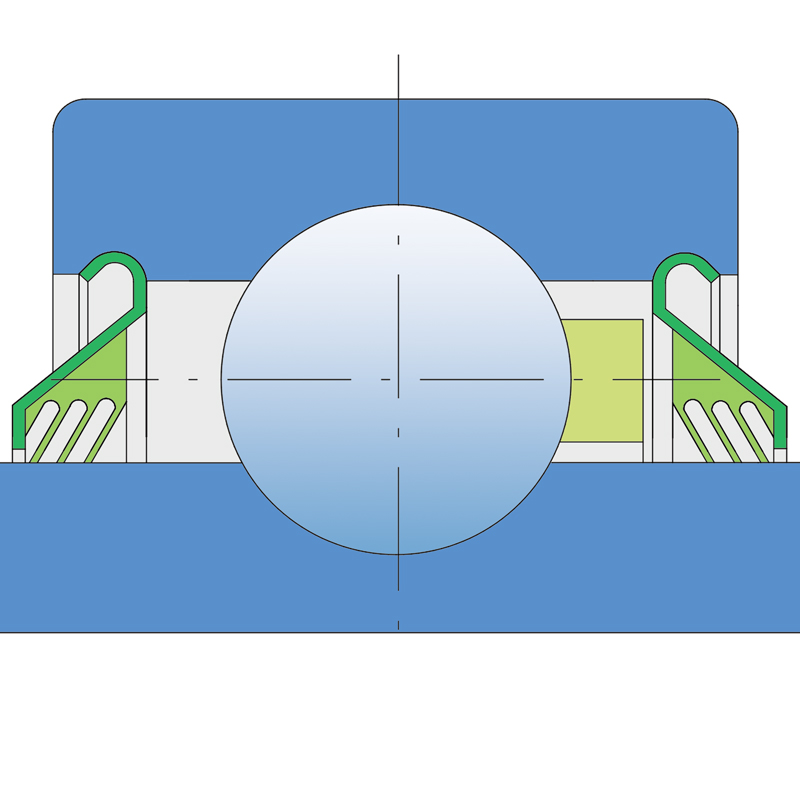

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| INA | 207KPP3 |
| NTN | 207KPP3 |
| TIMKEN | 207KPP3 |
| FAFNIR | 207KPP3 |
