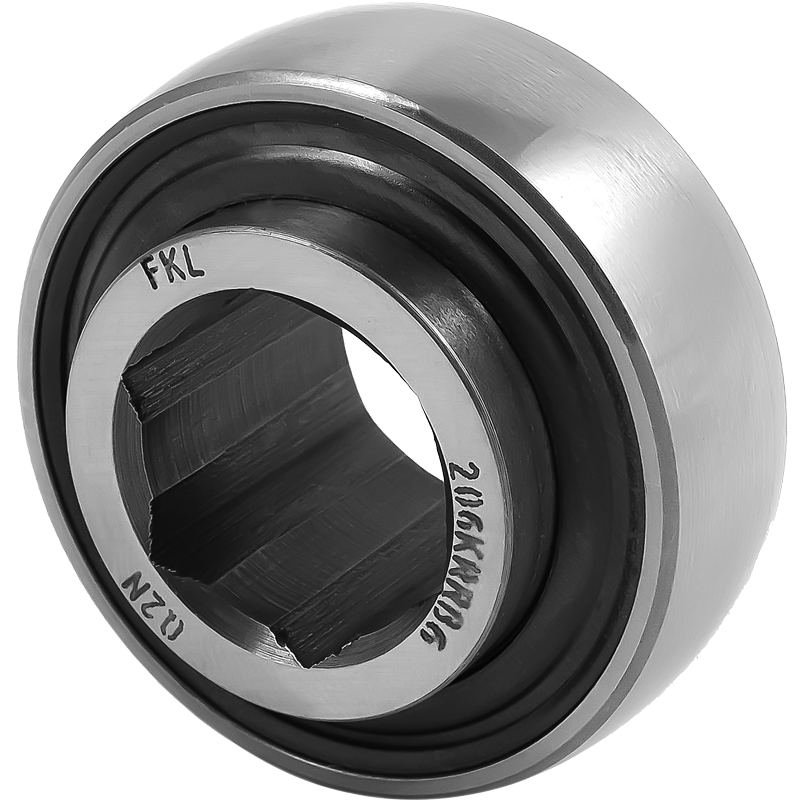

206KRRB6

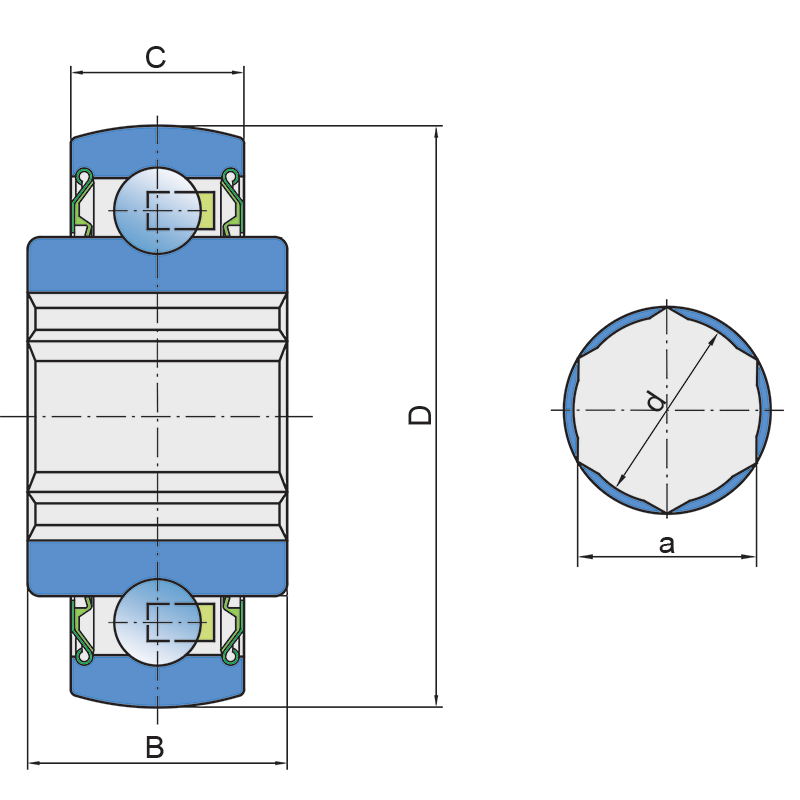

Technical specifications
| D | Outside diameter | 2.4409 inch |
| D | Outside diameter | 62 mm |
| B | Width inner ring | 0.945 inch |
| B | Width inner ring | 24 mm |
| C | Width outer ring | 0.63 inch |
| C | Width outer ring | 16 mm |
| d1 | Outer diameter inner ring | 1.563 inch |
| d1 | Outer diameter inner ring | 39.7 mm |
| a | Hexagonal bore | 1.001 inch |
| a | Hexagonal bore | 25.43 mm |
| a | Shaft size | 1 inch |
| a1 | Diagonal of the hexagon | 1.152 inch |
| a1 | Diagonal of the hexagon | 29.26 mm |
| d | Bore diameter | 1.02 inch |
| d | Bore diameter | 26 mm |
| Cdyn | Dynamic load rating | 4400 lbs |
| Cdyn | Dynamic load rating | 19.5 kN |
| Co | Static load rating | 2500 lbs |
| Co | Static load rating | 11.3 kN |
| kg | Mass | 0.75 lbs |
| kg | Mass | 0.34 kg |

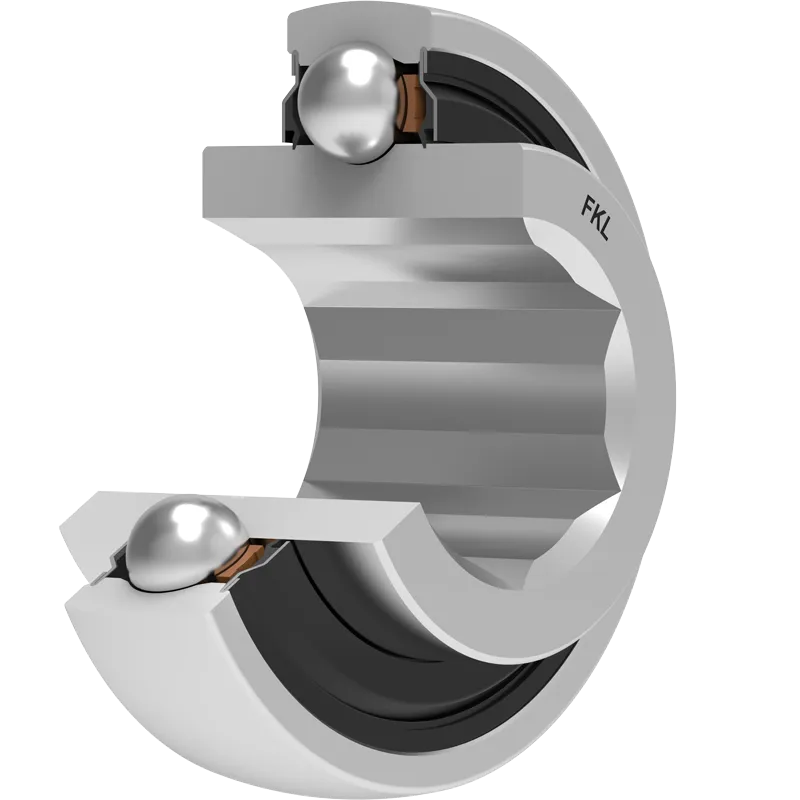

S SEAL / S SEAL (2S)
Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
Cross references
| CASE | 203389C91 |
| INA | 206KRRB6 |
| NTN | 2AH06-1 |
| FAFNIR | 206KRRB6 |
| NEW HOLLAND | 135241 |
| CASE | 211587C91 |
| JOHN DEERE | JD9407 |
| CASE | 84330028 |
| JOHN DEERE | JD9313 |
| FAFNIR | 206KRRB6 |
| BCA | HPS100GP |
| NTN | 2AH06-1 |
| INA | SK100-206KRRB.AH11 |
| NTN | 2AH06-1/L |
| NTN | 2AH06-1LLX |
| GEHL | 053719 |
| KABAT | 206KRRB6 |
| LONG MANUFACTURING N.C. | 9-90325 |
Installations
| JOHN DEERE | 50; 50A |
