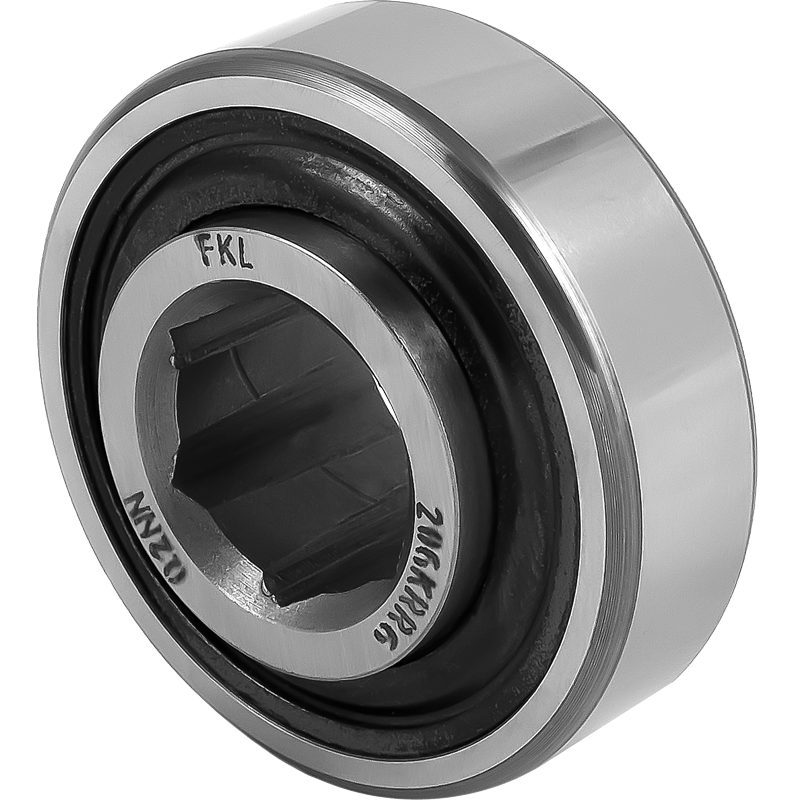

206KRR6

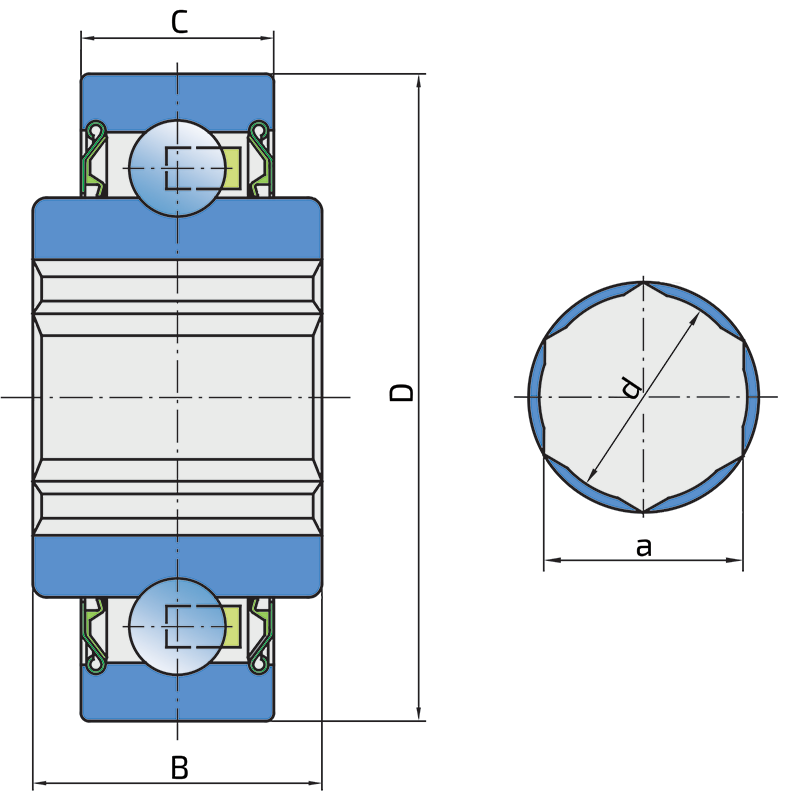

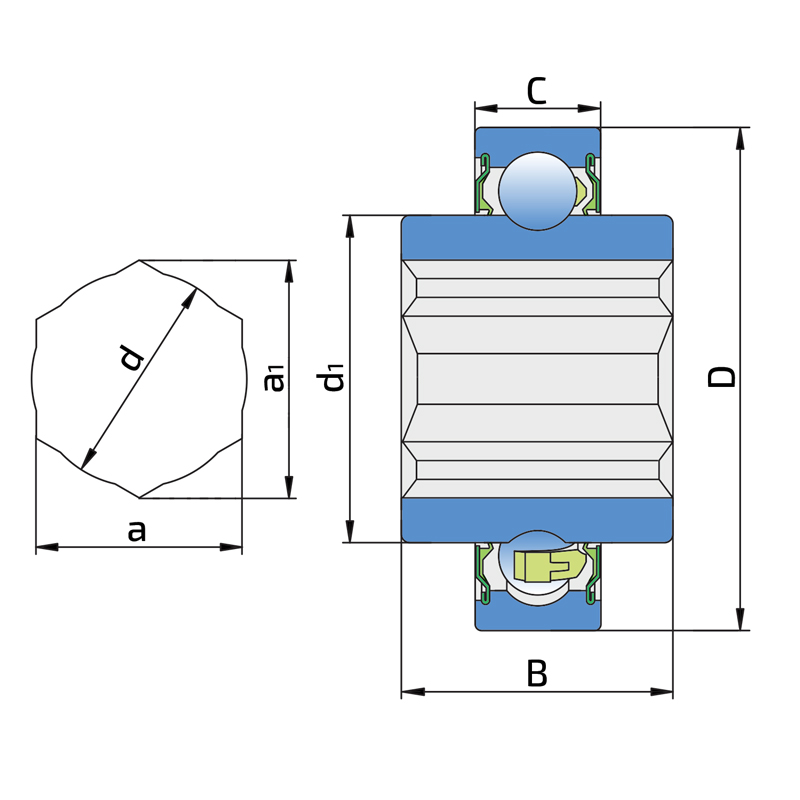

Technical specifications
| D |
Outside diameter |
2.4409 inch |
| kg |
Mass |
0.75 lbs |
| Co |
Static load rating |
11.3 kN |
| Co |
Static load rating |
2500 lbs |
| Cdyn |
Dynamic load rating |
19.5 kN |
| Cdyn |
Dynamic load rating |
4400 lbs |
| a |
Shaft size |
25.43 mm |
| a |
Shaft size |
1 inch |
| d1 |
Outer diameter inner ring |
39.7 mm |
| d1 |
Outer diameter inner ring |
1.563 inch |
| C |
Width outer ring |
16 mm |
| C |
Width outer ring |
0.63 inch |
| B |
Width inner ring |
24 mm |
| B |
Width inner ring |
0.945 inch |
| D |
Outside diameter |
62 mm |
| kg |
Mass |
0.34 kg |

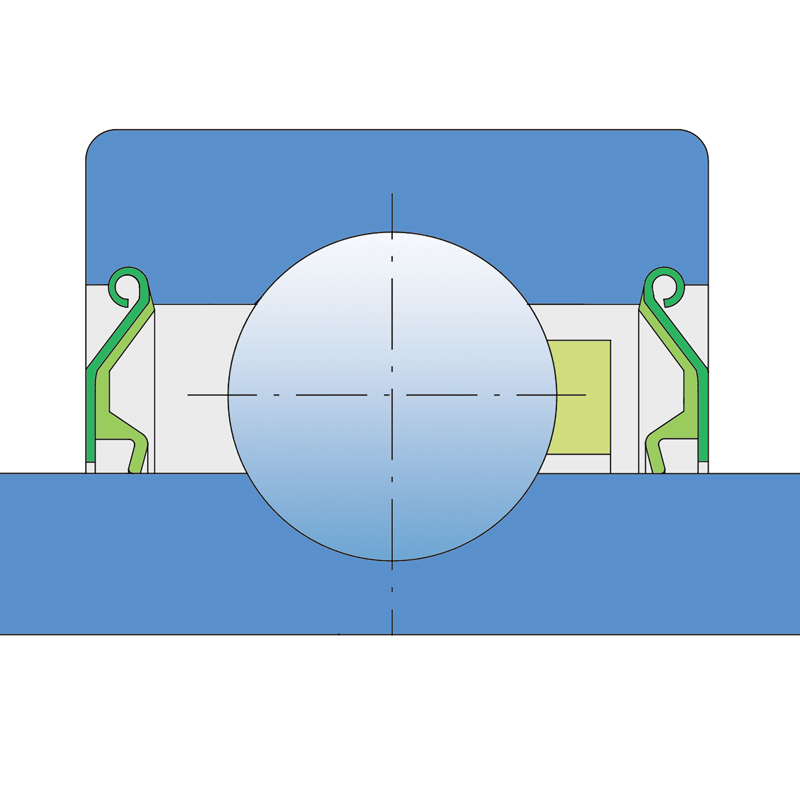

S SEAL / S SEAL (2S)
Single lip seal with the labyrinth between the sheet part and
the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much
better protection against the rough impurity particles. This
is very good sealing system: the sheet part protects the seal
from the soil, dust and rough particles. At the same time
makes the labyrinth with the rubber part. The rubber part
provides contact sealing which prevents penetration of finer
impurities, water, moisture, steam etc. Suitable for neutral
conditions because of the presence of the foreign materials.
It is used with the Y bearing (standard) and deep groove ball
bearings.
Cross references
| INA |
206KRR6 |
| JOHN DEERE |
JD9338 |
| FAFNIR |
206KRR6 |
| BCA |
HPC100GP |
| NTN |
1AH06-1 |
| INA |
SK100-206KRR.AH11 |
| NTN |
1AH06-1LLSV9 |
| NTN |
1AH06-1LLS |
| NTN |
1AH06-1LLX |
| INA |
SK100-206-KRR-AH11 |
| NTN |
1AH06-1V |
| KABAT |
206KRR6 |
