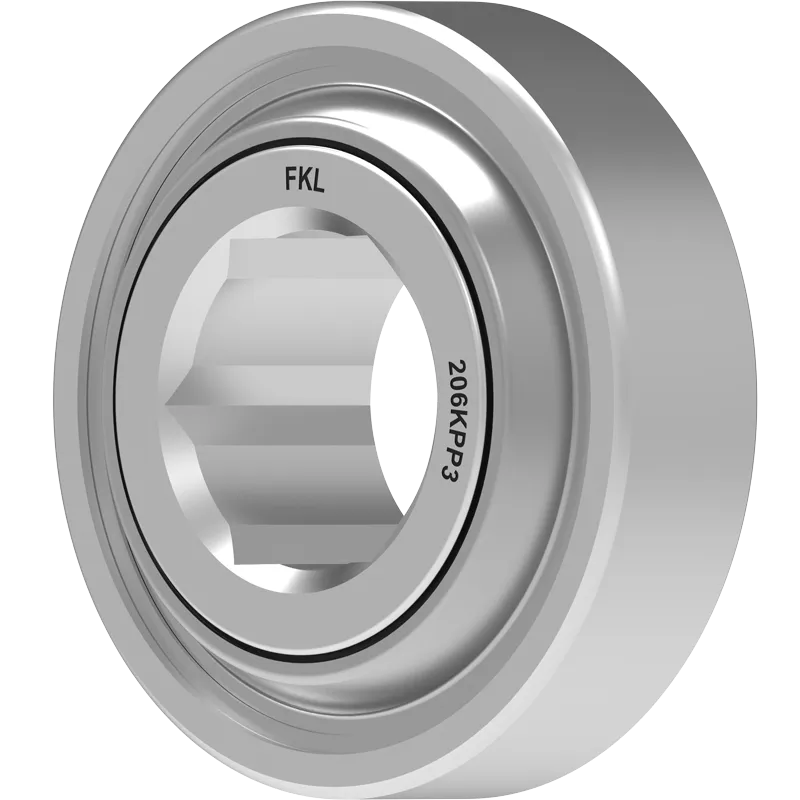

206KPP3

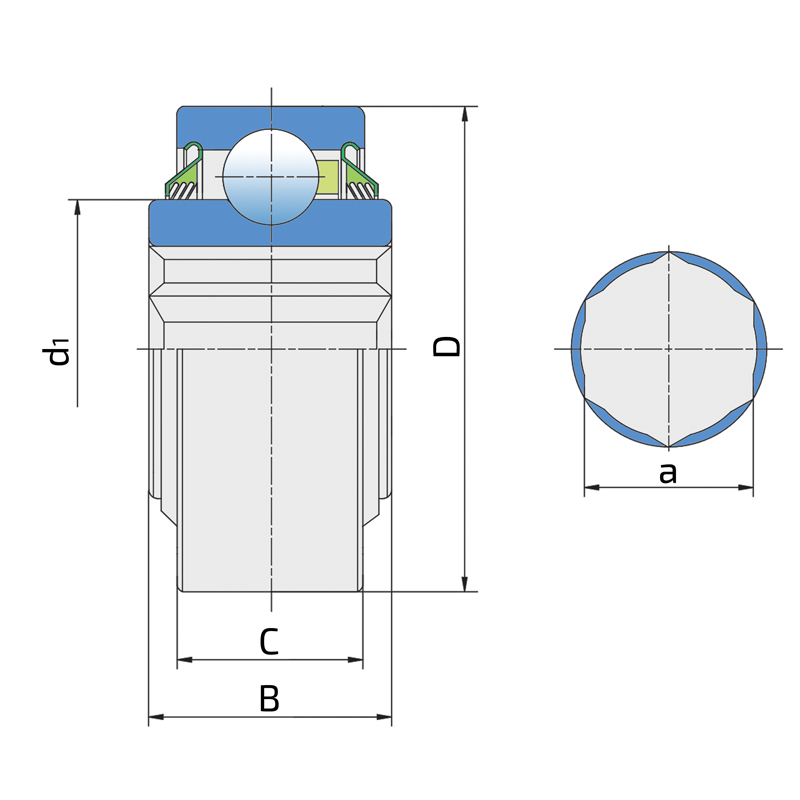

Technical specifications
| D |
Outside diameter |
2.4409 inch |
| D |
Outside diameter |
62 mm |
| B |
Width inner ring |
0.945 inch |
| B |
Width inner ring |
24 mm |
| C |
Width outer ring |
0.63 inch |
| C |
Width outer ring |
16 mm |
| d1 |
Outer diameter inner ring |
1.563 inch |
| d1 |
Outer diameter inner ring |
39.7 mm |
| a |
Shaft size |
1 inch |
| a |
Shaft size |
25.43 mm |
| kg |
Mass |
0.4 kg |
| Cdyn |
Dynamic load rating |
4400 lbs |
| Cdyn |
Dynamic load rating |
19.5 kN |
| Co |
Static load rating |
2500 lbs |
| Co |
Static load rating |
11.3 kN |
| Pu |
Fatigue load limit |
0.475 kN |

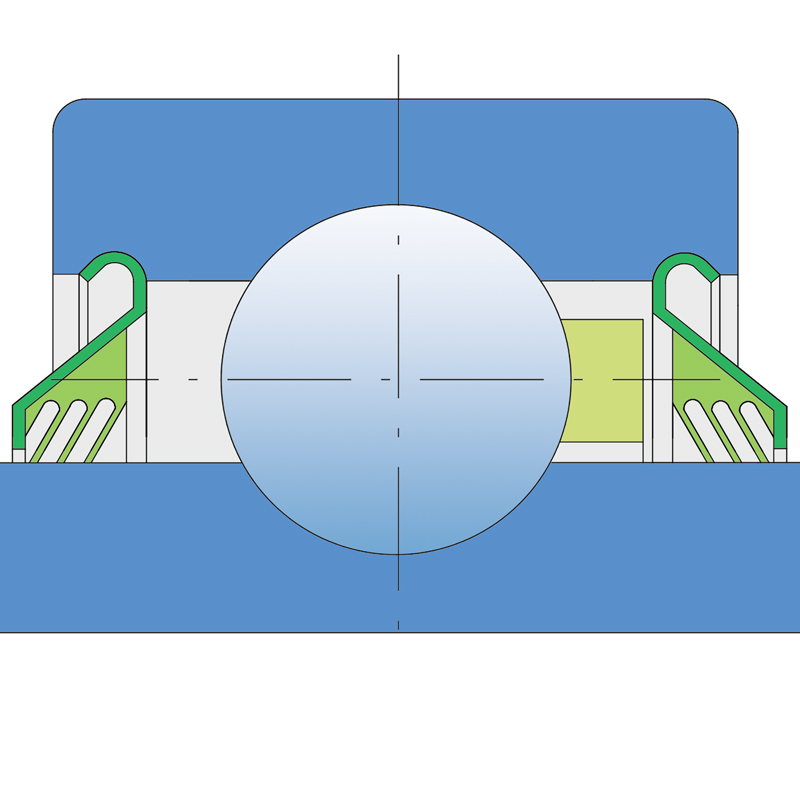

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
Cross references
| INA |
206KPP3 |
| NTN |
1AH06-1LLSV9 |
| INA |
SK100-206KRR.AH11 |
