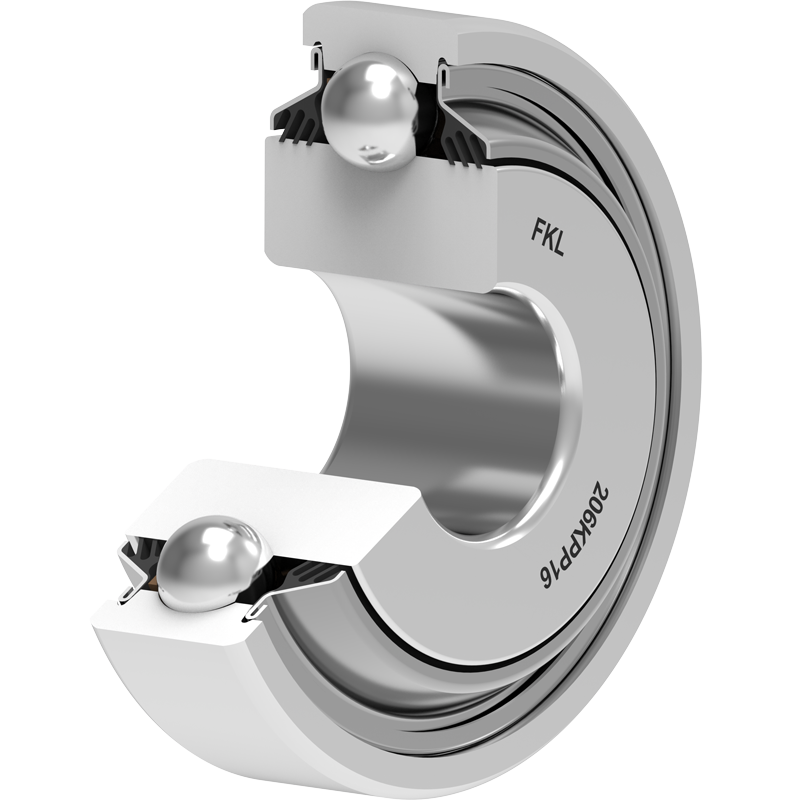

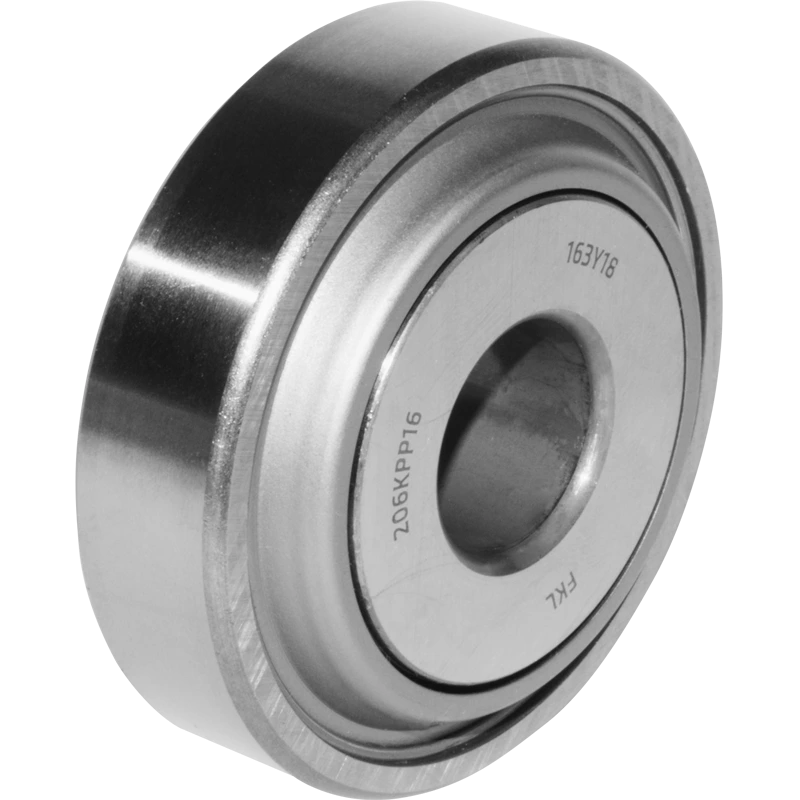

206KPP16

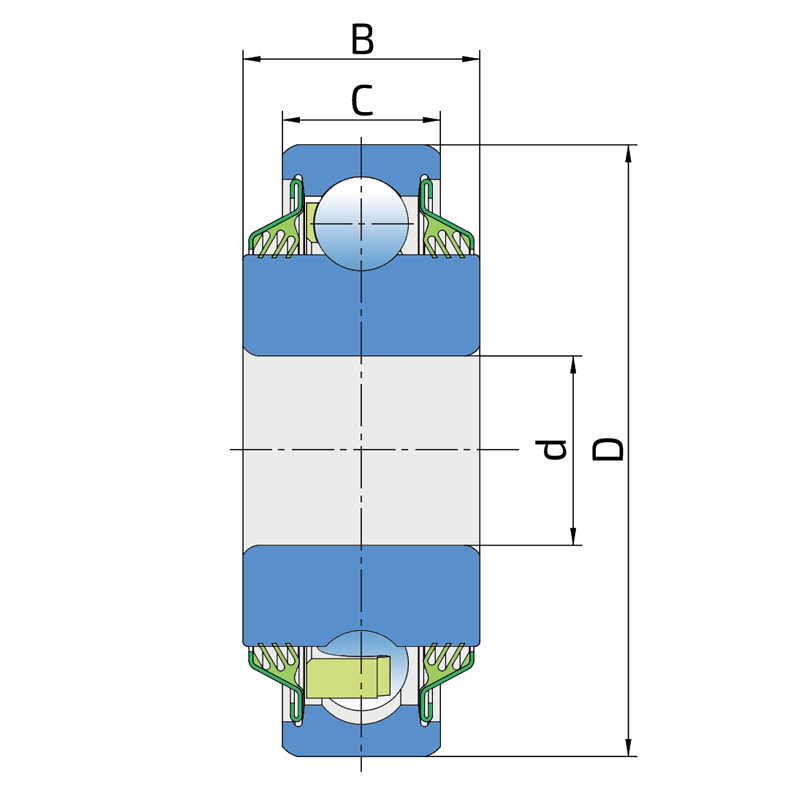

Technical specifications
| d | Bore diameter | 19.202 mm |
| D | Outside diameter | 62 mm |
| B | Width inner ring | 24 mm |
| C | Width outer ring | 16 mm |
| kg | Mass | 0.31 kg |
| Cdyn | Dynamic load rating | 19.5 kN |
| Co | Static load rating | 11.3 kN |
| Pu | Fatigue load limit | 0.475 kN |

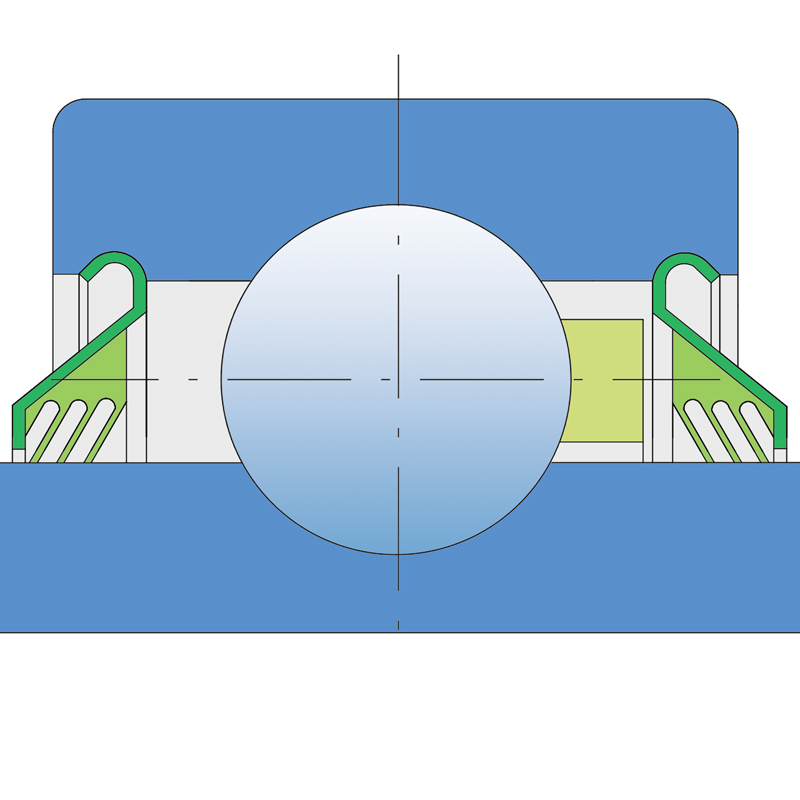

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| PEER | PER.206RPP16 |
| SKF | PER.206RPP16 |
| BBC-R | 206 KPP16.LV |
| PEER | 206KPP16 |
| NEW HOLLAND | 7012998 |
| ORTHMAN | 120-070 |
| KRAUSE | 40-171 |
| BCA | 206GGH |
| FAFNIR | 206KPP16 |
