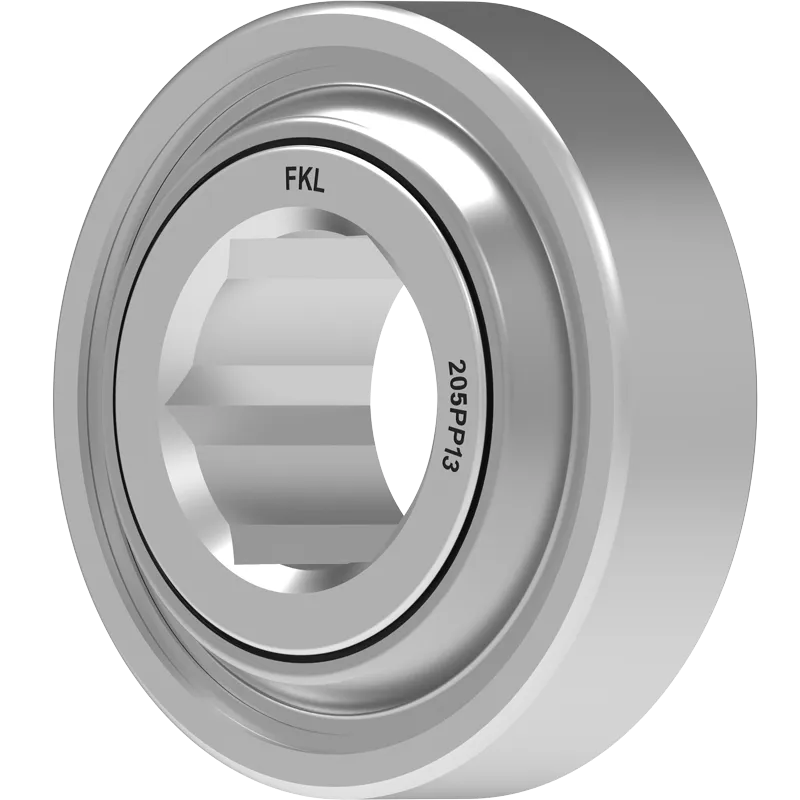

205PP13
Technical specifications

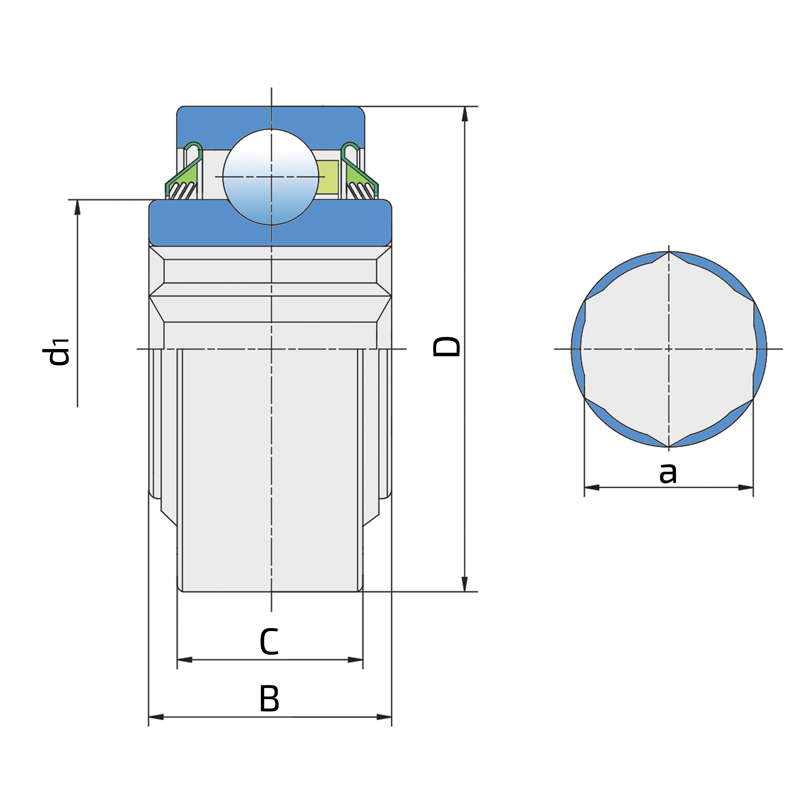

| D |
Outside diameter |
2.0472 inch |
| kg |
Mass |
0.44 lbs |
| Co |
Static load rating |
7.8 kN |
| Co |
Static load rating |
1700 lbs |
| Cdyn |
Dynamic load rating |
14 kN |
| Cdyn |
Dynamic load rating |
3100 lbs |
| a |
Shaft size |
22.25 mm |
| a |
Shaft size |
7/8 inch |
| d1 |
Outer diameter inner ring |
33.6 mm |
| d1 |
Outer diameter inner ring |
1.323 inch |
| C |
Width outer ring |
15 mm |
| C |
Width outer ring |
0.591 inch |
| B |
Width inner ring |
25.4 mm |
| B |
Width inner ring |
1 inch |
| D |
Outside diameter |
52 mm |
| kg |
Mass |
0.2 kg |

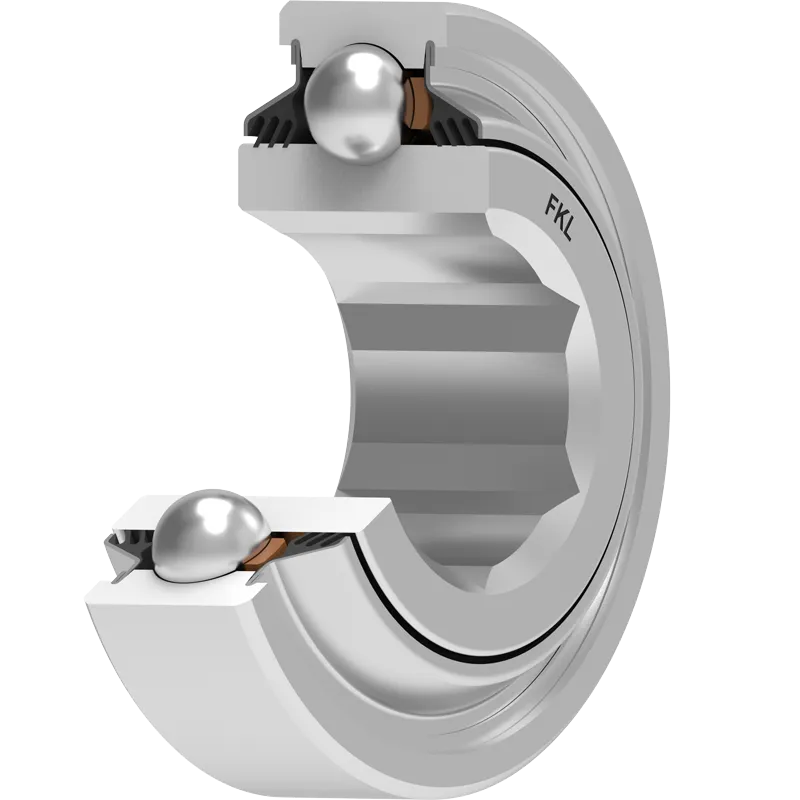

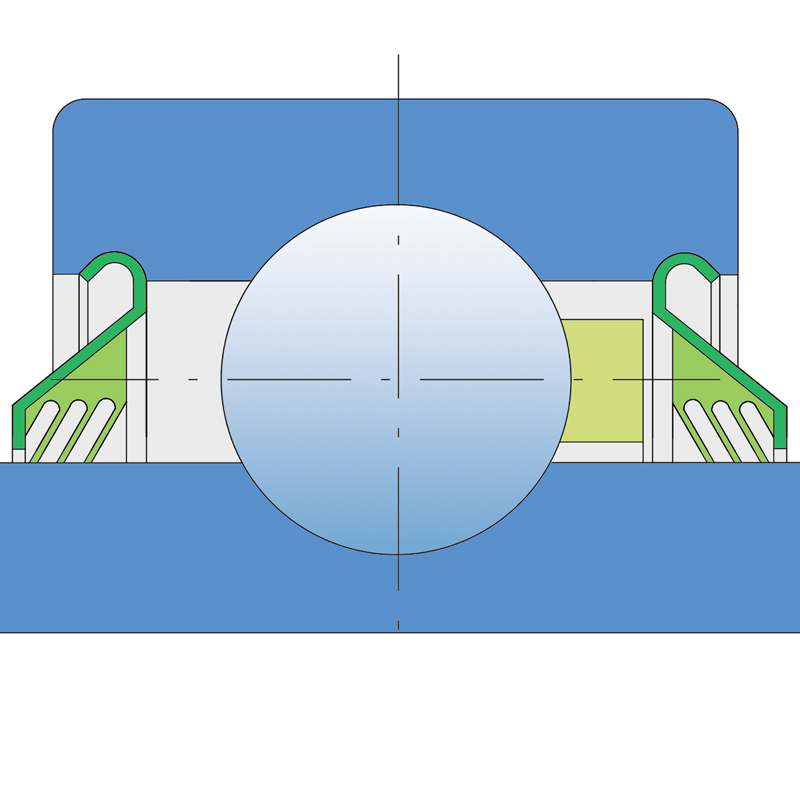

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
