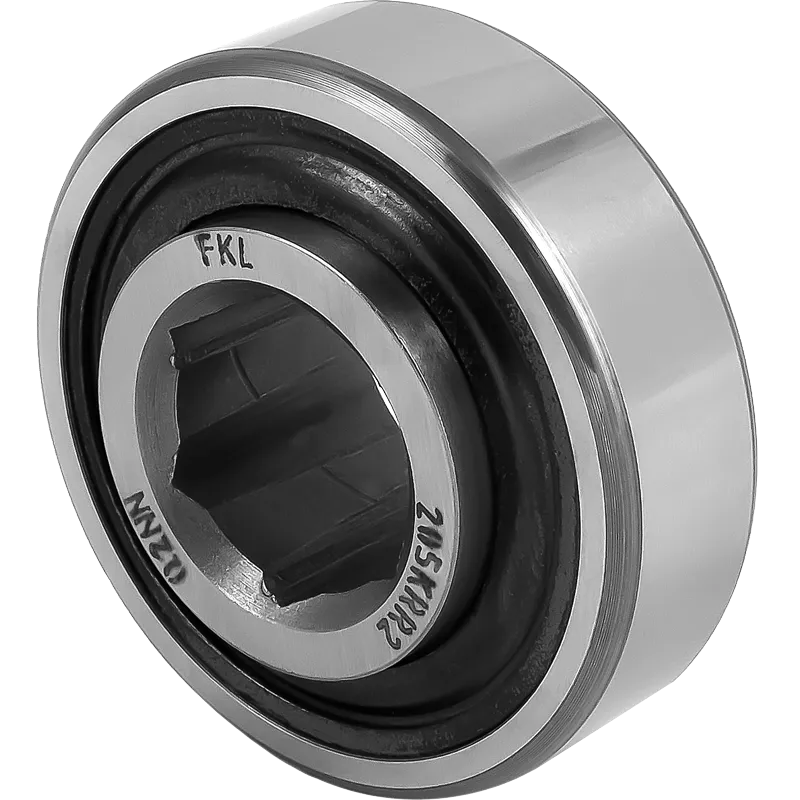

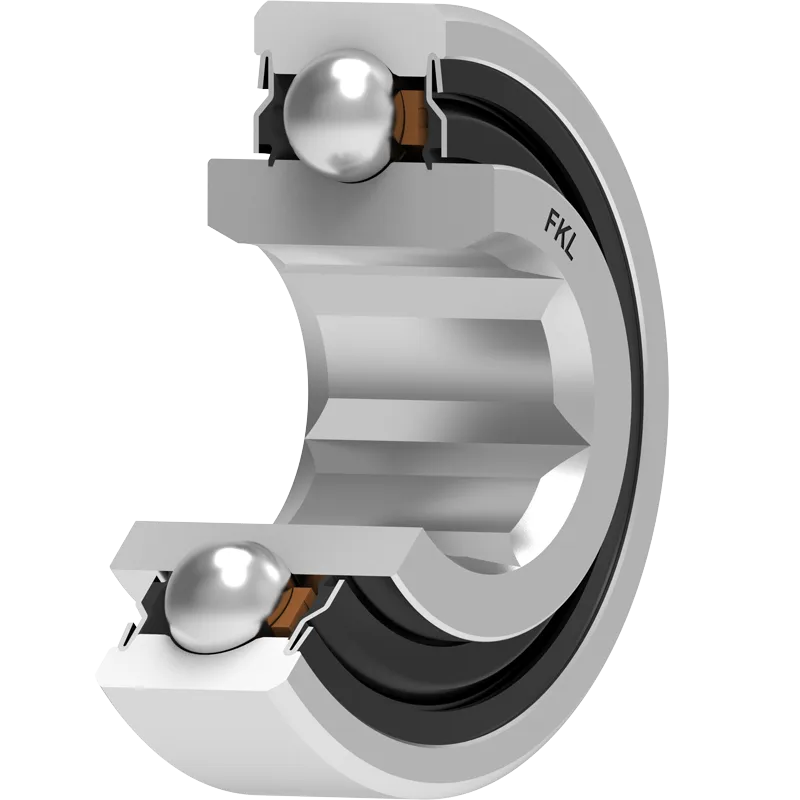

205KRR2

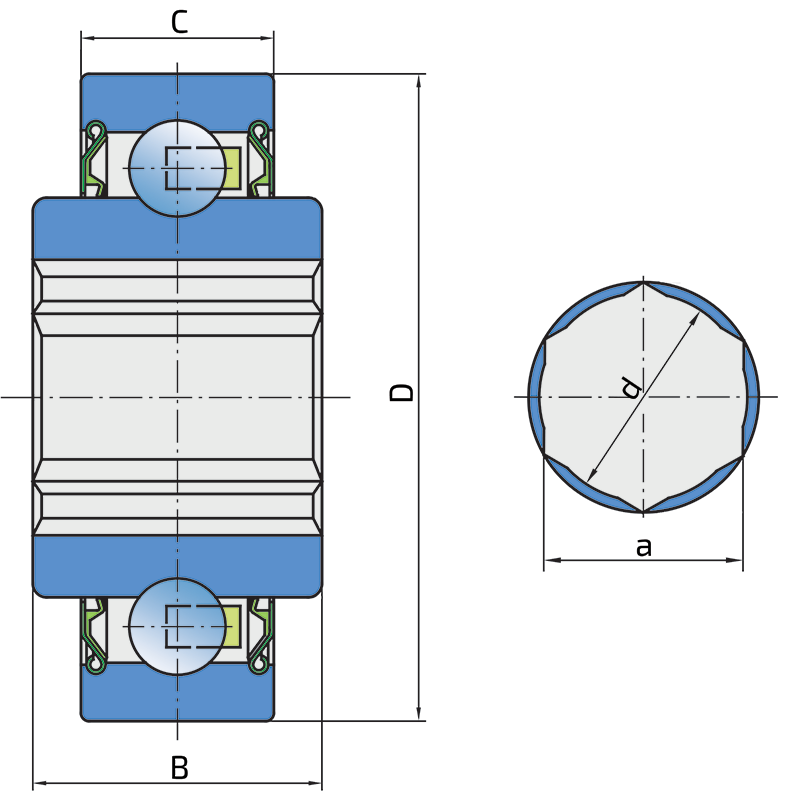

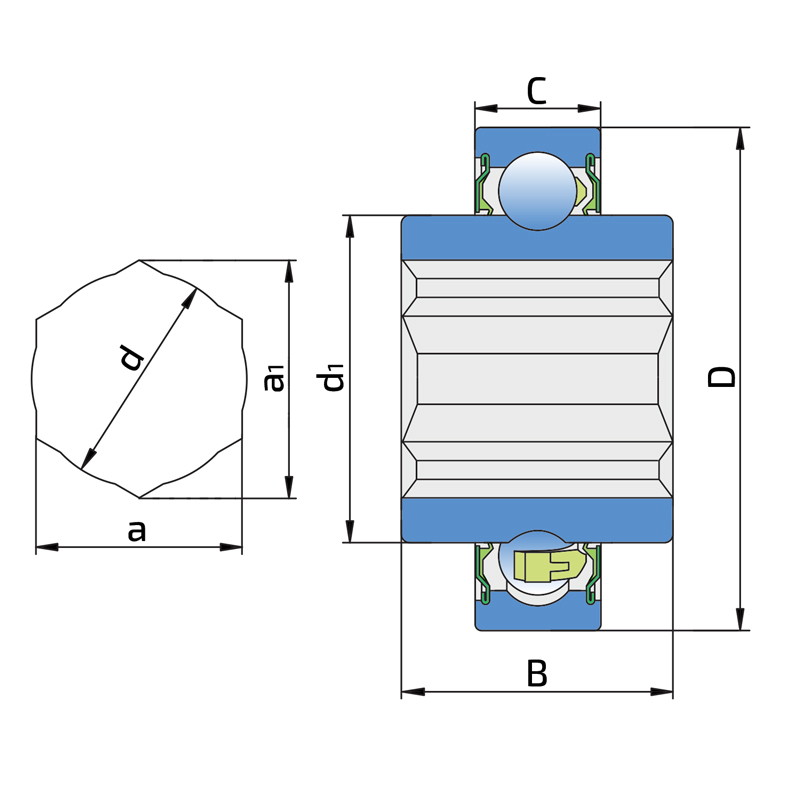

Technical specifications
| D | Outside diameter | 2.0472 inch |
| kg | Mass | 0.44 lbs |
| Co | Static load rating | 7.8 kN |
| Co | Static load rating | 1700 lbs |
| Cdyn | Dynamic load rating | 14 kN |
| Cdyn | Dynamic load rating | 3100 lbs |
| a | Shaft size | 22.25 mm |
| a | Shaft size | 7/8 inch |
| d1 | Outer diameter inner ring | 33.6 mm |
| d1 | Outer diameter inner ring | 1.323 inch |
| C | Width outer ring | 15 mm |
| C | Width outer ring | 0.591 inch |
| B | Width inner ring | 25.4 mm |
| B | Width inner ring | 1 inch |
| D | Outside diameter | 52 mm |
| kg | Mass | 0.2 kg |

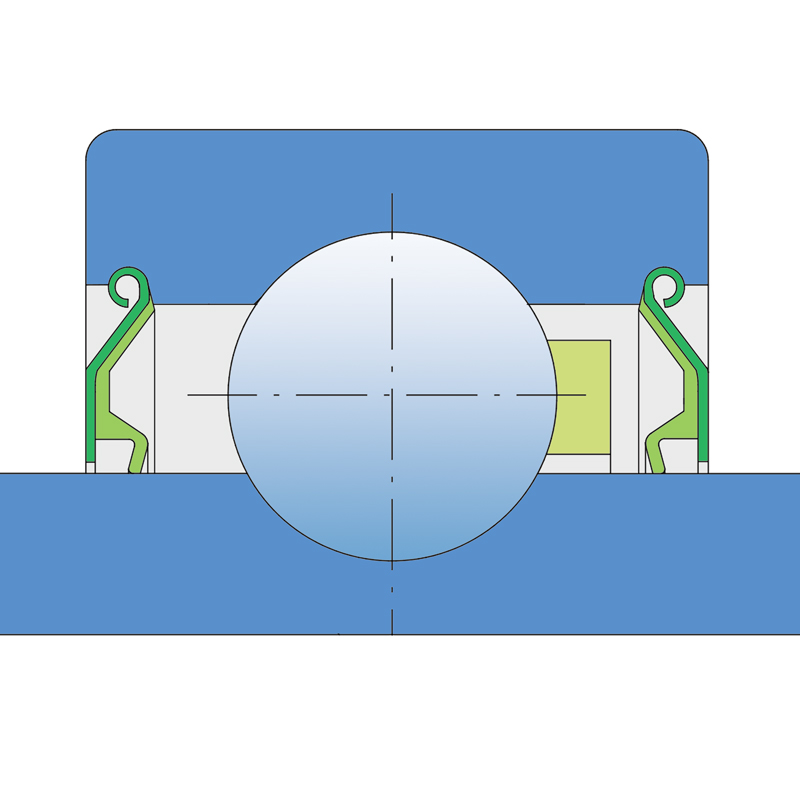

S SEAL / S SEAL (2S)
Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
Cross references
| KINZE | GA5116 |
| NEW HOLLAND | 49436 |
| FAFNIR | 205KRR2 |
| BCA | HPC014GP |
| JOHN DEERE | AA28271 |
| JOHN DEERE | AE29876 |
| NTN | 1AH05-7/8 |
| MASSEY FERGUSON | 842696M1 |
| PEER | 205KRR2 |
| PFI | 205KRR2 |
| NTN | 1AH05-7/8LLM |
| KABAT | 205KRR2 |
Installations
| KINZE | 2000/3000 SERIES PLANTERS |
