205KPPB2

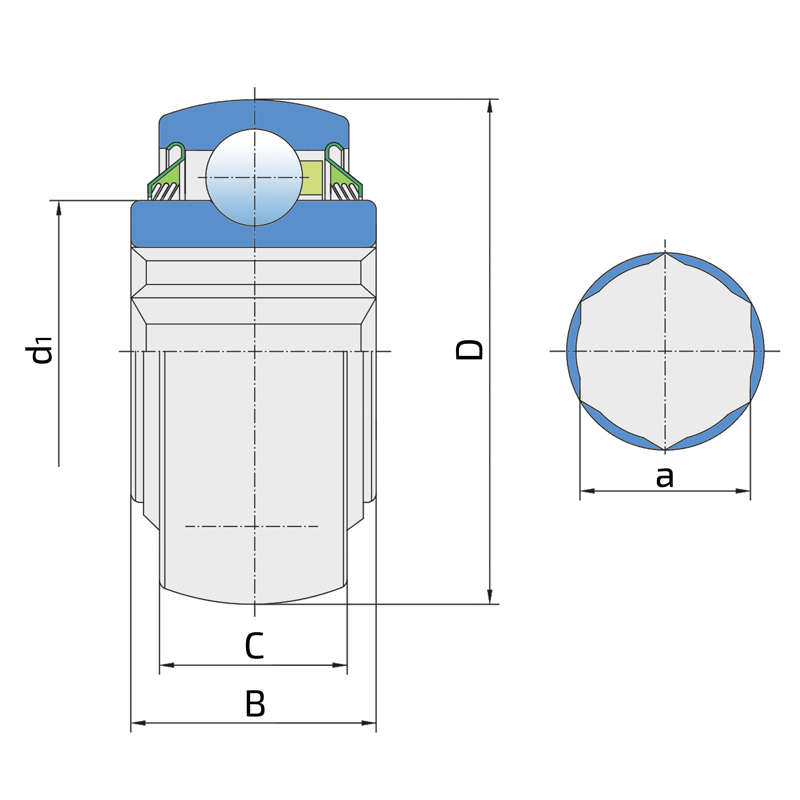

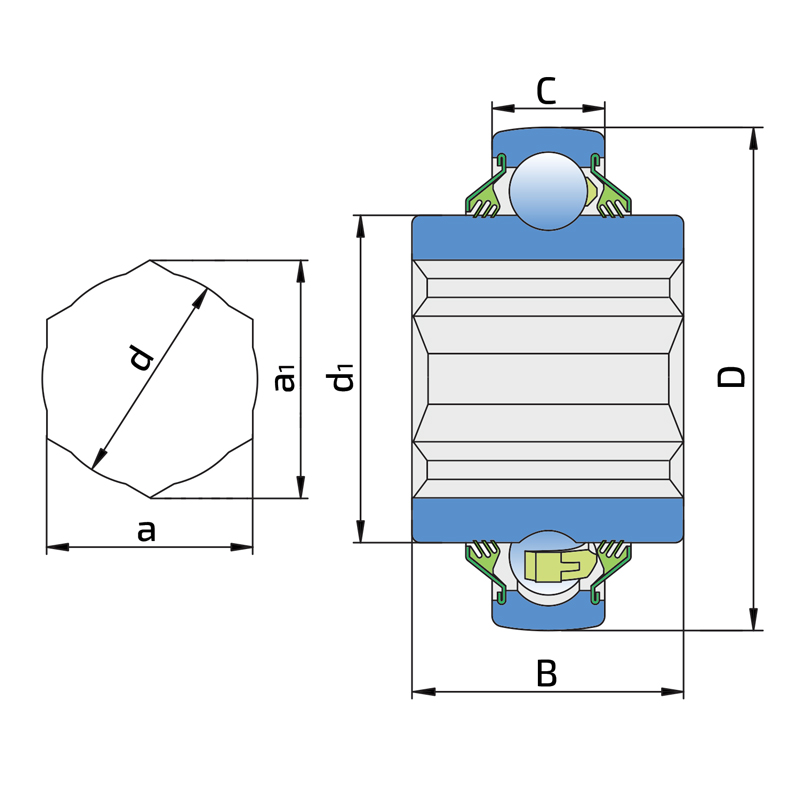

Technical specifications
| D | Outside diameter | 2.0472 inch |
| D | Outside diameter | 52 mm |
| B | Width inner ring | 1 inch |
| B | Width inner ring | 25.4 mm |
| C | Width outer ring | 0.591 inch |
| C | Width outer ring | 15 mm |
| d1 | Outer diameter inner ring | 1.329 inch |
| d1 | Outer diameter inner ring | 33.74 mm |
| a | Hexagonal bore | 0.875 inch |
| a | Hexagonal bore | 22.25 mm |
| a | Shaft size | 7/8 inch |
| a1 | Diagonal of the hexagon | 1.01 inch |
| a1 | Diagonal of the hexagon | 25.65 mm |
| d | Bore diameter | 0.898 inch |
| d | Bore diameter | 22.8 mm |
| Cdyn | Dynamic load rating | 3100 lbs |
| Cdyn | Dynamic load rating | 14 kN |
| Co | Static load rating | 1700 lbs |
| Co | Static load rating | 7.8 kN |
| kg | Mass | 0.44 lbs |
| kg | Mass | 0.2 kg |

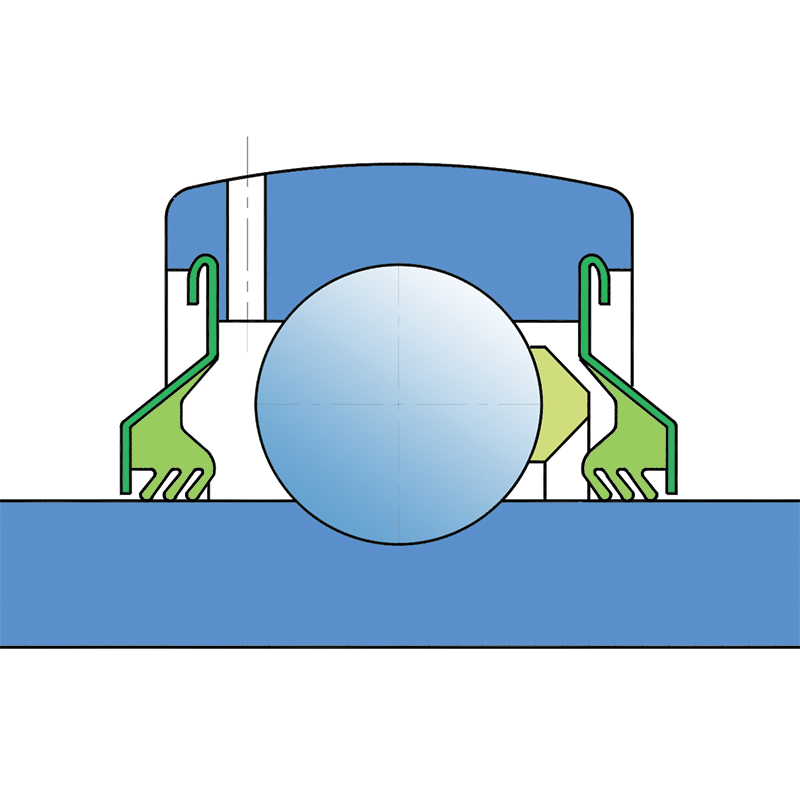

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
