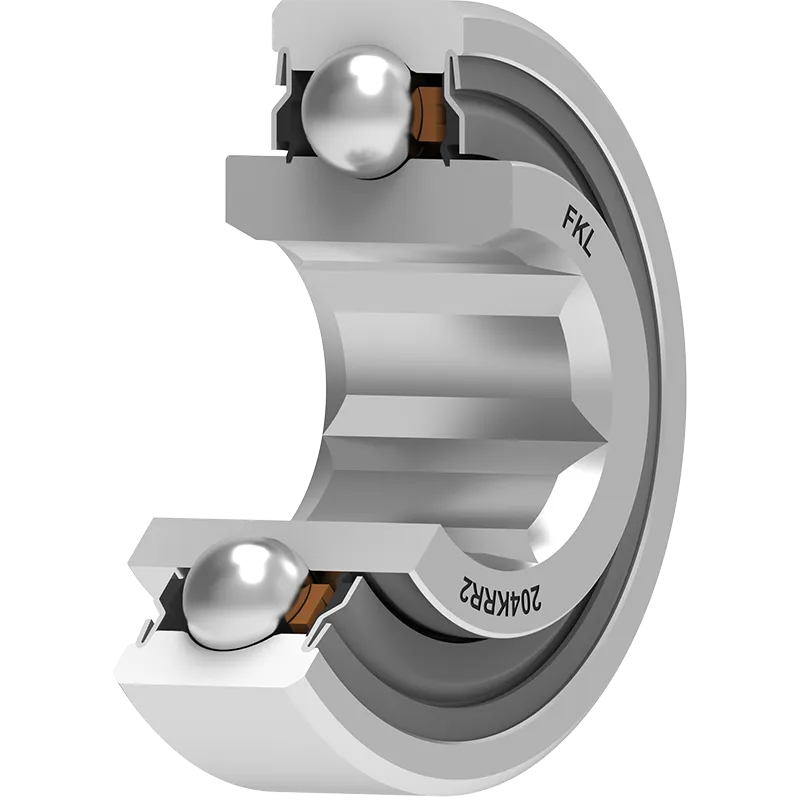

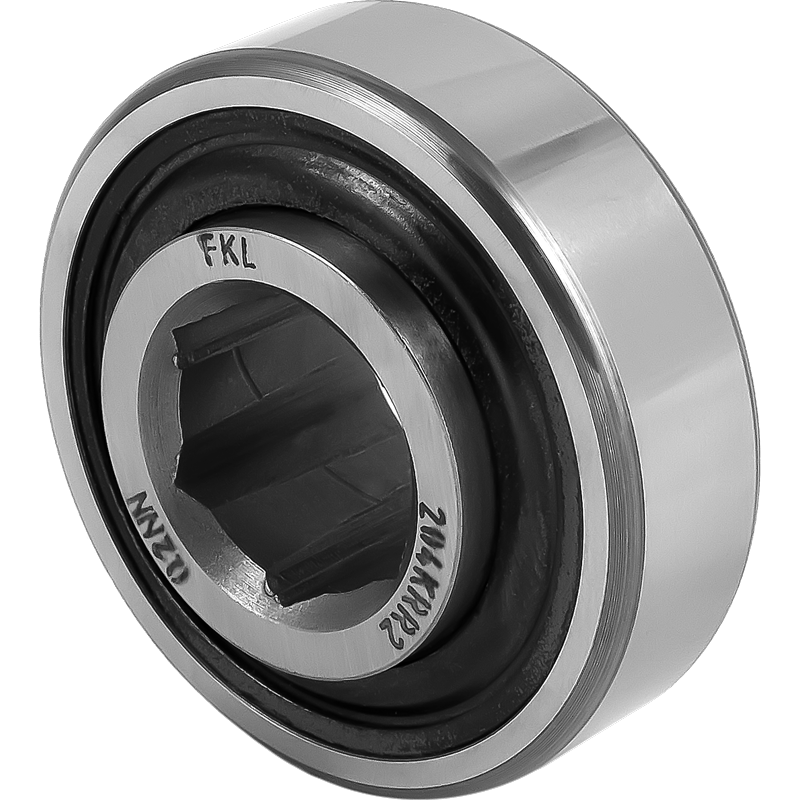

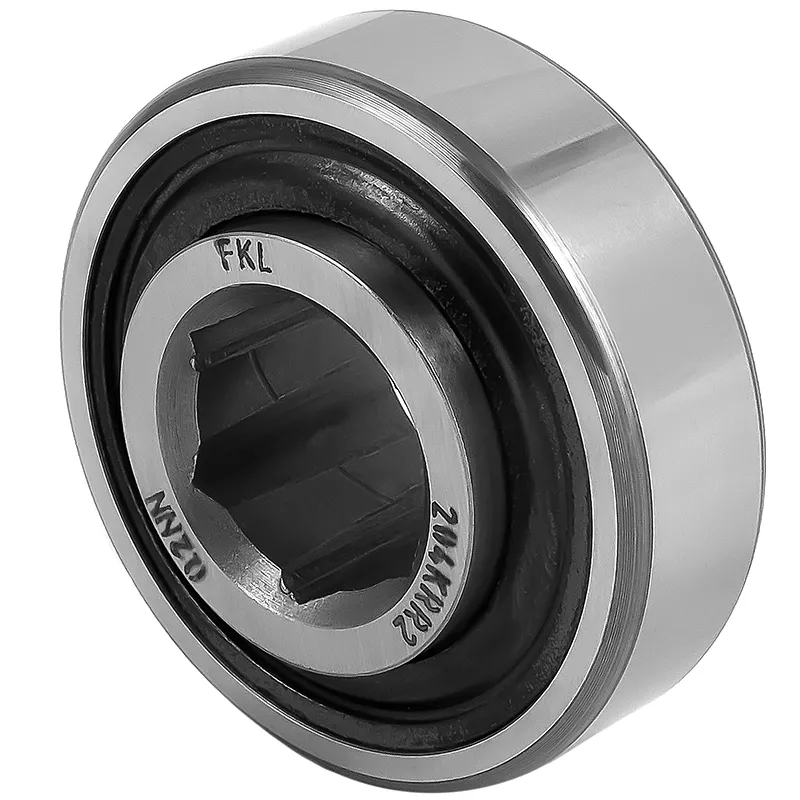

204KRR2

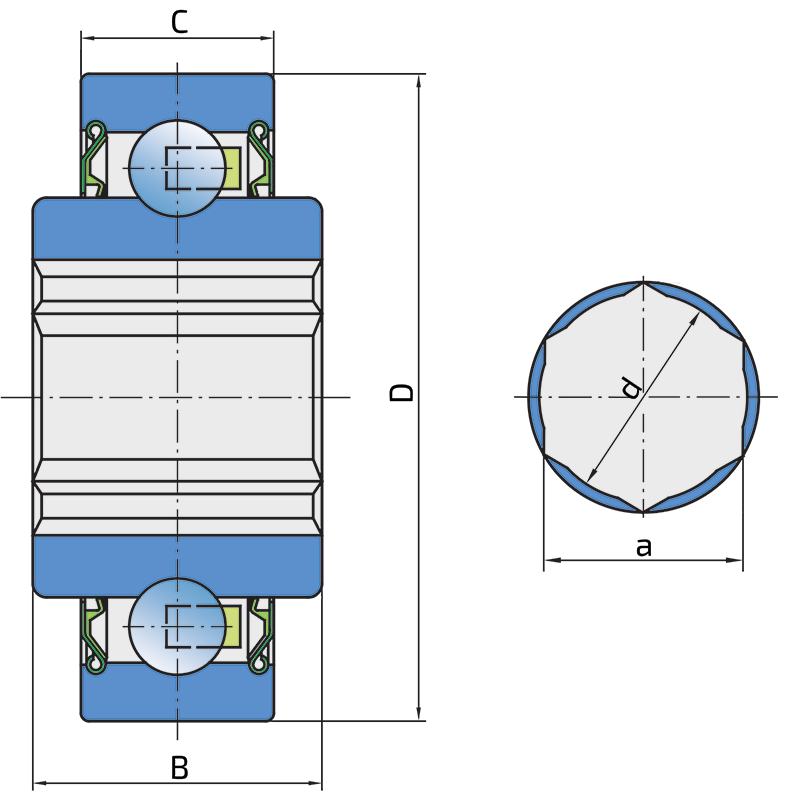

Technical specifications
| a | Hexagonal bore | 0.6949 inch |
| a | Hexagonal bore | 17.65 mm |
| a | Shaft size | 11/16 inch |
| a1 | Diagonal of the hexagon | 0.797 inch |
| a1 | Diagonal of the hexagon | 20.24 mm |
| D | Outside diameter | 1.85 inch |
| D | Outside diameter | 47 mm |
| B | Width inner ring | 0.825 inch |
| B | Width inner ring | 20.96 mm |
| C | Width outer ring | 0.551 inch |
| C | Width outer ring | 14 mm |
| d | Bore diameter | 0.717 inch |
| d | Bore diameter | 18.2 mm |
| d1 | Outer diameter inner ring | 1.11 inch |
| d1 | Outer diameter inner ring | 28.2 mm |
| kg | Mass | 0.15 kg |
| Cdyn | Dynamic load rating | 12.9 kN |
| Co | Static load rating | 6.6 kN |
| Pu | Fatigue load limit | 0.277 kN |

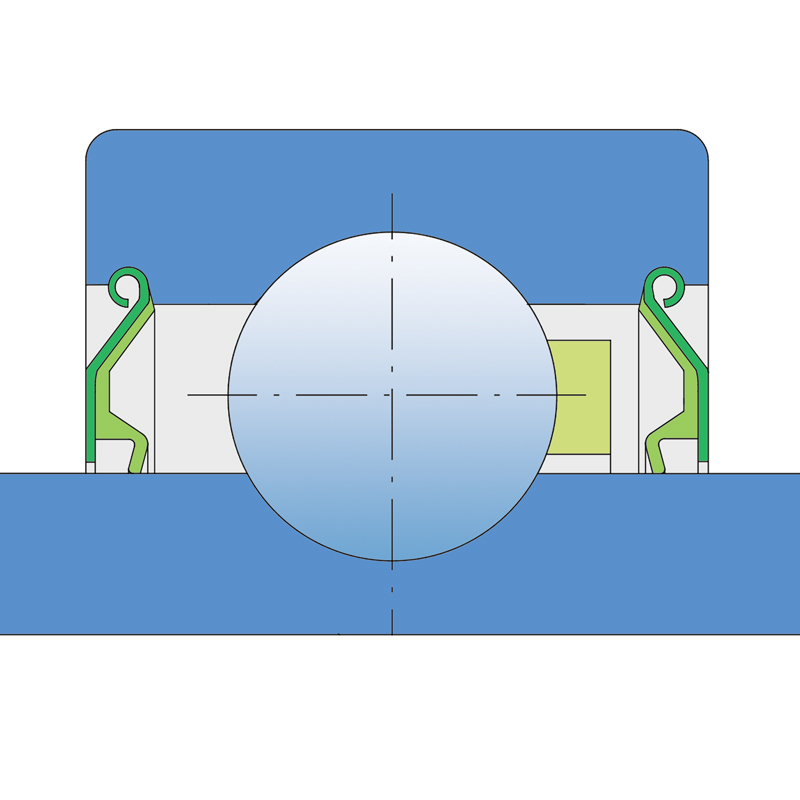

S SEAL / S SEAL (2S)
Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
Cross references
| INA | 204KRR2 |
| NTN | 1AH04-11/16 |
| FAFNIR | 204KRR2 |
| JOHN DEERE | JD7126 |
| JOHN DEERE | AXE10322 |
| TIMKEN | 204KRR2 |
| PEER | 204KRR2 |
| NDH | 1AH04-11/16 |
| KOYO | 88120A |
| MASSEY FERGUSON | PS01102 |
| CASE | 592141R91 |
| LINK BELT | 11KB204N |
| BCA | HPC011GP |
| GREAT PLAINS | 822-173C |
| JOHN DEERE | AH107148 |
| PFI | 204KRR2 |
| NTN | 1AH04-11/16LLM |
| JOHN DEERE | JD AXE46545 |
