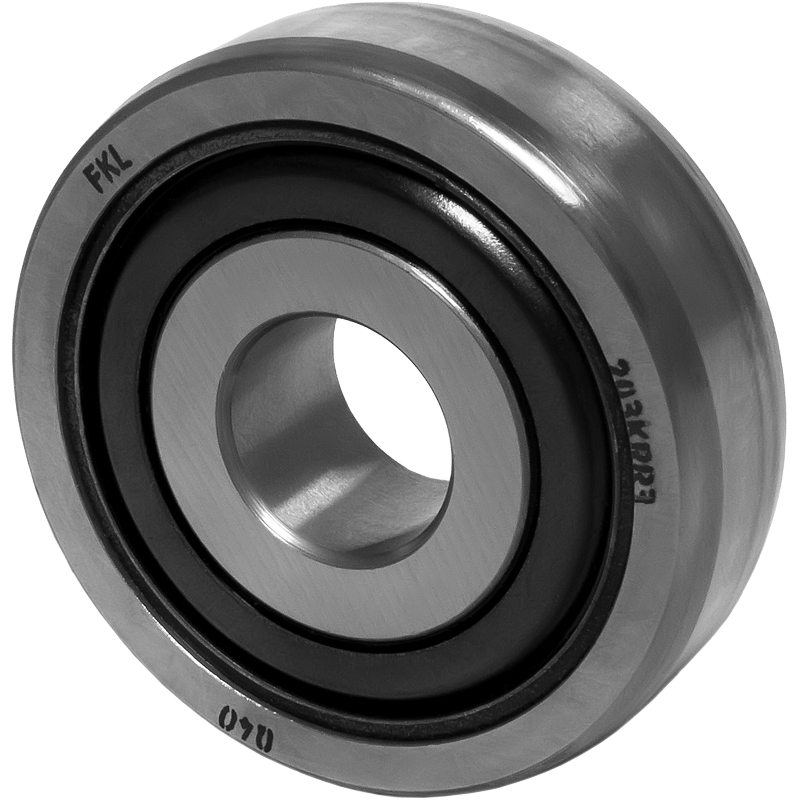

203KRR3

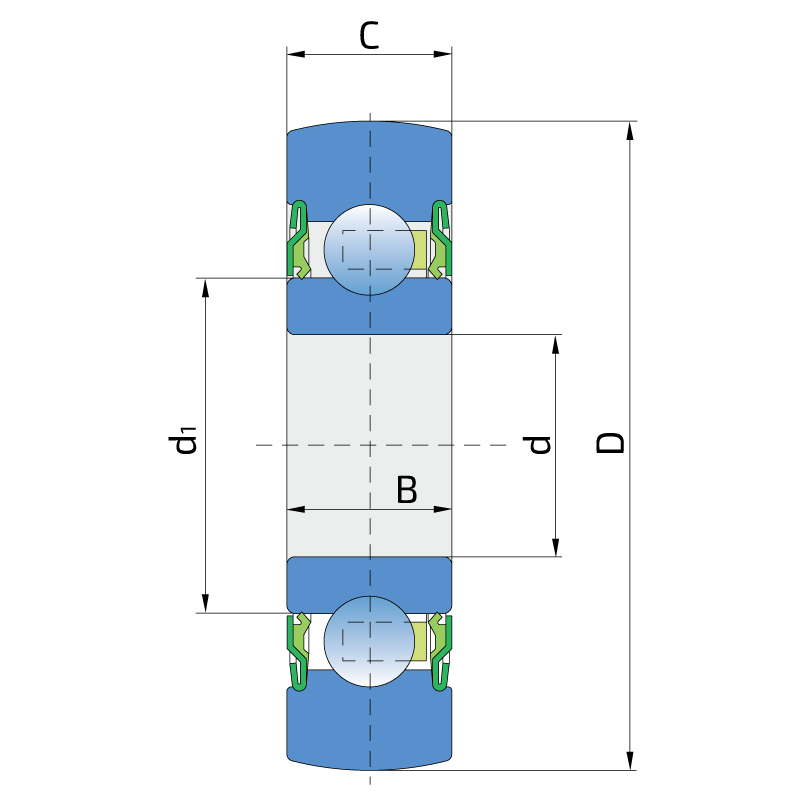

Technical specifications
| d |
Bore diameter |
0.6279 inch |
| kg |
Mass |
0.25 kg |
| kg |
Mass |
0.55 lbs |
| Co |
Static load rating |
6.55 kN |
| Co |
Static load rating |
1470 lbs |
| Cdyn |
Dynamic load rating |
12.7 kN |
| Cdyn |
Dynamic load rating |
2855 lbs |
| d1 |
Outer diameter inner ring |
27.5 mm |
| d1 |
Outer diameter inner ring |
1.083 inch |
| C |
Width outer ring |
15 mm |
| C |
Width outer ring |
0.591 inch |
| B |
Width inner ring |
15 mm |
| B |
Width inner ring |
0.591 inch |
| D |
Outside diameter |
50.8 mm |
| D |
Outside diameter |
2 inch |
| d |
Bore diameter |
15.95 mm |
| Pu |
Fatigue load limit |
0.275 kN |

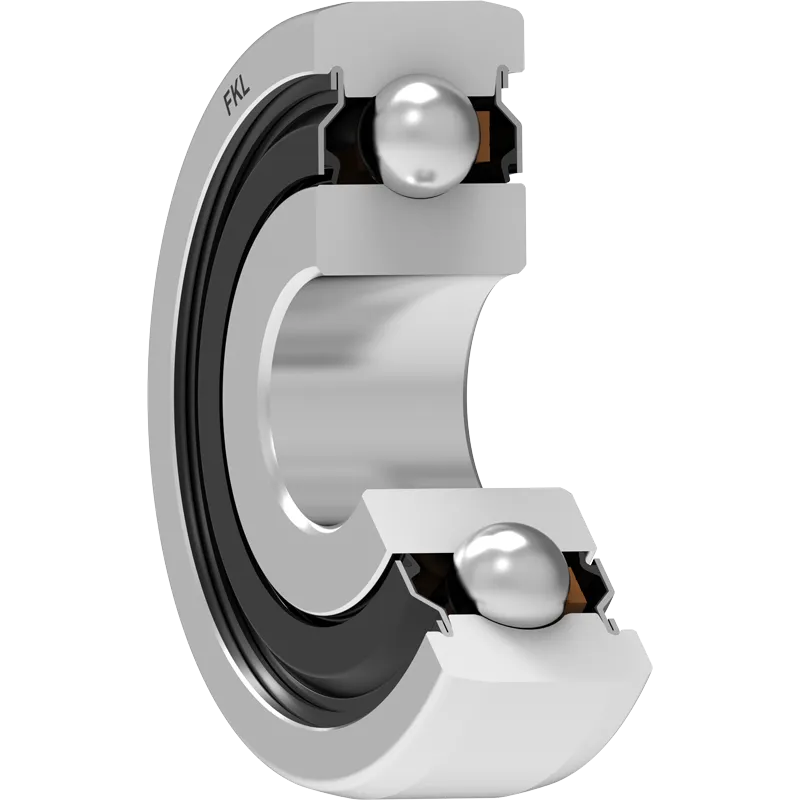

S SEAL / S SEAL (2S)
Single lip seal with the labyrinth between the sheet part and
the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much
better protection against the rough impurity particles. This
is very good sealing system: the sheet part protects the seal
from the soil, dust and rough particles. At the same time
makes the labyrinth with the rubber part. The rubber part
provides contact sealing which prevents penetration of finer
impurities, water, moisture, steam etc. Suitable for neutral
conditions because of the presence of the foreign materials.
It is used with the Y bearing (standard) and deep groove ball
bearings.
Cross references
| INA |
203KRR.AH03 |
| JOHN DEERE |
JD8646 |
| NTN |
SC0274LL2A |
| NTN |
SX0360LL/L014 |
| NEW HOLLAND |
165484 |
| TIMKEN |
203RR3 |
| JOHN DEERE |
AE74534 |
| NEW HOLLAND |
80535663 |
| CASE |
667925R91 |
| CASE |
50184 |
| FAFNIR |
203KRR3 |
| PEER |
203KRR3 |
| INA |
203KRR |
