203KPP.NZ

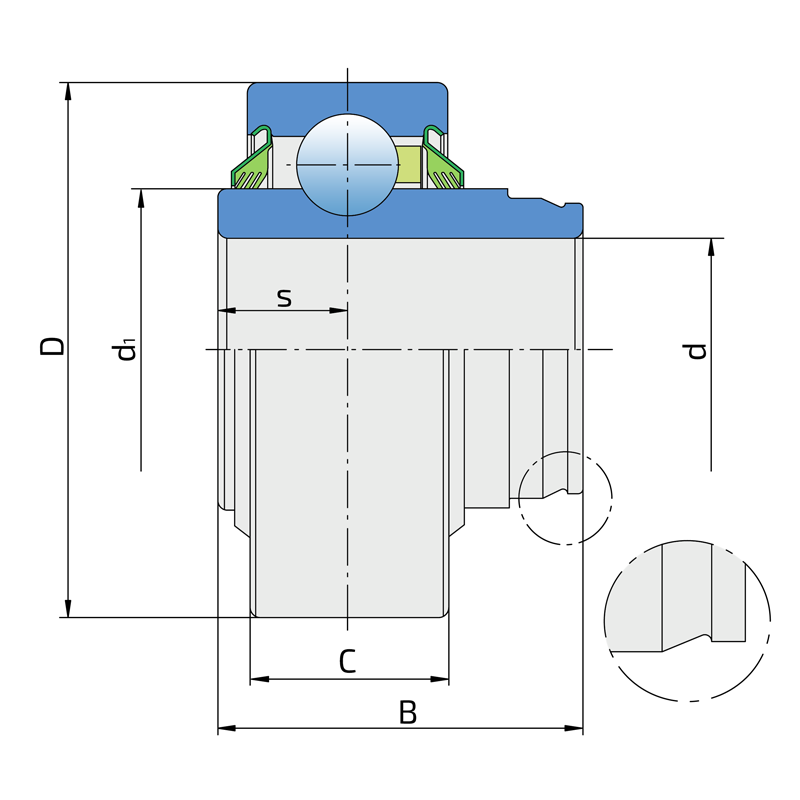

Technical specifications
| d |
Bore diameter |
16.26 mm |
| d1 |
Outer diameter inner ring |
24.2 mm |
| D |
Outside diameter |
40 mm |
| B |
Width inner ring |
25.4 mm |
| C |
Width outer ring |
12 mm |
| kg |
Mass |
0.092 kg |
| Cdyn |
Dynamic load rating |
9.5 kN |
| Co |
Static load rating |
4.75 kN |
| Pu |
Fatigue load limit |
0.2 kN |
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
Cross references
| RBF |
203KRR.NZ |
| KUHN |
K3611390 |
| RBF |
PN 00117 |
