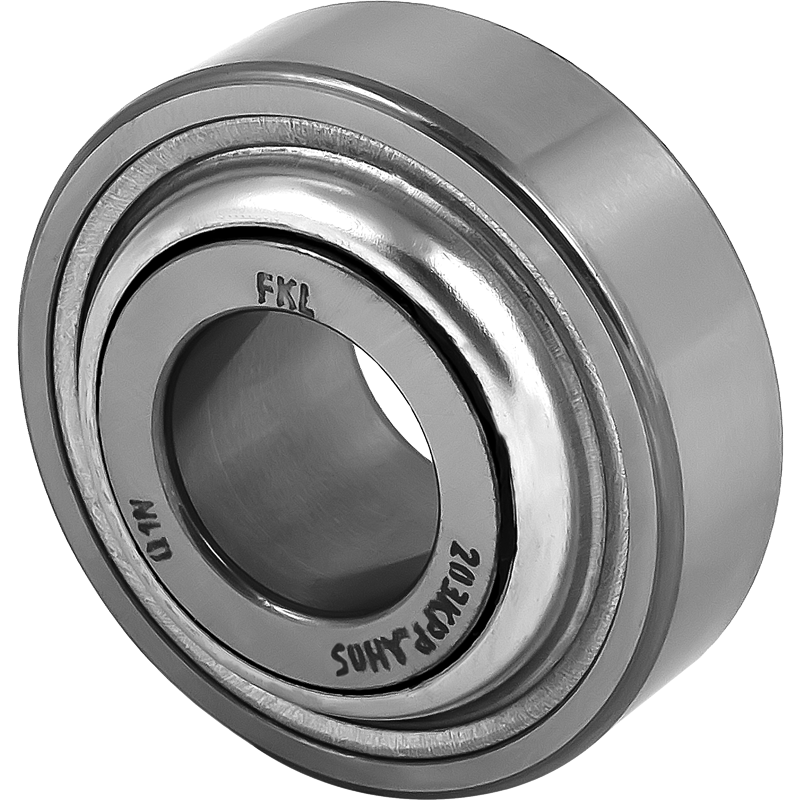

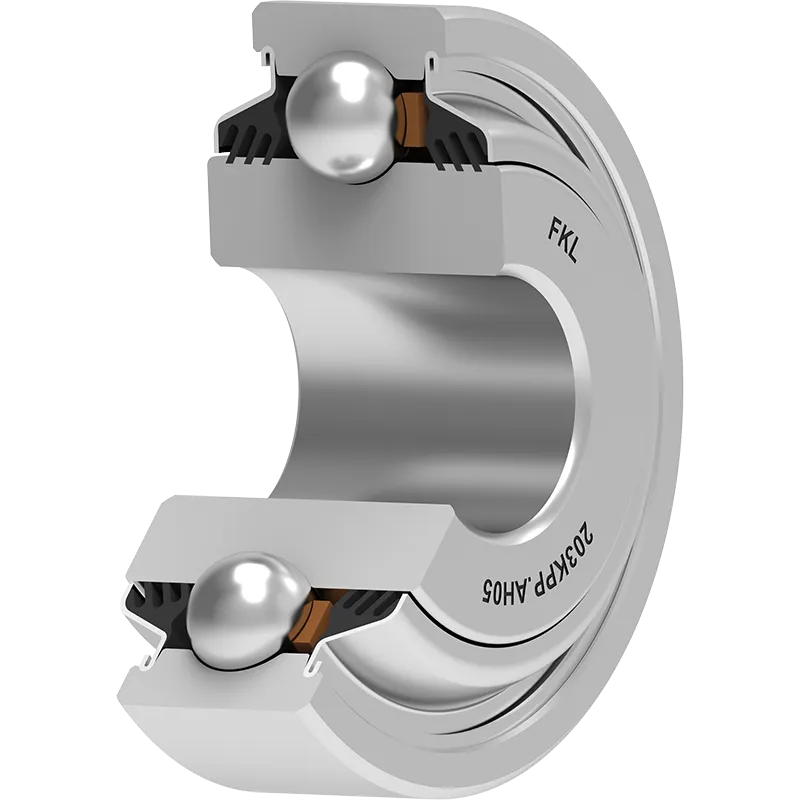

203KPP.AH05

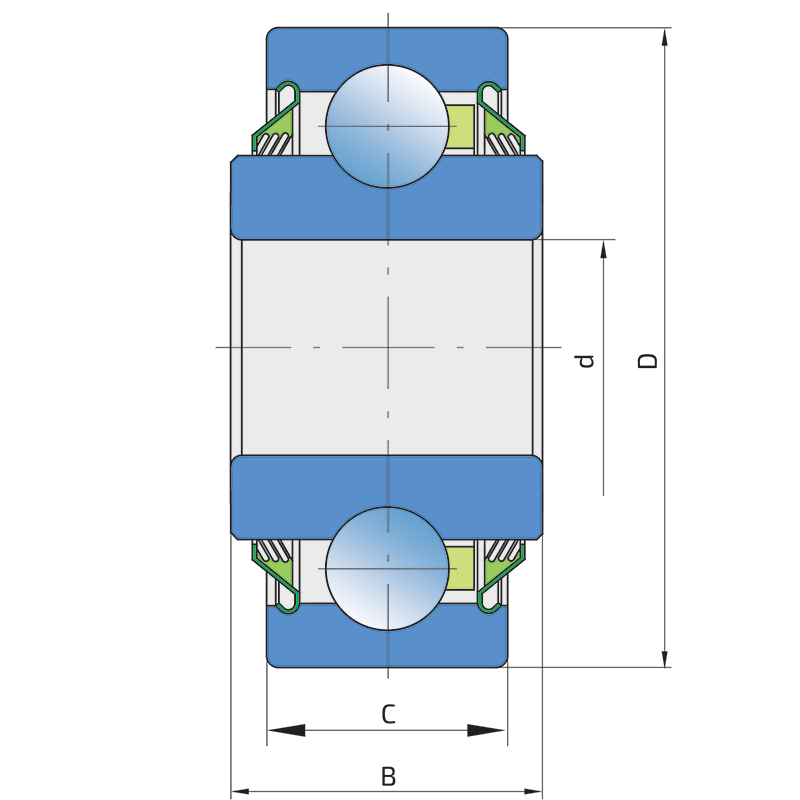

Technical specifications
| D |
Outside diameter |
40 mm |
| d |
Bore diameter |
13 mm |
| B |
Width inner ring |
18.29 mm |
| C |
D-shape hole cut out dimension |
12 mm |
| kg |
Mass |
0.09 kg |
| Cdyn |
Dynamic load rating |
9.5 kN |
| Co |
Static load rating |
4.75 kN |
| Pu |
Fatigue load limit |
0.2 kN |

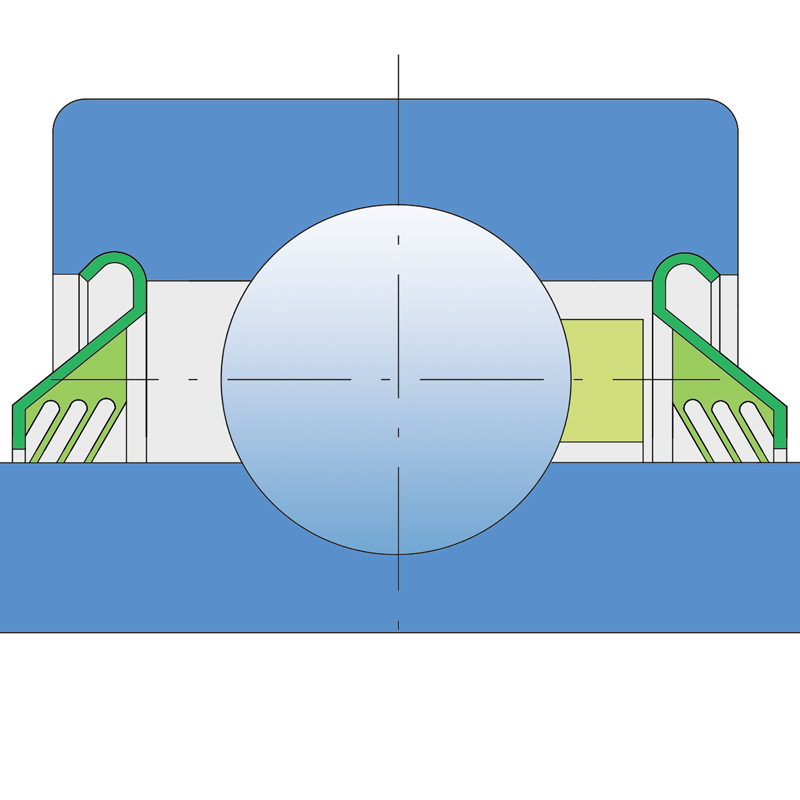

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
Cross references
| LEMKEN |
3198702 |
| FAFNIR |
203KRR5 |
| AMCO |
562134 |
| JOHN DEERE |
JD9295 |
| CASE |
107095C91 |
| CASE |
611928R91 |
| BCA |
203RRAR8 |
| NTN |
SX0153LCS13PX1 |
| TIMKEN |
203KRR5 |
| LEMKEN |
3198563 |
| JOHN DEERE |
JD10008 |
Installations
| LEMKEN |
SOLITAIR |
| LEMKEN |
SAPHIR |
