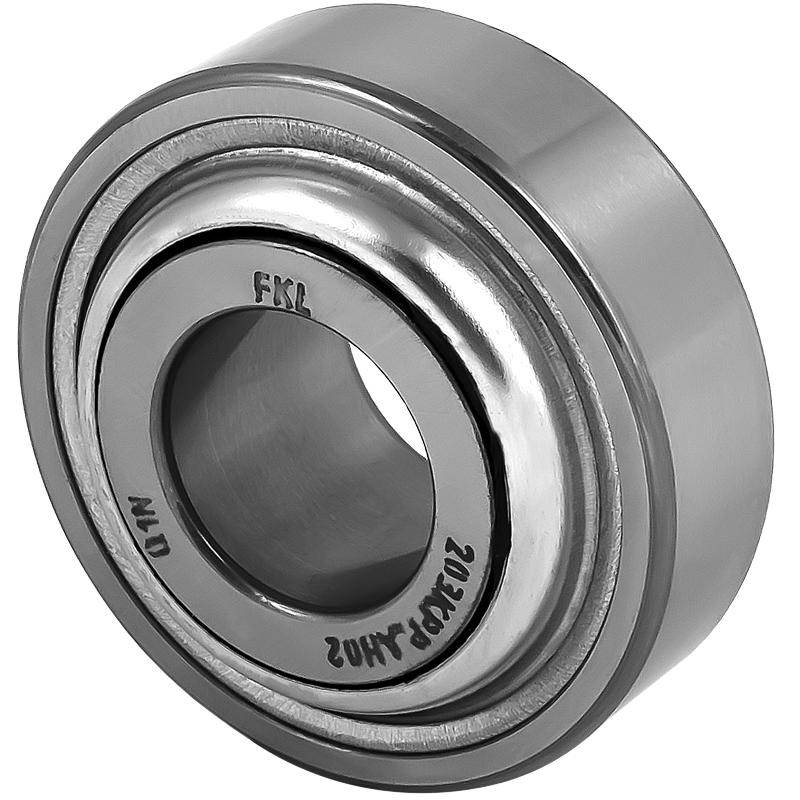

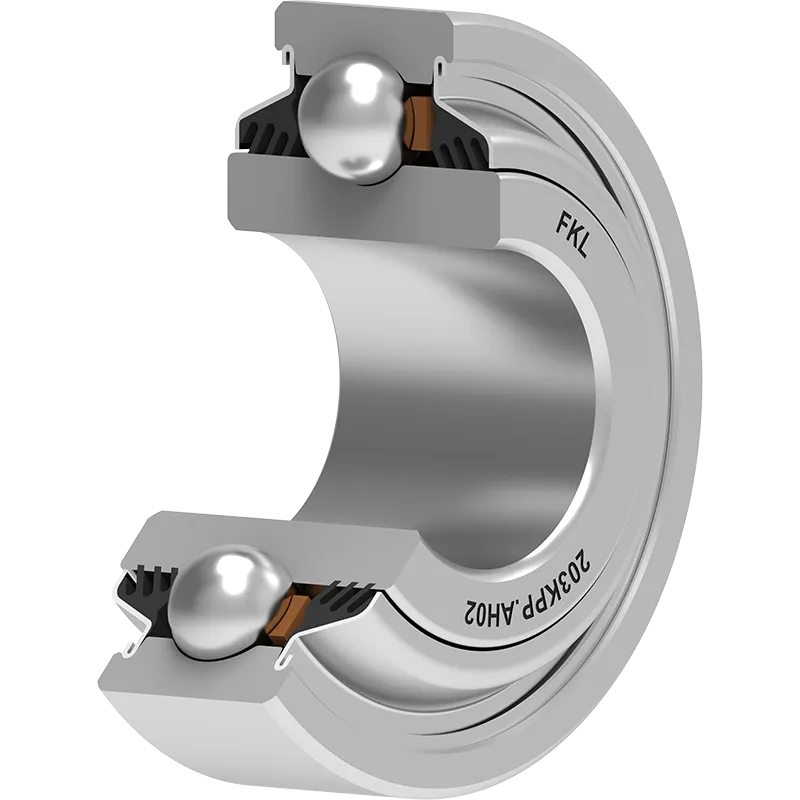

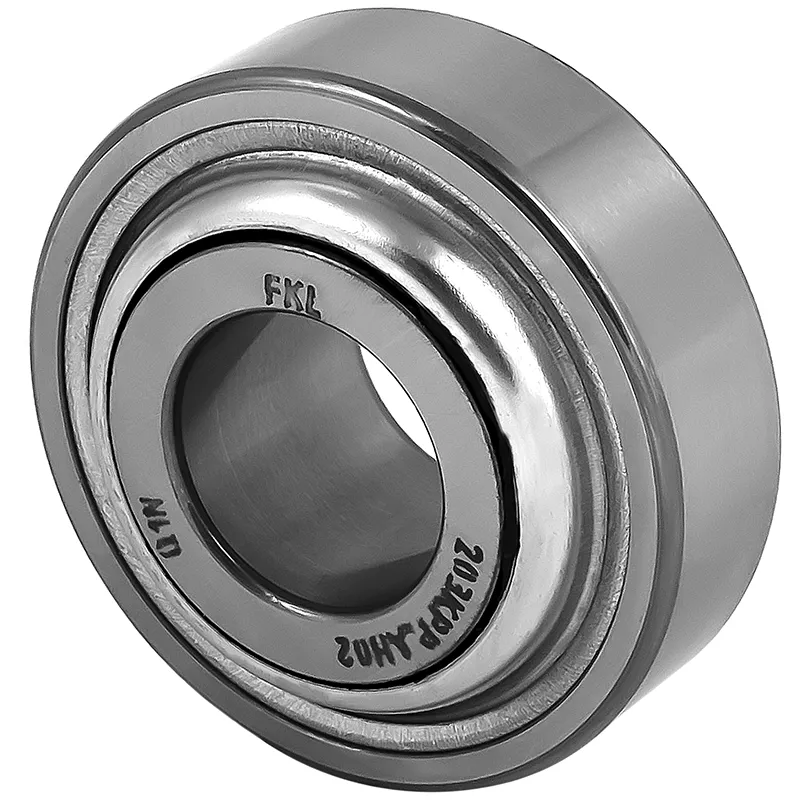

203KPP.AH02
Technical specifications

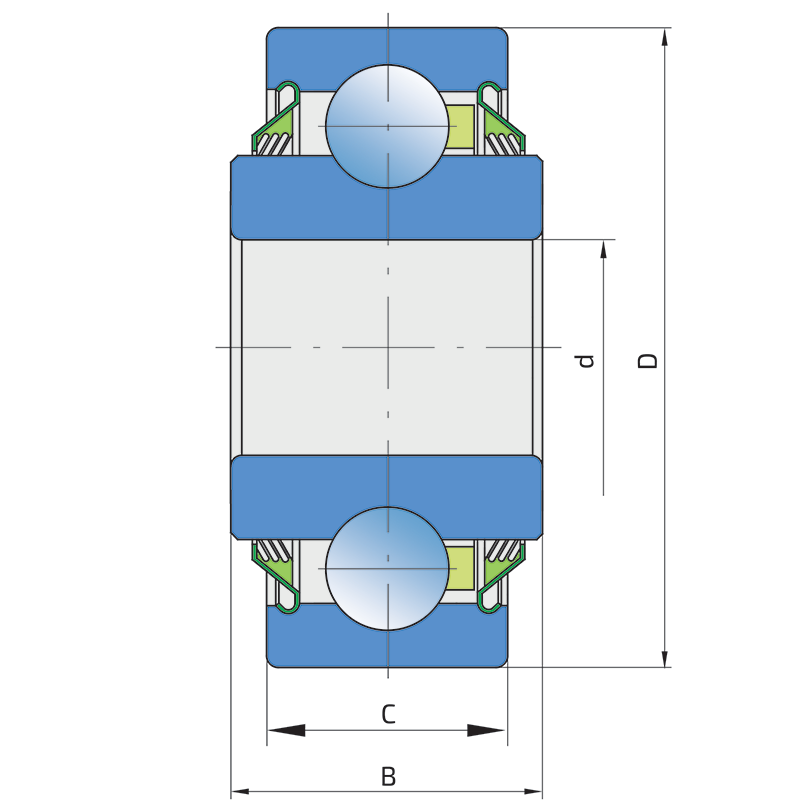

| d | Bore diameter | 16.26 mm |
| D | Outside diameter | 40 mm |
| B | Width inner ring | 18.29 mm |
| C | D-shape hole cut out dimension | 12 mm |
| kg | Mass | 0.07 kg |
| Cdyn | Dynamic load rating | 9.5 kN |
| Co | Static load rating | 4.75 kN |
| Pu | Fatigue load limit | 0.2 kN |

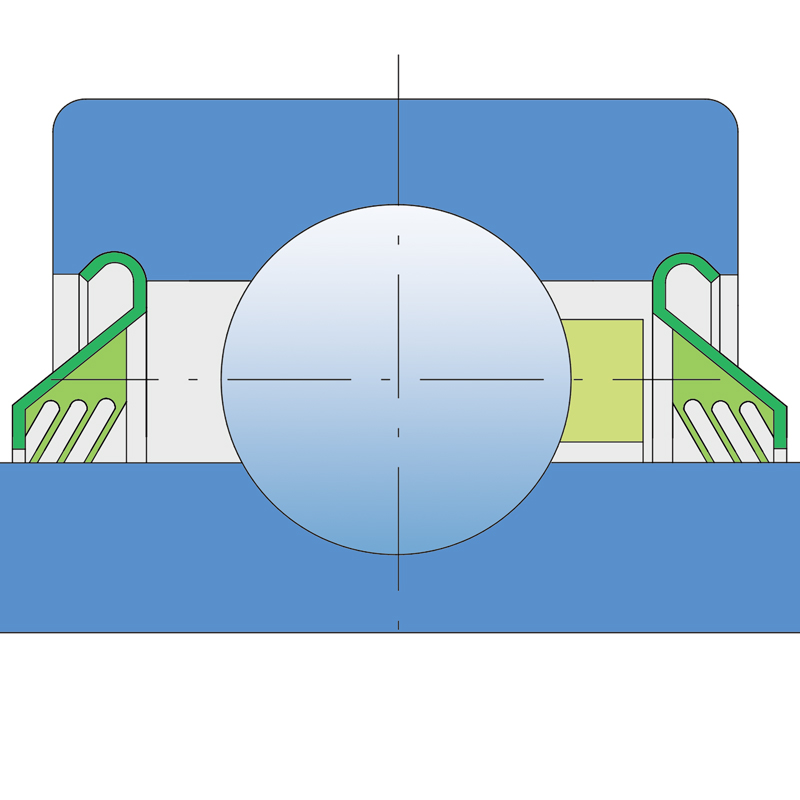

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
