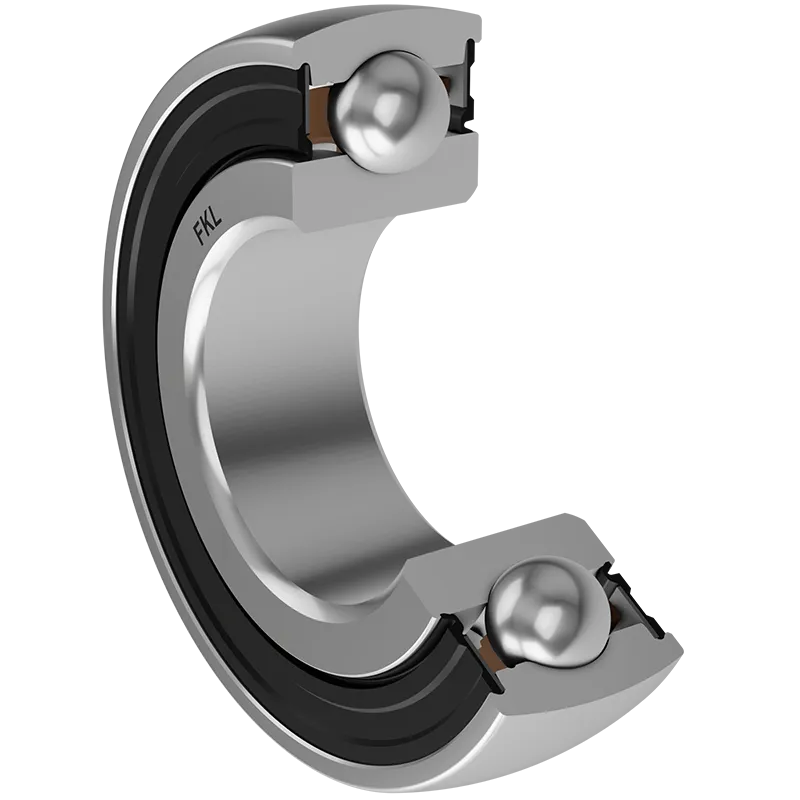

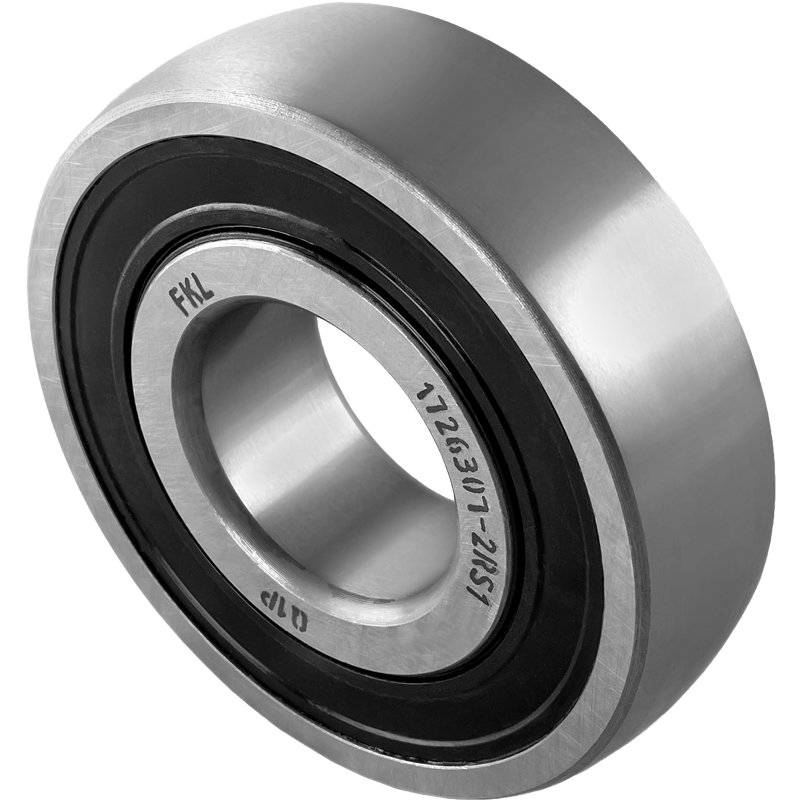

1726307 2RS1

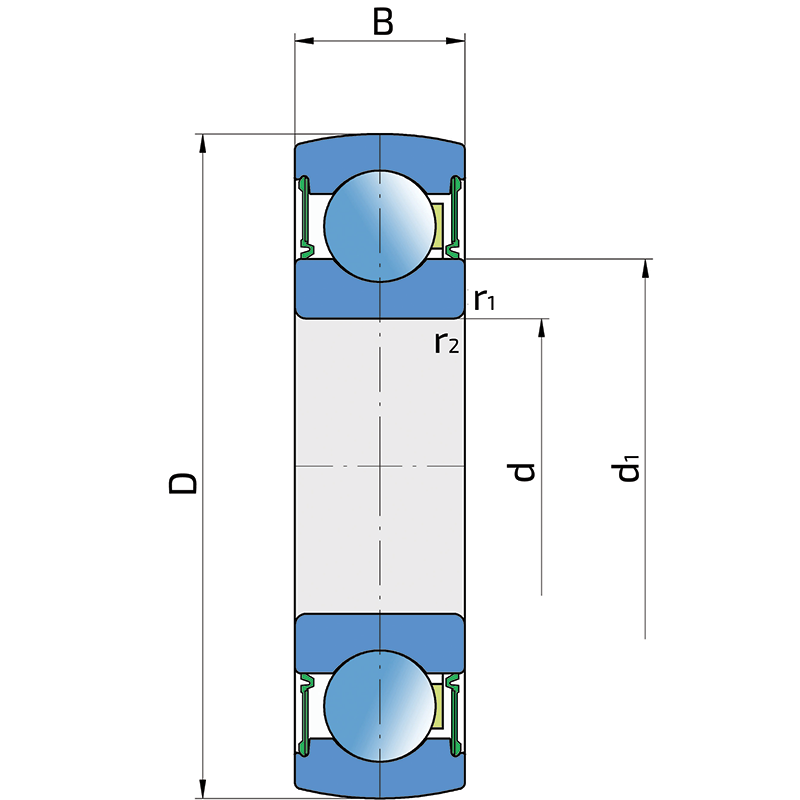

Technical specifications
| d |
Bore diameter |
35 mm |
| D |
Outside diameter |
80 mm |
| B |
Width inner ring |
21 mm |
| d1 |
Outer diameter inner ring |
49.5 mm |
| r1,2 |
Inner ring Chamfer dimension |
1.5 mm |
| Cdyn |
Dynamic load rating |
33.2 kN |
| Co |
Static load rating |
19 kN |
| Pu |
Fatigue load limit |
0.82 kN |
| kg |
Mass |
0.4 kg |

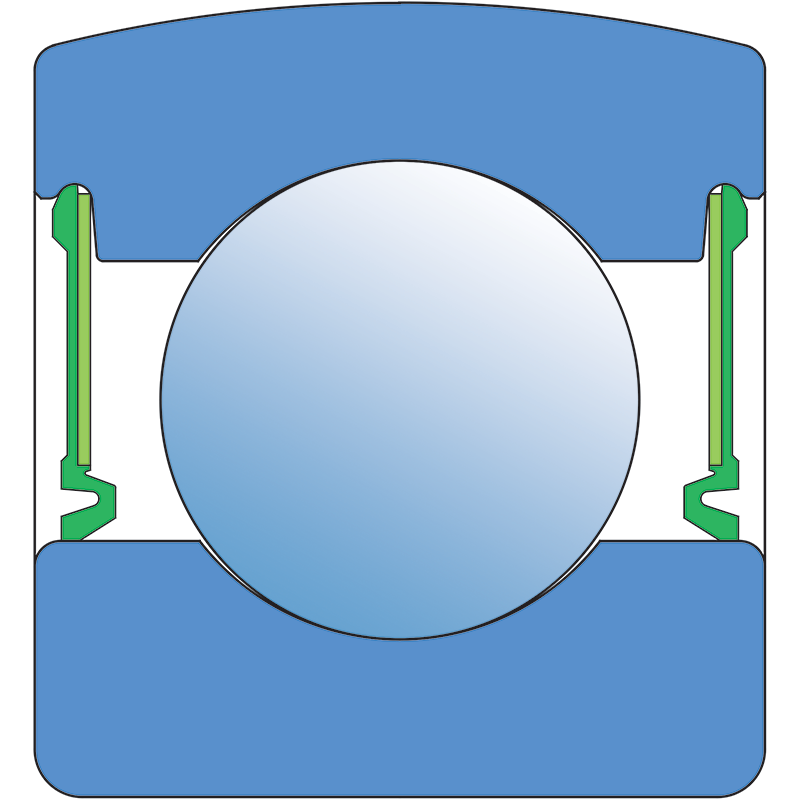

RS SEAL / RS SEAL (2RS)
The older type of the single seal. Prevents penetration of soil,
dust and water and since exposed to the impact of abrasive
particles is expendable more than some new types of seals.
Due to extended friction, the permitted speeds are lower. It
was gradually replaced with the improved versions of S. Because of the traditional reasons Y bearings with this kind of
seal do not have the additional sealing mark. It is used with
the Y-bearings and deep groove ball bearings.
Cross references
| NTN |
CS307LLU |
| NSK |
CS307DDU |
| SKF |
1726307-2RS1 |
| FAG |
76307-2RS |
| SNR |
6307SEE |
| RHP |
1726307-2RS |
