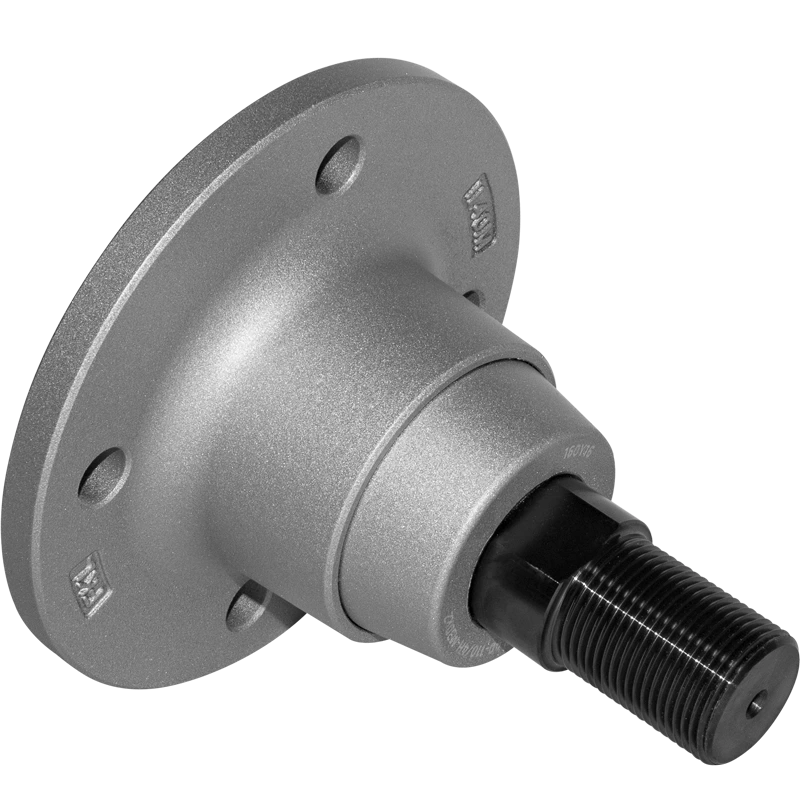

IL40-110/4H-M30x2

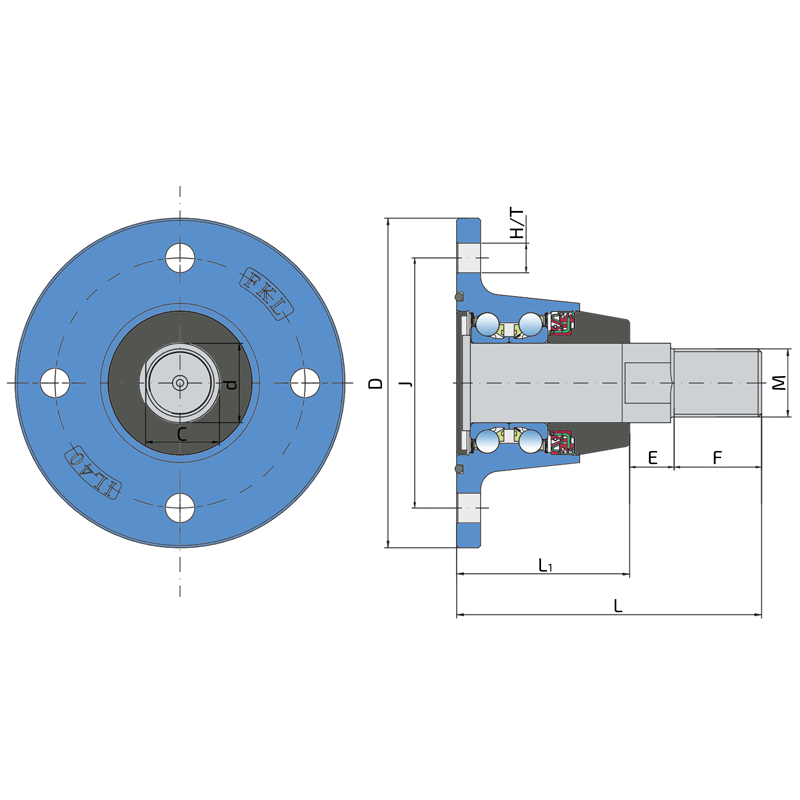

Technical specifications
| J | Pitch circle diameter | 110 mm |
| D | Outside diameter | 145 mm |
| H/T | Hole/Thread | 4x13 mm |
| d | Shaft diameter | 34.9 mm |
| C | D-shape hole cut out dimension | 32.4 mm |
| M | Outher Thread | M30x2 mm |
| L | Total length | 134 mm |
| L1 | Total flange length | 76 mm |
| E | Length of D shape | 20 mm |
| F | Length of threaded part | 38 mm |
| kg | Mass | 3.2 kg |
| Cdyn | Dynamic load rating | 42.9 kN |
| Co | Static load rating | 36.3 kN |
| Pu | Fatigue load limit | 1.53 kN |

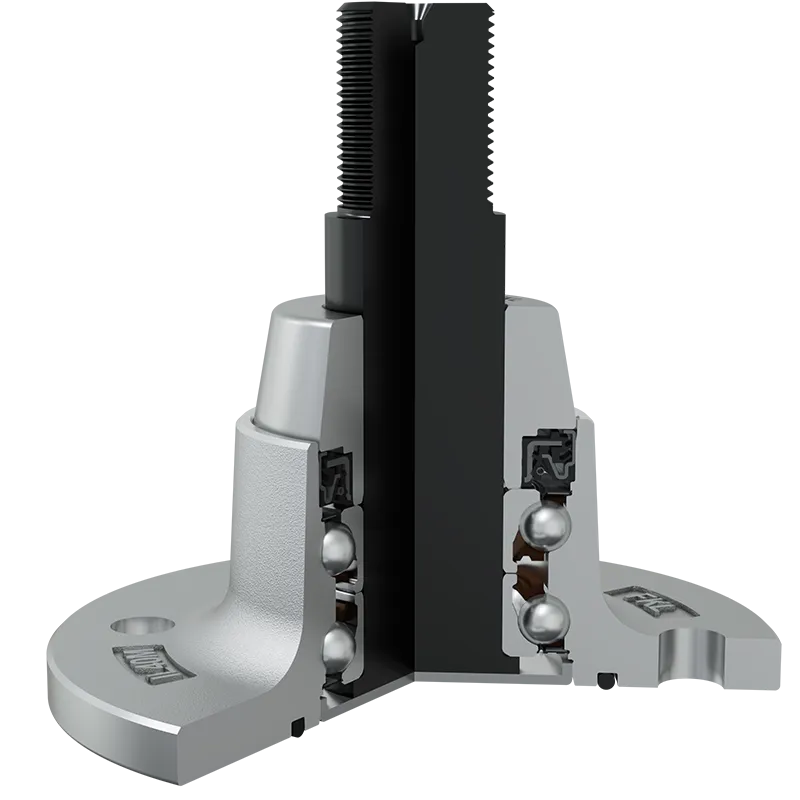

O-RING+SHEET METAL SHIELD+RS SEAL / RS SEAL+DIRTBLOCK SEAL+FORGED COVER PLATE
O-ring, Sheet metal shield and RS seal on the base side and RS seal, Dirtblock seal with Forged cover plate on the front side which is exposed to contaminants.
O-ring, Sheet metal shield and RS seal together with attached disc eliminates the possibility of contamination from the base side.
Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage.
This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.
Cross references
| POTTINGER | 9776.02.140.0 |
| POTTINGER | 9776.02.140.1 |
| ЗМС-ТЕХНОЛОДЖИ ООО | IL40-110/4H-M30x2 |
Installations
| POTTINGER | TERRIA 5040 |
| POTTINGER | TERRADISC 8001 T TYPE 9740 |
| POTTINGER | TERRADISC 10001 T TYPE 9741 |
| POTTINGER | TERRADISC 3001 TYPE 9771 |
| POTTINGER | TERRADISC 3501 TYPE 9772 |
| POTTINGER | TERRADISC 4001 TYPE 9773 |
| POTTINGER | TERRADISC 4001 K/T TYPE 9774 |
| POTTINGER | TERRADISC 5001 K/T TYPE 9775 |
| POTTINGER | TERRADISC 6001 K/T TYPE 9776 |
| POTTINGER | TERRIA 4040 |
